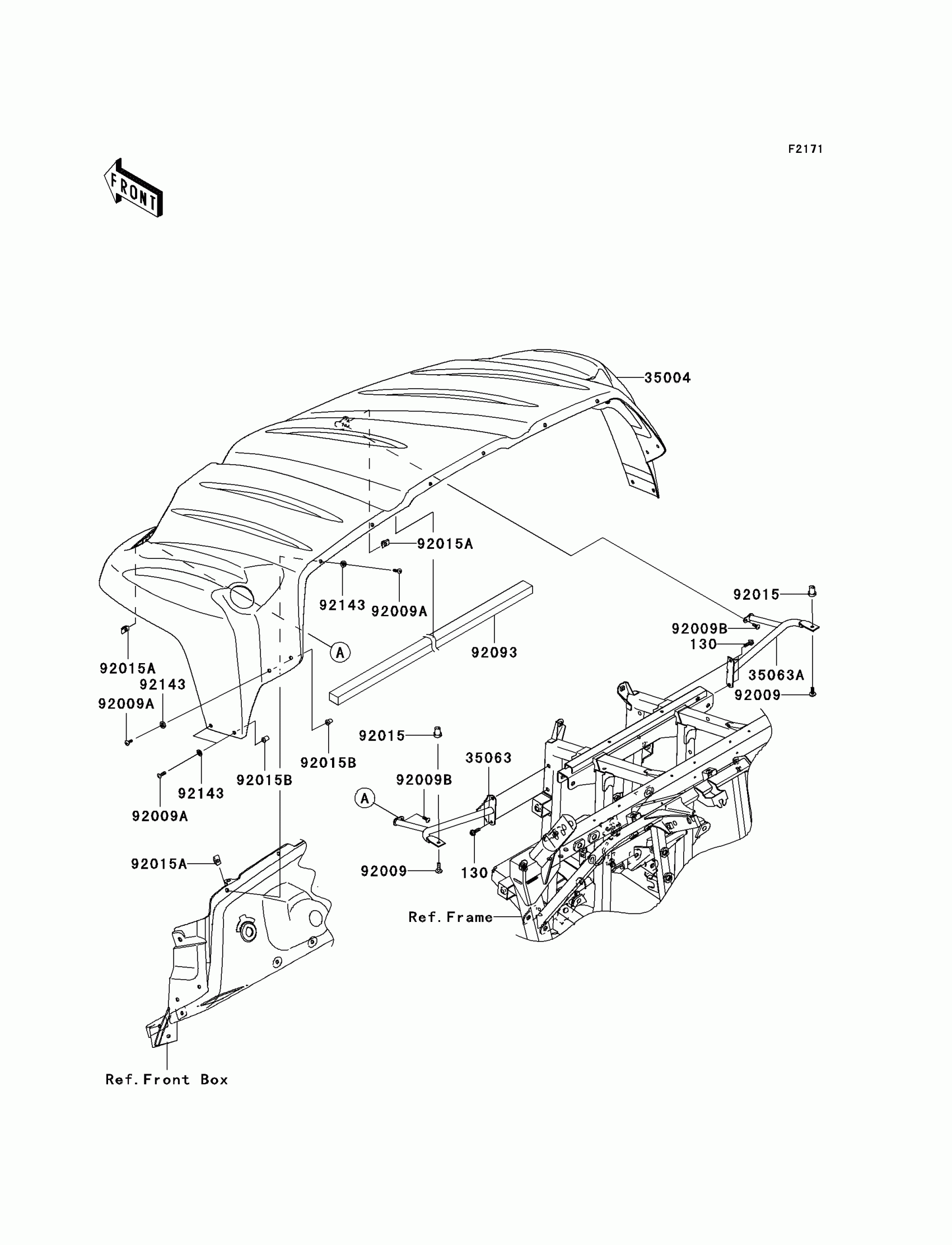

Kawasaki Teryx® 750 4x4 LE Front Fender(s) Diagram

Description

Price

130

BOLT-FLANGED,6X20

130CA0620

$1.22

35004

FENDER-FRONT,C.H.GREEN

35004-0077-826

$769.04

35063

STAY,FRONT FENDER,LH

35063-0420

$84.06

35063A

STAY,FRONT FENDER,RH

35063-0421

$84.06

92009

SCREW,6X22,BLACK

92009-1256

$1.96

92009A

SCREW,5X20,BLACK

92009-1656

$3.03

92009B

SCREW,5X16

92009-3797

$1.89

92015

NUT,RUBBER,6MM

92015-1692

$5.61

92015A

NUT,5MM

92015-1710

$4.67

92015B

NUT,WELL,5MM

92015-1757

$5.58

92093

SEAL

92093-0141

$35.93

92143

COLLAR

92143-1087

$2.98
