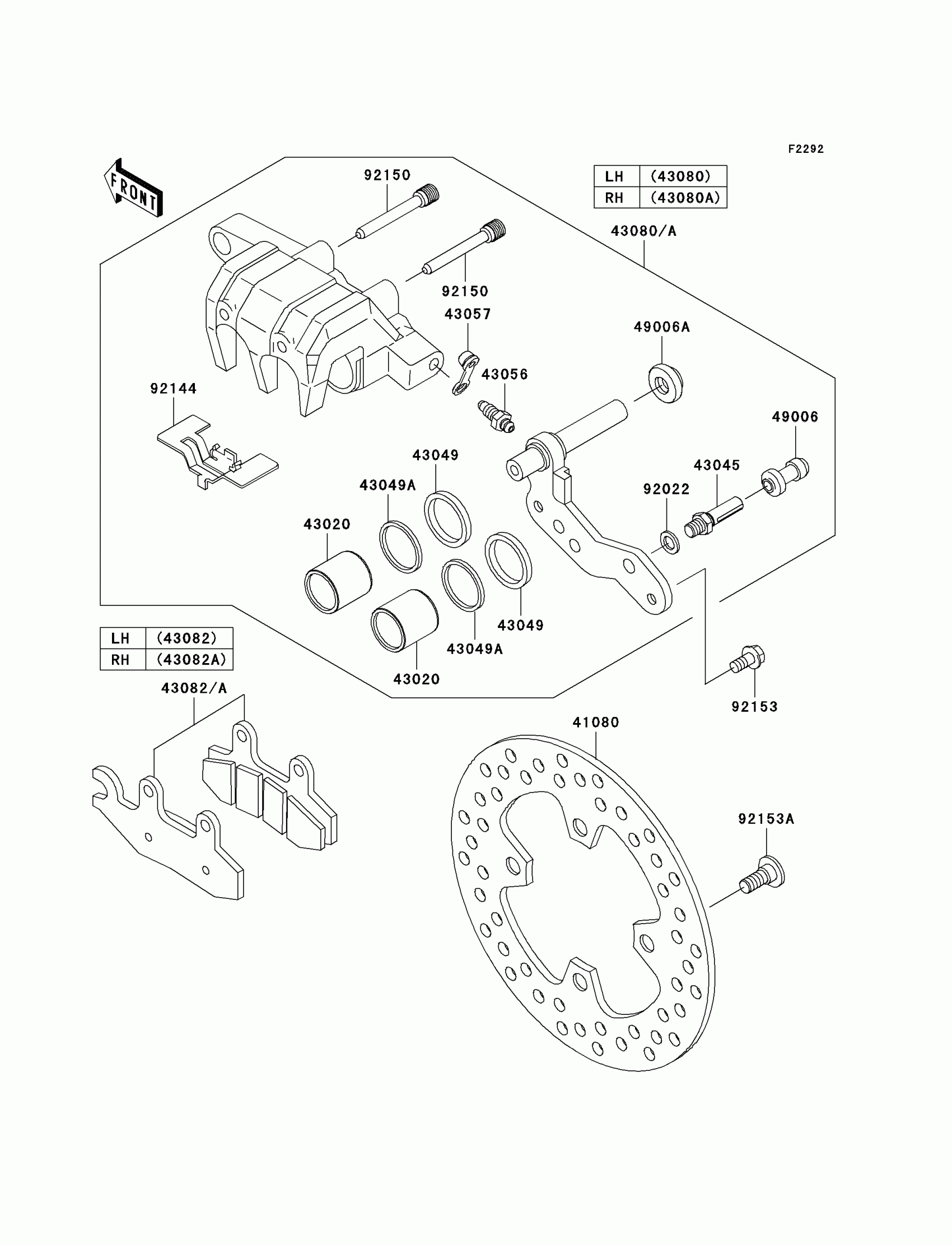

Kawasaki Teryx® 750 4x4 LE Front Brake Diagram

Description

Price

41080

DISC,FR

41080-0156

Unavailable

43020

PISTON-COMP-BRAKE

43020-0009

$53.00

43045

SHAFT-CALIPER

43045-1010

$19.49

43049

PACKING

43049-1063

$6.13

43049A

PACKING

43049-1064

$4.64

43056

BREATHER

43056-1055

Unavailable

43057

CAP-BREATHER

43057-1001

$3.73

43080

CALIPER-SUB-ASSY,FR,LH,SILVER

43080-0060-GN

$438.51

43080A

CALIPER-SUB-ASSY,FR,RH,SILVER

43080-0061-GN

$425.98

43082

PAD-ASSY-BRAKE,LH

43082-0069

$37.61

43082A

PAD-ASSY-BRAKE,RH

43082-0082

$32.25

49006

BOOT,CALIPER

49006-1088

$8.83

49006A

BOOT,CALIPER

49006-1242

$4.14

92022

WASHER,WAVE

92022-1373

$3.53

92144

SPRING,PAD

92144-1319

$7.63

92150

BOLT

92150-1144

$7.54

92153

BOLT,FLANGED,8X16

92153-1995

$3.66

92153A

BOLT,SOCKET,8X20

92153-1996

Unavailable
