Description

Price

130

BOLT-FLANGED,8X25

130BB0825

$3.39

130A

BOLT-FLANGED,10X25

130BB1025

$4.63

550

PIN-COTTER,3.0X25

550AA3025

$0.59

39114

SHAFT-COMP-STRG

39114-0011

$341.80

39190

SHAFT-ASSY-STEERING

39190-0004

$248.09

39191

GEAR-ASSY-STEERING

39191-0011

Unavailable

92015

NUT,LOCK,10MM,BLACK

92015-1189

$5.61

92015A

NUT,LOCK,FLANGED,12MM

92015-1433

$6.75

92015B

NUT,POP,6MM,L=15

92015-1791

$3.57

92015C

NUT,POP,6MM,L=16.5

92015-1792

$3.57

92015D

NUT,POP,8MM,L=16.5

92015-1793

$3.81

92022

WASHER

92022-1831

$4.18

92093

SEAL,STEERING SHAFT

92093-0070

$2.64

92154

BOLT,FLANGED,12X60

92154-0072

$7.80

92154A

BOLT,FLANGED,12X27

92154-0073

$9.24

92161

DAMPER,STEERING GEAR

92161-0506

$9.24

92171

CLAMP,STEERING GEAR

92171-1866

$10.41

92200

WASHER,12.3X38X2.0

92200-0379

$4.31

92200A

WASHER,15X25X1.6

92200-0460

$3.27

92210

NUT,POP,10MM

92210-0352

$3.66

92210A

NUT,CASTLE,12MM

92210-0395

$2.95

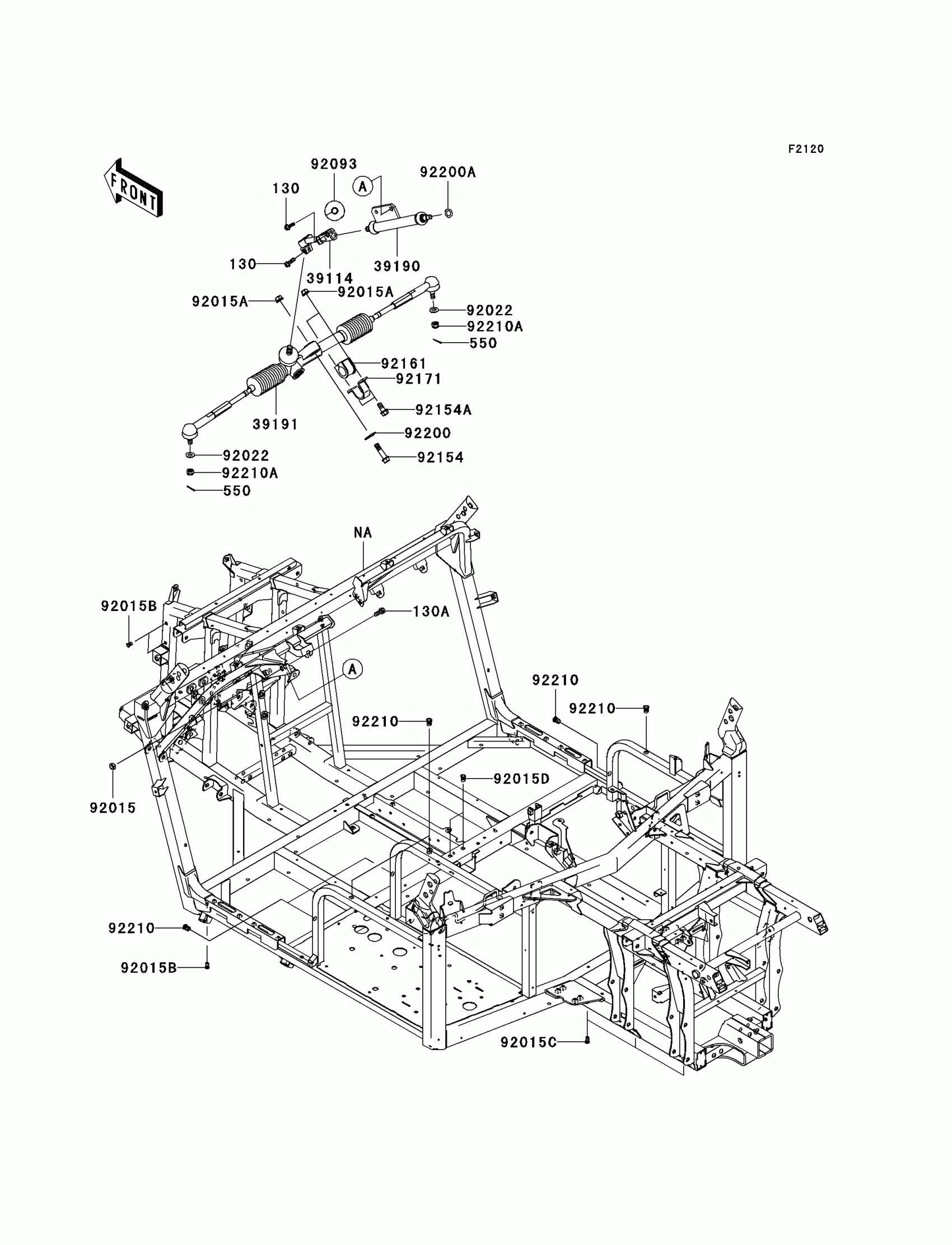

Kawasaki Teryx® 750 4x4 LE Frame Diagram
