Drive Shaft-Rear

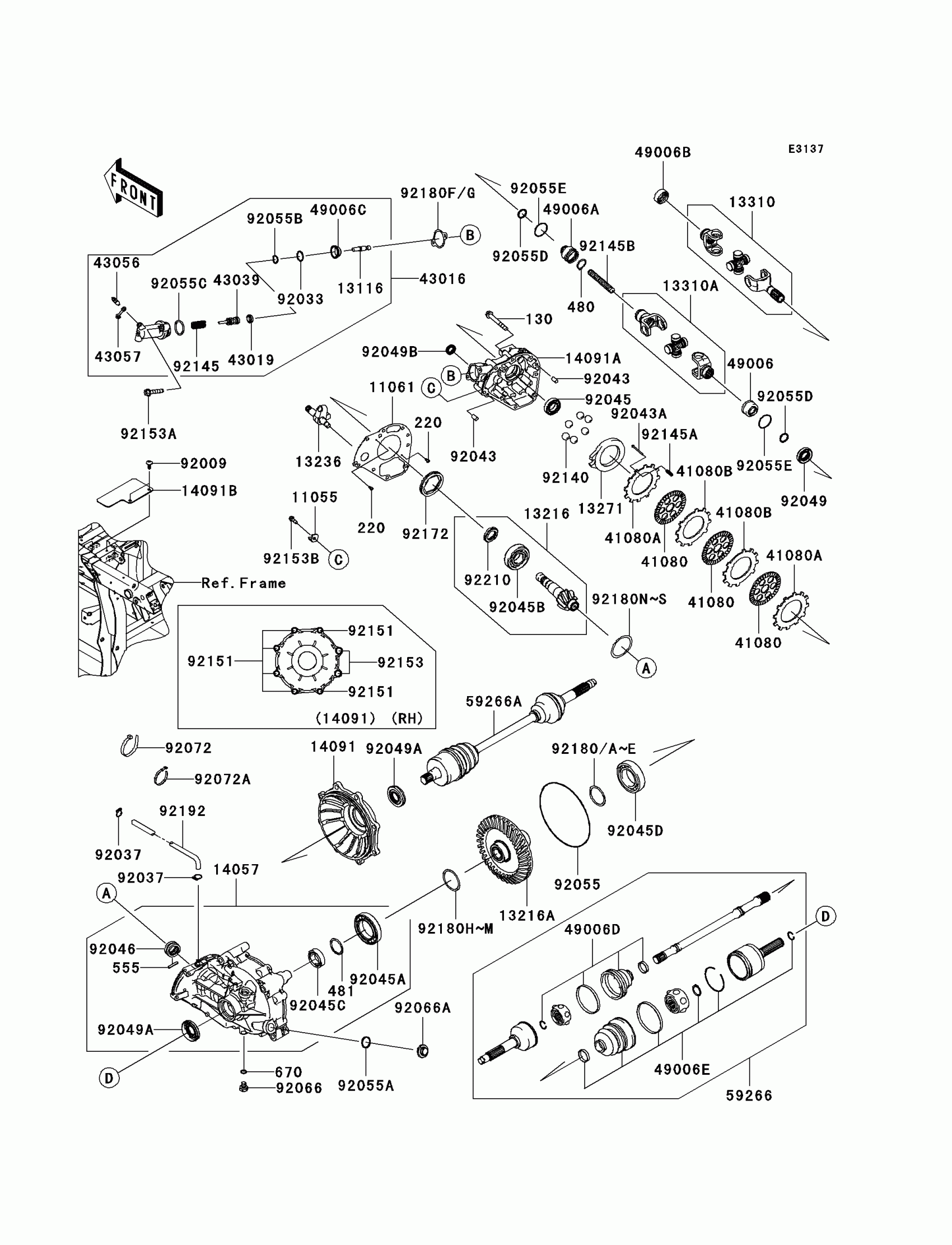

Kawasaki Teryx® 750 4x4 LE Drive Shaft-Rear Diagram
#
11055
BRACKET
11055-0372
$3.08
11061
GASKET,FR COVER
11061-0270
$31.86
13116
ROD-PUSH
13116-0026
$37.85
13216
GEAR-COMP,8T
13216-0025
$205.75
13216A
GEAR-COMP,35T
13216-0026
$318.56
13236
LEVER-COMP
13236-0126
$125.82
13271
PLATE,CAM
13271-0539
Unavailable
13310
SHAFT-ASSY,ENG SIDE
13310-0018
$243.82
13310A
SHAFT-ASSY,GEAR ASSY SIDE
13310-0019
Unavailable
14057
CASE-COMP-GEAR
14057-0003
$265.35
14091
COVER,RH
14091-0677
$133.34
14091A
COVER,FR
14091-0678
$174.56
14091B
COVER
14091-0998
$17.63
41080
DISC,FRICTION
41080-1482
$49.80
41080A
DISC,PRESSURE
41080-1483
$18.80
41080B
DISC,SEPARATER
41080-1484
$18.80
43016
CYLINDER-MASTER
43016-0041
Unavailable
43019
CUP-BRAKE
43019-0002
$5.60
43039
PISTON-BRAKE
43039-0006
$41.96
43056
BREATHER-BRAKE
43056-0005
$17.76
43057
CAP-BREATHER
43057-1001
$4.91
49006
BOOT
49006-0008
$4.10
49006A
BOOT
49006-0010
$16.70
49006B
BOOT
49006-0021
$17.92
49006C
BOOT
49006-0072
$10.21
49006D
BOOT,BJ
49006-0084
$101.08
49006E
BOOT,DOJ
49006-0085
$101.08
59266
JOINT-BALL,LH
59266-0018
$697.90
59266A
JOINT-BALL,RH
59266-0019
$697.90
92009
SCREW,TAPPING,6X16
92009-1166
$5.52
92033
RING-SNAP
92033-0055
$3.87
92037
CLAMP-HOSE
92037-1104
$1.45
92043
PIN,8X14
92043-1567
$2.26
92043A
PIN,3X35
92043-1617
$2.41
92045
BEARING-BALL,#6005
92045-0077
Unavailable
92045A
BEARING-BALL,55X90X18
92045-0078
Unavailable
92045B
BEARING-BALL,BX30-1C3 UR3
92045-0099
Unavailable
92045C
BEARING-BALL,60/28
92045-0111
Unavailable
92045D
BEARING-BALL,6210CM
92045-1213
$55.61
92046
BEARING-NEEDLE,AH502802
92046-0024
$27.86
92049
SEAL-OIL,HTGY 24X45X9.5
92049-0028
$11.95
92049A
SEAL-OIL,28X60X7
92049-0089
$16.97
92049B
SEAL-OIL,TC17X28X6
92049-1537
$11.81
92055
RING-O,190.2X4.2
92055-0121
$20.37
92055A
RING-O
92055-0122
$3.90
92055B
RING-O
92055-0146
$5.65
92055C
RING-O
92055-0147
$7.75
92055D
RING-O,18X24X3
92055-1633
$6.18
92055E
RING-O,30X35X2.5
92055-1693
$6.18
92066
PLUG,DRAIN,10X12
92066-0085
$4.05
92066A
PLUG
92066-1303
$12.96
92072
BAND,L=218
92072-032
$5.00
92072A
BAND,L=186
92072-056
$5.00
92140
BALL,D/O#12
92140-1064
$2.39
92145
SPRING
92145-0583
$17.63
92145A
SPRING,RR BRAKE
92145-1301
$1.84
92145B
SPRING,PROPELLER SHAFT
92145-1304
$3.23
92151
BOLT,10X35
92151-1909
$3.26
92153
BOLT,12X35
92153-0311
$4.18
92153A
BOLT,FLANGED,8X40
92153-1727
$7.82
92153B
BOLT,FLANGED-SMALL,6X16
92153-1729
$2.15
92172
SCREW,SET,75X10
92172-0371
$46.79
92180
SHIM,50.2X60X1.2
92180-0243
Unavailable
92180A
SHIM,50.2X60X1.0
92180-0244
Unavailable
92180B
SHIM,50.2X60X0.8
92180-0245
Unavailable
92180C
SHIM,50.2X60X0.5
92180-0246
Unavailable
92180D
SHIM,50.2X60X0.2
92180-0247
Unavailable
92180E
SHIM,50.2X60X0.15
92180-0248
Unavailable
92180F
SHIM,T=1.0
92180-0250
Unavailable
92180G
SHIM,T=0.5
92180-0251
Unavailable
92180H
SHIM,55X64X0.15
92180-1417
Unavailable
92180I
SHIM,55X64X0.20
92180-1418
Unavailable
92180J
SHIM,55X64X0.50
92180-1419
Unavailable
92180K
SHIM,55X64X0.80
92180-1420
Unavailable
92180L
SHIM,55X64X1.00
92180-1421
Unavailable
92180M
SHIM,55X64X1.20
92180-1422
Unavailable
92180N
SHIM,60X72X0.15
92180-1423
Unavailable
92180O
SHIM,60X72X0.20
92180-1424
Unavailable
92180P
SHIM,60X72X0.50
92180-1425
Unavailable
92180Q
SHIM,60X72X0.80
92180-1426
Unavailable
130
BOLT-FLANGED,8X60
130CD0860
$4.04
220
SCREW-PAN-CROS,4X8
220AA0408
$0.68
480
CIRCLIP-TYPE-C,25MM
480J2500
$2.03
481
CIRCLIP-TYPE-C,52MM
481J5200
$4.96
555
PIN-SPRING
555A0428
$2.30
670
O RING,10MM
670B2010
$1.50
92180R
SHIM,60X72X1.00
92180-1427
Unavailable
92180S
SHIM,60X72X1.20
92180-1428
Unavailable
92192
TUBE,7X12X1113
92192-0558
$19.66
92210
NUT,30MM
92210-1294
$40.82
