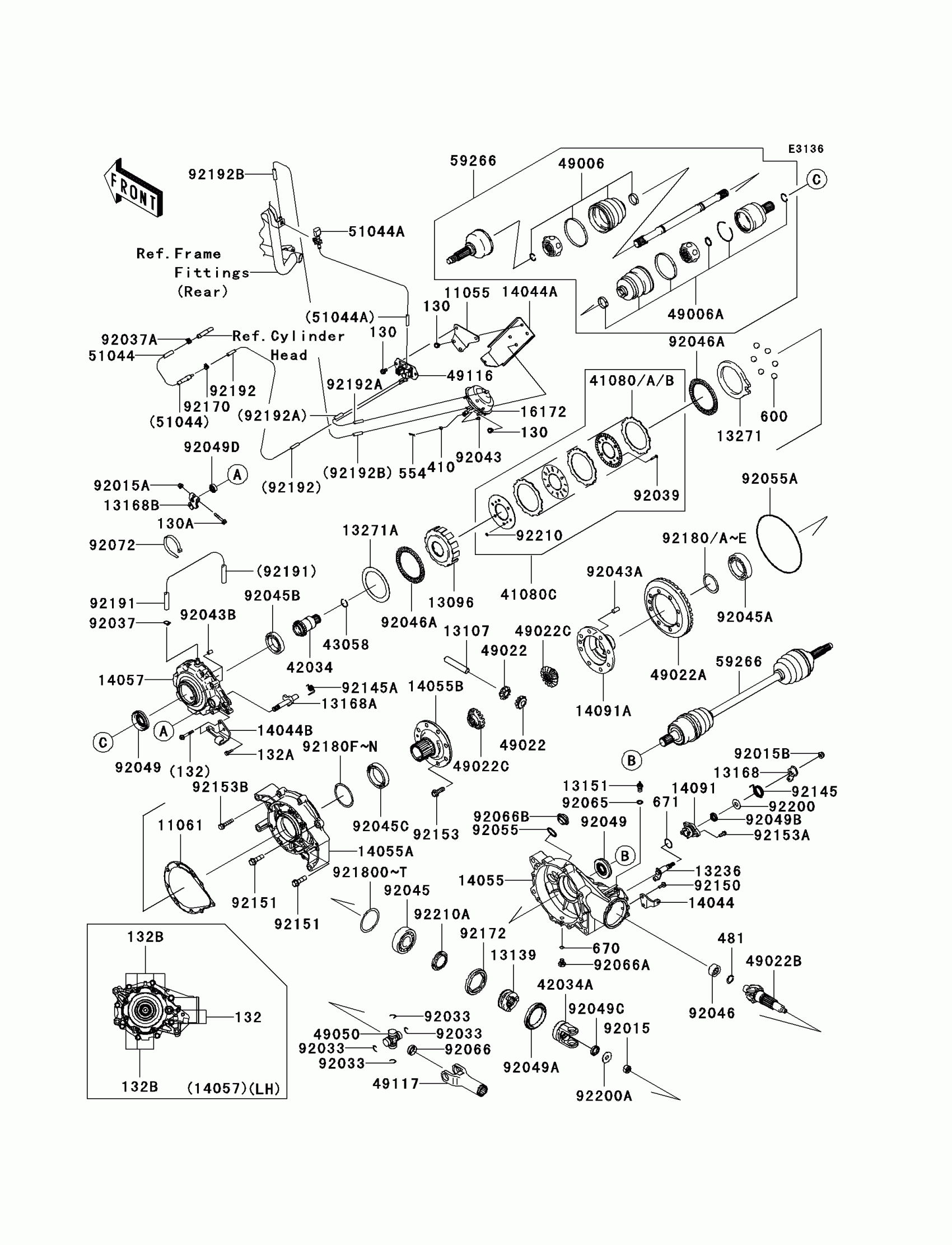

Kawasaki Teryx® 750 4x4 LE Drive Shaft-Front Diagram

#

Description
Price

11055

BRACKET

11055-0422

$4.92

11061

GASKET,LH CASE

11061-0272

$33.98

13096

HOUSING-CLUTCH

13096-0018

$49.34

13107

SHAFT,CROSS

13107-0149

$22.71

13139

SHIFTER,2/4WD ACTUATOR

13139-0015

$110.23

13151

SWITCH-COMP,NEUTRAL

13151-1080

$7.87

13168

LEVER,OUTER

13168-0139

$30.47

13168A

LEVER,DIFF-LOCK,INNER

13168-0141

$45.70

13168B

LEVER,DIFF-LOCK

13168-0173

$20.80

13236

LEVER-COMP,INNER

13236-0164

$41.61

13271

PLATE,CAM

13271-1497

Unavailable

13271A

PLATE,DISC

13271-1503

$14.56

14044

HOLDER-CABLE

14044-0029

$49.98

14044A

HOLDER-CABLE

14044-0033

Unavailable

14044B

HOLDER-CABLE,DIFF-LOCK

14044-0036

$33.98

14055

CASE-GEAR,RH

14055-0024

$165.74

14055A

CASE-GEAR,MDL

14055-0025

Unavailable

14055B

CASE-GEAR,CROSS

14055-0033

$195.07

14057

CASE-COMP-GEAR,LH

14057-0005

Unavailable

14091

COVER

14091-0680

$40.03

14091A

COVER,CROSS CASE

14091-0867

$167.22

16172

ACTUATOR

16172-0014

$282.30

41080

DISC,T=1.20

41080-1499

Unavailable

41080A

DISC,T=1.80

41080-1500

Unavailable

41080B

DISC,T=2.40

41080-1501

Unavailable

41080C

DISC ASSY,DIFFERENTIAL LOCK

41080-1512

Unavailable

42034

COUPLING

42034-0043

Unavailable

42034A

COUPLING

42034-0049

Unavailable

43058

RING

43058-0018

$1.82

49006

BOOT,UJ

49006-0082

$104.96

49006A

BOOT,DOJ

49006-0083

$104.96

49022

GEAR-BEVEL,10T

49022-0018

Unavailable

49022A

GEAR-BEVEL,35T

49022-0030

$451.61

49022B

GEAR-BEVEL,8T

49022-0032

$451.61

49022C

GEAR-BEVEL,16T

49022-0047

$165.50

49050

SPIDER

49050-1075

$73.15

49116

VALVE-ASSY

49116-0024

$110.38

49117

YOKE,14T

49117-0005

$129.25

51044

TUBE-ASSY

51044-0053

$67.33

51044A

TUBE-ASSY,BREATHER

51044-0056

$33.67

59266

JOINT-BALL

59266-0028

$702.01

92015

NUT,LOCK,12MM,BLACK

92015-1190

$7.25

92015A

NUT,LOCK,FLANGED,6MM

92015-1339

$1.04

92015B

NUT,8MM

92015-1432

$4.93

92033

RING-SNAP

92033-1030

$3.15

92037

CLAMP-HOSE

92037-1104

$1.09

92037A

CLAMP,TUBE

92037-1461

$2.93

92039

RIVET,DISC

92039-1258

$2.71

92043

PIN

92043-0121

$7.95

92043A

PIN,10X20

92043-0142

$3.51

92043B

PIN,6.2X8X14

92043-1263

$0.46

92045

BEARING-BALL,6306A6

92045-0068

$30.08

92045A

BEARING-BALL,#6009

92045-1015

$35.46

92045B

BEARING-BALL,16007

92045-1230

$30.70

92045C

BEARING-BALL,6910

92045-1394

$51.15

92046

BEARING-NEEDLE,AJ501907

92046-0025

$36.38

92046A

BEARING-NEEDLE,AK1116

92046-1286

$55.99

92049

SEAL-OIL,SDD7 25X57X7 HS

92049-0029

$9.08

92049A

SEAL-OIL,55X77X9

92049-0090

$12.09

92049B

SEAL-OIL,TC14245

92049-1520

$10.54

92049C

SEAL-OIL,KICK PEDAL

92049-1523

$10.17

92049D

SEAL-OIL,TC 12X22X7

92049-1550

$3.81

92055

RING-O

92055-0122

$2.98

92055A

RING-O,169.3X3.1

92055-0123

$13.54

92065

GASKET,10.5X16X1

92065-058

$3.03

92066

PLUG

92066-0027

$7.56

92066A

PLUG,DRAIN,10X12

92066-0085

$3.64

92066B

PLUG

92066-1303

$9.85

92072

BAND,L=218

92072-032

$3.81

92145

SPRING,RETURN

92145-0445

$5.12

92145A

SPRING,DIFF-LOCK LEVER

92145-0525

$3.06

92150

BOLT,FLANGED,6X16

92150-1394

$3.59

92151

BOLT,10X35

92151-1909

$2.63

92153

BOLT,FLANGED,10X30

92153-1728

$3.14

92153A

BOLT,FLANGED-SMALL,6X16

92153-1729

$1.81

92153B

BOLT,8X40

92153-1730

$3.14

92170

CLAMP

92170-2042

$1.00

92172

SCREW,SET,75X10

92172-0371

$47.69

92180

SHIM,45.3X57X0.8

92180-0259

Unavailable

92180A

SHIM,45.3X57X0.15

92180-0260

Unavailable

130

BOLT-FLANGED,6X14

130BA0614

$0.97

130A

BOLT-FLANGED,6X35

130BA0635

$0.78

132

BOLT-FLANGED-SMALL,6X40

132BB0640

$4.25

132A

BOLT-FLANGED-SMALL,6X18

132BD0618

$2.97

132B

BOLT-FLANGED-SMALL,6X35

132BD0635

$3.14

410

WASHER-PLAIN-SMALL,4MM

410AA0400

$0.48

481

CIRCLIP-TYPE-C,32MM

481J3200

$1.82

554

PIN-SNAP

554DA0400

$3.20

600

BALL-STEEL,11/32"

600A1100

$0.60

670

O RING,10MM

670B2010

$1.13

671

O RING,25MM

671B2525

$3.81

92180B

SHIM,45.3X57X0.2

92180-0261

Unavailable

92180C

SHIM,45.3X57X1.2

92180-0262

Unavailable

92180D

SHIM,T=1.0

92180-1205

Unavailable

92180E

SHIM,T=0.5

92180-1207

Unavailable

92180F

SHIM,62X71X0.15

92180-1390

Unavailable

92180G

SHIM,62X71X0.20

92180-1391

Unavailable

92180H

SHIM,62X71X0.50

92180-1392

Unavailable

92180I

SHIM,62X71X0.70

92180-1393

Unavailable

92180J

SHIM,62X71X0.80

92180-1394

Unavailable

92180K

SHIM,62X71X0.90

92180-1395

Unavailable

92180L

SHIM,62X71X1.00

92180-1396

Unavailable

92180M

SHIM,62X71X1.10

92180-1397

Unavailable

92180N

SHIM,62X71X1.20

92180-1398

Unavailable

92180O

SHIM,60X72X0.15

92180-1423

Unavailable

92180P

SHIM,60X72X0.20

92180-1424

Unavailable

92180Q

SHIM,60X72X0.50

92180-1425

Unavailable

92180R

SHIM,60X72X0.80

92180-1426

Unavailable

92180S

SHIM,60X72X1.00

92180-1427

Unavailable

92180T

SHIM,60X72X1.20

92180-1428

Unavailable

92191

TUBE,BREATHER

92191-1638

$10.17

92192

TUBE,3X7X350

92192-0622

$5.12

92192A

TUBE,3X7X100

92192-0623

$3.64

92192B

TUBE,3X7X480

92192-0637

$7.90

92200

WASHER,11.8X29X1.2

92200-0335

$3.66

92200A

WASHER,12X32X2.5

92200-0336

$3.66

92210

NUT,DISC

92210-1255

$1.20

92210A

NUT,30MM

92210-1294

$41.60
