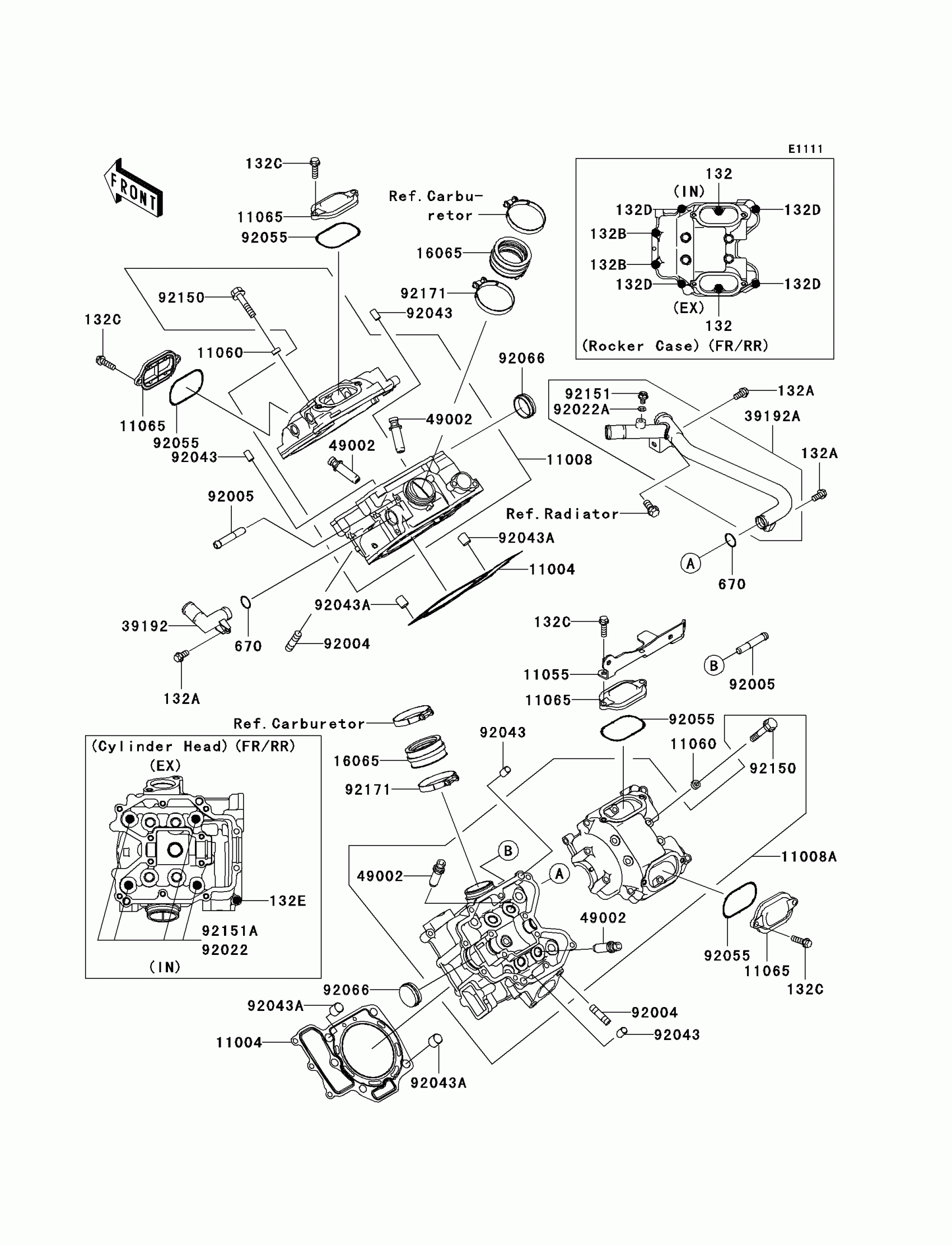

Kawasaki Teryx® 750 4x4 LE Cylinder Head Diagram

#

Description
Price

132

BOLT-FLANGED-SMALL,6X25

132BA0625

$2.80

132A

BOLT-FLANGED-SMALL,6X12

132BD0612

$2.06

132B

BOLT-FLANGED-SMALL,6X130

132BD06130

$4.11

132C

BOLT-FLANGED-SMALL,6X20

132BD0620

$4.12

132D

BOLT-FLANGED-SMALL,6X30

132BD0630

$3.67

132E

BOLT-FLANGED-SMALL,6X95

132BD0695

$6.54

670

O RING,16MM

670B2016

$1.36

11004

GASKET-HEAD

11004-0011

$29.14

11008

HEAD-COMP-CYLINDER,FR

11008-0021

Unavailable

11008A

HEAD-COMP-CYLINDER,RR

11008-0022

Unavailable

11055

BRACKET

11055-0500

Unavailable

11060

GASKET,6.2X12X0.3

11060-1994

$2.39

11065

CAP,ROCKER CASE

11065-1152

$24.91

16065

HOLDER-CARBURETOR

16065-0007

Unavailable

39192

PIPE-WATER,FR

39192-0074

$40.59

39192A

PIPE-WATER,RR

39192-0075

$94.92

49002

GUIDE-VALVE

49002-1097

Unavailable

92004

STUD,8X22

92004-1217

$5.65

92005

FITTING

92005-1264

$7.56

92022

WASHER,11.5X20.5X1.6

92022-1720

$4.31

92022A

WASHER,6.2X11X1

92022-304

$3.65

92043

PIN,6.2X8X14

92043-1263

$0.43

92043A

PIN,10.1X12X14

92043-4009

$6.22

92055

RING-O

92055-0112

$7.71

92066

PLUG

92066-1289

$14.36

92150

BOLT,6X55

92150-1302

$6.34

92151

BOLT,6X10

92151-1832

Unavailable

92151A

BOLT,FLANGED,10X150

92151-1917

$20.09

92171

CLAMP

92171-0722

$15.20
