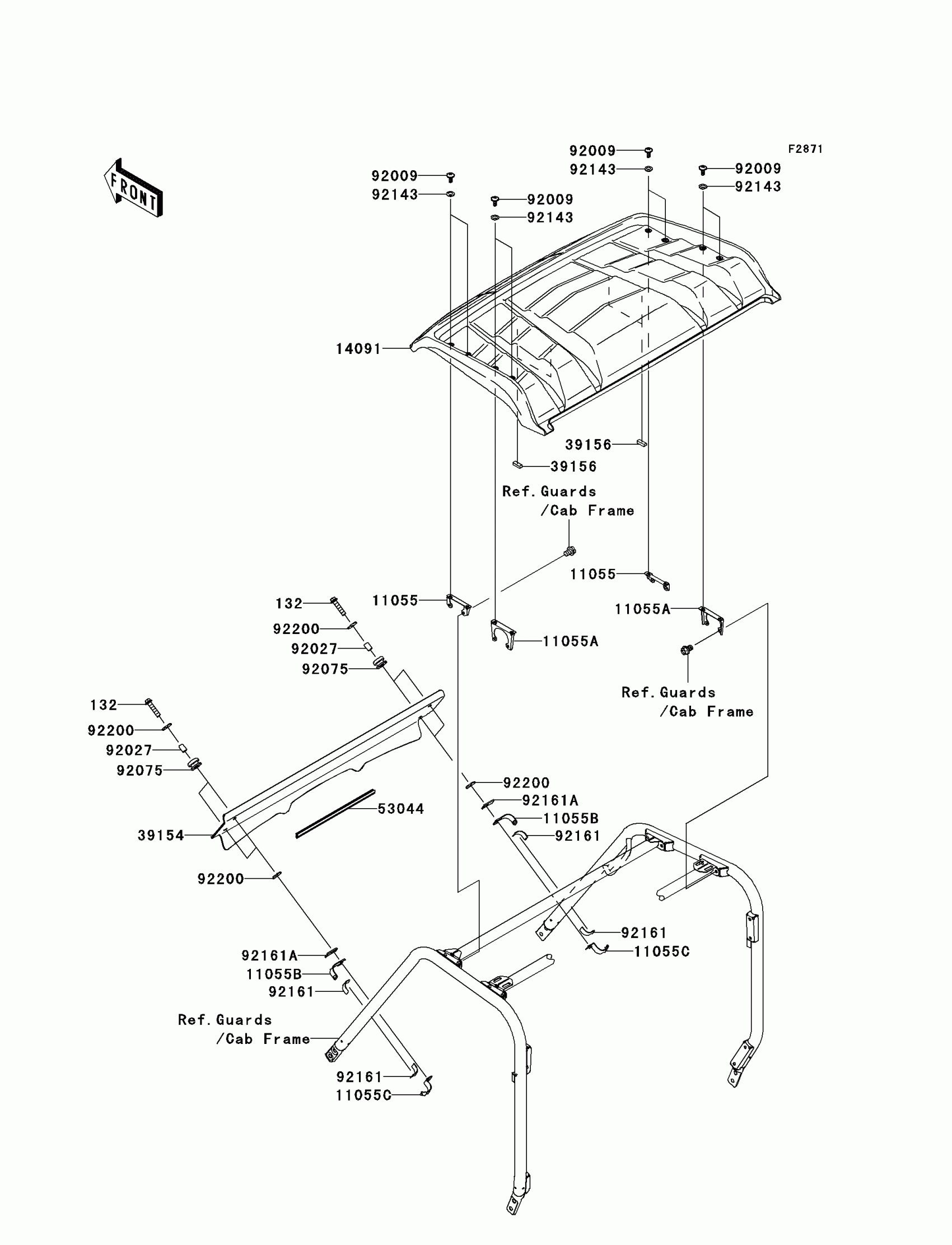

Kawasaki Teryx® 750 4x4 LE Cowling Diagram

Description

Price

132

BOLT-FLANGED-SMALL,6X35

132BB0635

$3.14

11055

BRACKET,SUN TOP,T.BLACK

11055-0156-388

$21.10

11055A

BRACKET,SUN TOP,T.BLACK

11055-0255-388

$21.10

11055B

BRACKET,WINDSHIELD

11055-0913

$2.00

11055C

BRACKET,WINDSHIELD

11055-0914

$7.34

14091

COVER,SUN TOP,F.BLACK

14091-1614-6Z

$296.46

39154

WINDSHIELD

39154-0043

$293.59

39156

PAD

39156-0479

$3.56

53044

TRIM,L=450

53044-0044

$11.93

92009

SCREW,6X16

92009-1621

Unavailable

92027

COLLAR,6.8X10X14.5

92027-156

$3.81

92075

DAMPER

92075-1787

$4.93

92143

COLLAR

92143-1087

$2.98

92161

DAMPER

92161-0644

$1.43

92161A

DAMPER

92161-0681

Unavailable

92200

WASHER,6.5X22X1.6

92200-1087

$3.01
