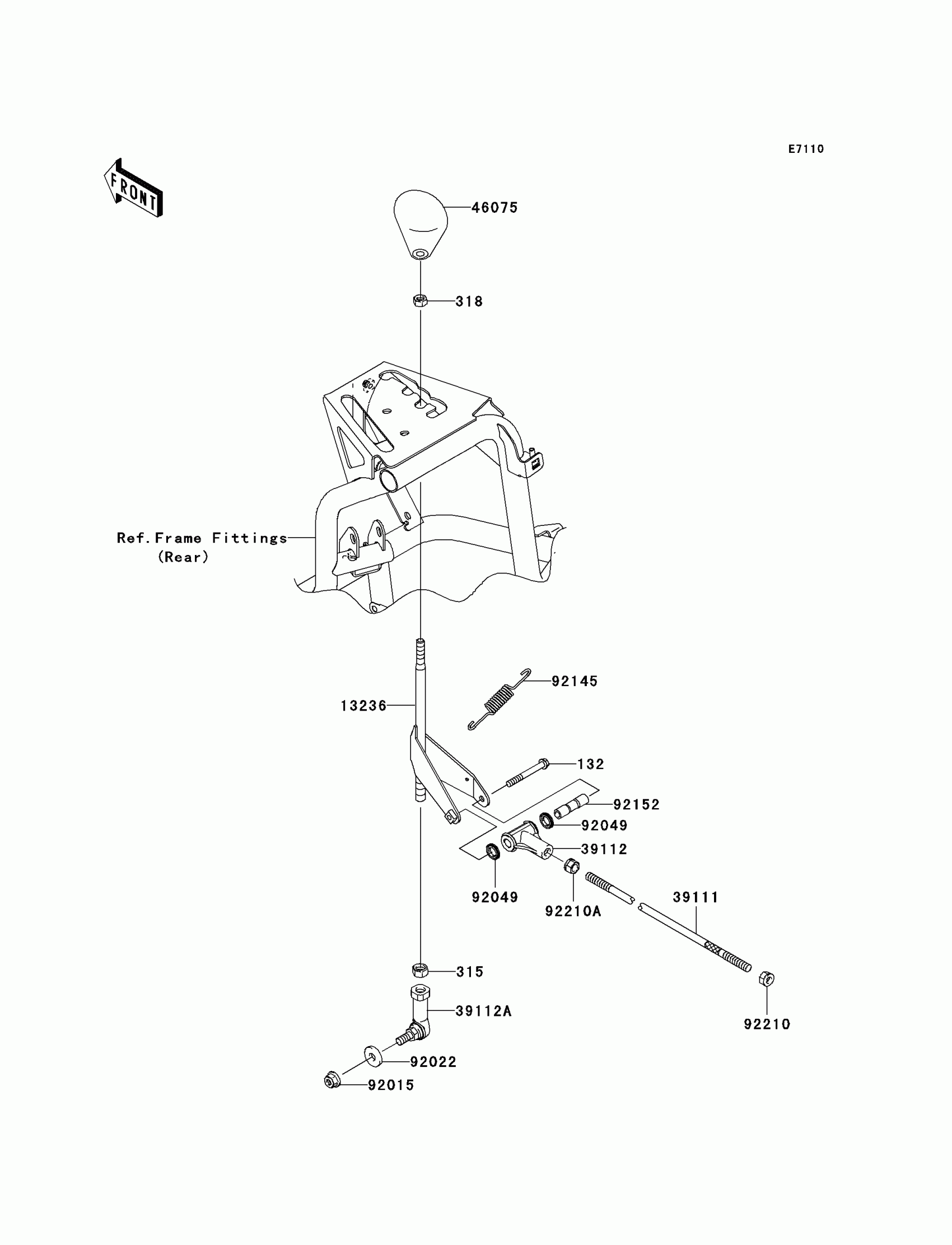

Kawasaki Teryx® 750 4x4 LE Control Diagram

Description

Price

132

BOLT-FLANGED-SMALL,6X50

132BB0650

$4.24

315

NUT-HEX-FINE,10MM

315AA1000

$0.54

318

NUT-HEX-SMALL,8MM

318BA0800

$1.04

13236

LEVER-COMP

13236-0152

$63.90

39111

ROD-TIE

39111-0040

$16.66

39112

RODEND-TIE

39112-1079

$25.83

39112A

RODEND-TIE,CONTROL PIVOT

39112-1084

Unavailable

46075

GRIP,SHIFT

46075-0046

$26.99

92015

NUT,8MM

92015-1432

$4.93

92022

WASHER,8.5X22X3.2

92022-276

$7.59

92049

SEAL-OIL

92049-1458

$8.89

92145

SPRING

92145-0130

$4.07

92152

COLLAR,RODEND-TIE

92152-1222

$8.19

92210

NUT,8MM

92210-1242

$1.73

92210A

NUT,LH,THREAD 8MM

92210-1284

$2.29
