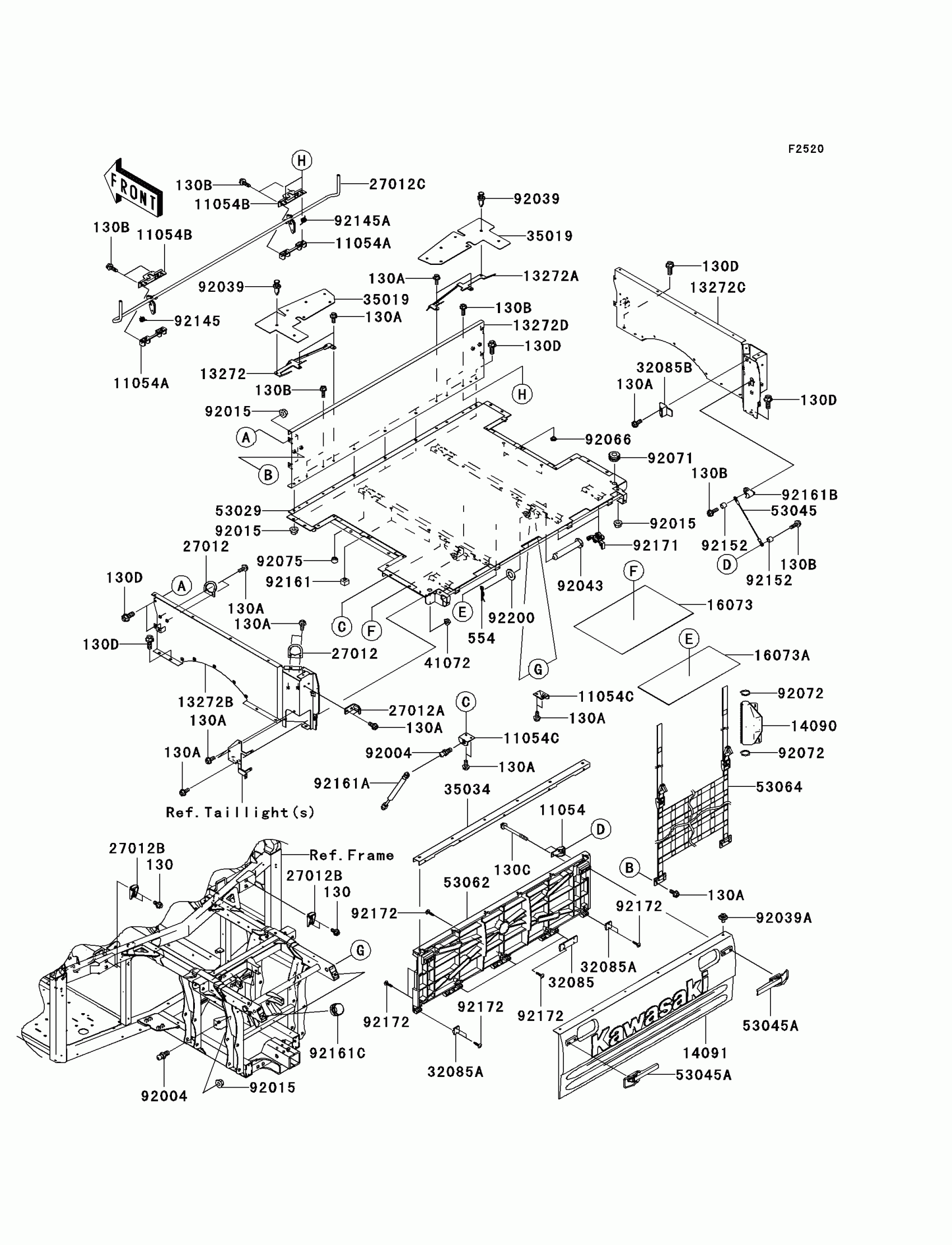

Kawasaki Teryx® 750 4x4 LE Carrier(s) Diagram

#

Description
Price

11054

BRACKET,TAIL GATE

11054-1064

$13.32

11054A

BRACKET

11054-1065

$43.14

11054B

BRACKET

11054-1066

$9.56

11054C

BRACKET

11054-1159

$3.68

13272

PLATE,REAR MUD GUARD,LH

13272-0352

$36.15

13272A

PLATE,REAR MUD GUARD,RH

13272-0353

$36.15

13272B

PLATE,CARRIER,LH

13272-0432

$178.29

13272C

PLATE,CARRIER,RH

13272-0433

$192.84

13272D

PLATE,CARRIER,FR

13272-0464

$234.28

14090

COVER,COUPLER

14090-1611

$8.31

14091

COVER,TAIL GATE,C.H.GREEN

14091-1613-826

$198.42

16073

INSULATOR

16073-0072

$72.45

16073A

INSULATOR

16073-0074

$53.36

27012

HOOK

27012-0113

$9.24

27012A

HOOK

27012-0133

$9.24

27012B

HOOK,CARRIER DUMP LOCK

27012-0156

$10.20

27012C

HOOK,CARRIER DUMP LOCK

27012-0160

$62.75

32085

STOPPER

32085-0103

$3.47

32085A

STOPPER

32085-0104

$3.83

32085B

STOPPER

32085-0145

$7.29

35019

FLAP

35019-0077

$16.83

35034

REINFORCE

35034-0102

$85.06

41072

NUT,6MM

41072-007

$2.99

53029

CARRIER

53029-0077

$710.93

53045

HOOK-ASSY,TAIL GATE

53045-0004

$26.21

53045A

HOOK-ASSY

53045-1063

$18.86

53062

GATE-TAIL

53062-0014

$116.08

53064

NET-CARGO

53064-0008

$100.12

92004

STUD,8X13.5

92004-0034

$3.36

92015

NUT,8MM

92015-1357

Unavailable

92039

RIVET

92039-1229

$0.80

92039A

RIVET

92039-1256

$1.99

92043

PIN,12.4X72.4

92043-0168

$8.08

92066

PLUG

92066-1485

$1.74

92071

GROMMET

92071-1010

$3.54

92072

BAND,L=123

92072-030

$3.81

92075

DAMPER

92075-1876

$10.02

92145

SPRING,LH

92145-0653

$4.12

92145A

SPRING,RH

92145-0654

$4.12

92152

COLLAR,6.3X9.5X8

92152-0621

$3.15

130

BOLT-FLANGED,6X12

130BB0612

$1.68

130A

BOLT-FLANGED,6X14

130BB0614

$1.77

130B

BOLT-FLANGED,6X18

130BB0618

$1.33

130C

BOLT-FLANGED,6X65

130BB0665

$3.97

130D

BOLT-FLANGED,8X20

130BB0820

$0.71

554

PIN-SNAP,12MM

554DA1200

$2.63

92161

DAMPER

92161-0421

$1.54

92161A

DAMPER,GAS SPRINGS

92161-0451

$42.02

92161B

DAMPER

92161-0550

$0.58

92161C

DAMPER

92161-0692

$10.97

92171

CLAMP

92171-0453

$3.12

92172

SCREW,TAPPING,4X16

92172-0347

$1.32

92200

WASHER,13X24X2

92200-0451

$2.42
