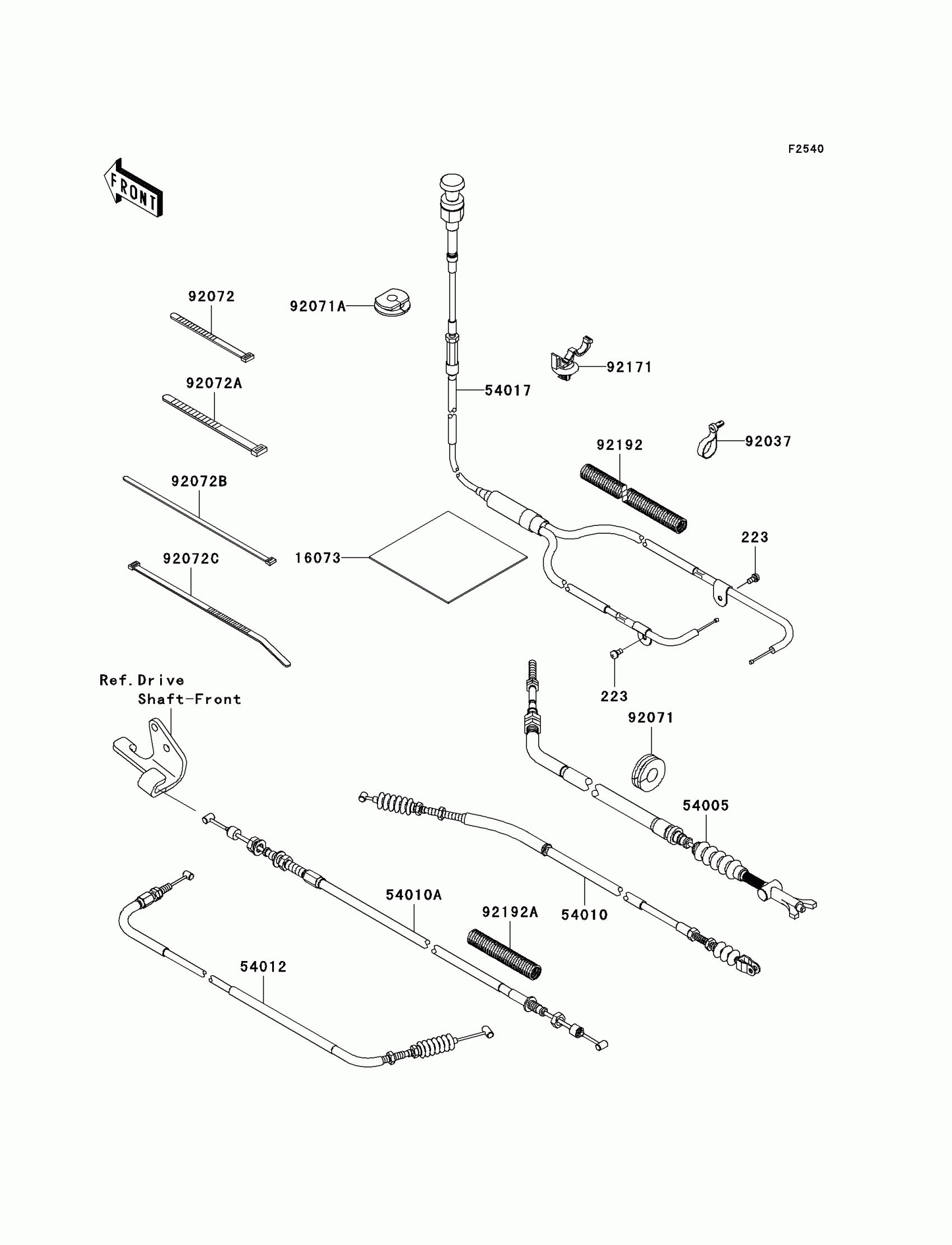

Kawasaki Teryx® 750 4x4 LE Cables Diagram

Description

Price

223

SCREW-PAN-WS-CROS,4X8

223AA0408

$1.28

16073

INSULATOR

16073-0052

$8.65

54005

CABLE-BRAKE,PARKING

54005-0016

$68.38

54010

CABLE,2/4WD

54010-0093

$56.79

54010A

CABLE,FRONT DIFF LOCK

54010-0095

Unavailable

54012

CABLE-THROTTLE

54012-0246

$44.39

54017

CABLE-STARTER

54017-0044

$80.03

92037

CLAMP,SPEED,L=58

92037-1163

$6.57

92071

GROMMET

92071-0029

$1.69

92071A

GROMMET

92071-0041

$1.41

92072

BAND,L=123

92072-030

$5.00

92072A

BAND,L=149

92072-031

$5.00

92072B

BAND,L=188

92072-1239

$1.73

92072C

BAND,L=292.1

92072-3509

Unavailable

92171

CLAMP

92171-0453

$3.54

92192

TUBE,CORRUGATED,L=200

92192-0672

$4.30

92192A

TUBE,CORRUGATED,L=80

92192-0673

$2.37
