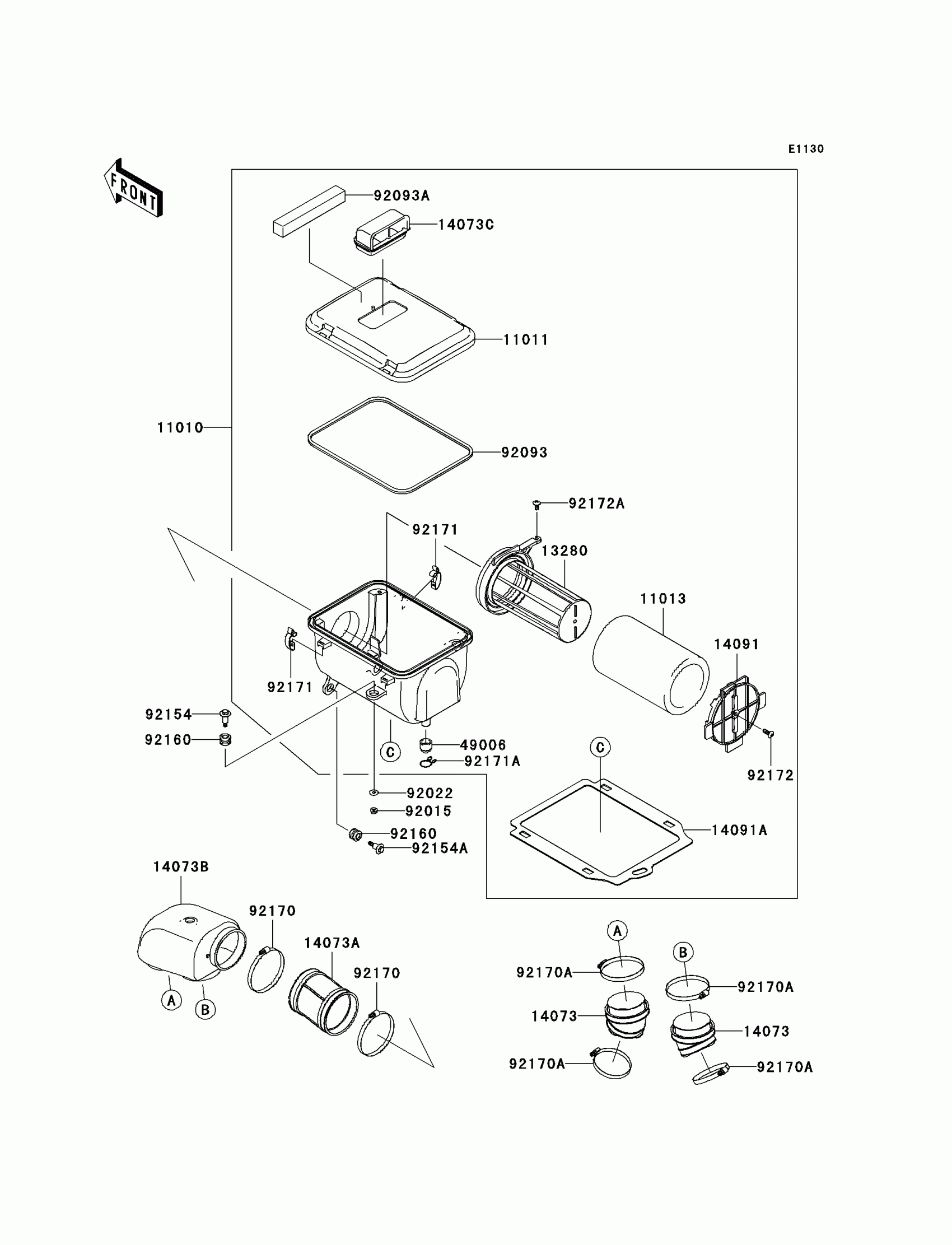

Kawasaki Teryx® 750 4x4 LE Air Cleaner Diagram

Description

Price

11010

FILTER-ASSY-AIR

11010-0154

$159.61

11011

CASE-AIR FILTER,UPP

11011-0120

$39.14

11013

ELEMENT-AIR FILTER

11013-0018

$8.56

13280

HOLDER

13280-0267

$11.88

14073

DUCT,JOINT

14073-0030

$7.09

14073A

DUCT,JOINT,A/C

14073-0140

$14.41

14073B

DUCT,MIDDLE

14073-0141

$45.46

14073C

DUCT

14073-0199

$8.59

14091

COVER

14091-0935

$7.36

14091A

COVER

14091-0989

$13.19

49006

BOOT,DRAIN

49006-3718

$4.94

92015

NUT,FLANGED,6MM

92015-1367

$2.53

92022

WASHER,6.5X16X1.0

92022-1093

$1.49

92093

SEAL

92093-0083

$6.00

92093A

SEAL

92093-0126

$4.46

92154

BOLT,FLANGED,6X28.7

92154-0028

$5.51

92154A

BOLT,FLANGED,6X27.5

92154-0029

$5.17

92160

DAMPER

92160-1594

$3.57

92170

CLAMP

92170-1676

$7.04

92170A

CLAMP

92170-1763

$4.29

92171

CLAMP

92171-0225

$1.44

92171A

CLAMP,BOOT

92171-3711

$3.37

92172

SCREW,6X18

92172-0130

$1.33

92172A

SCREW,6X14

92172-0131

$1.33
