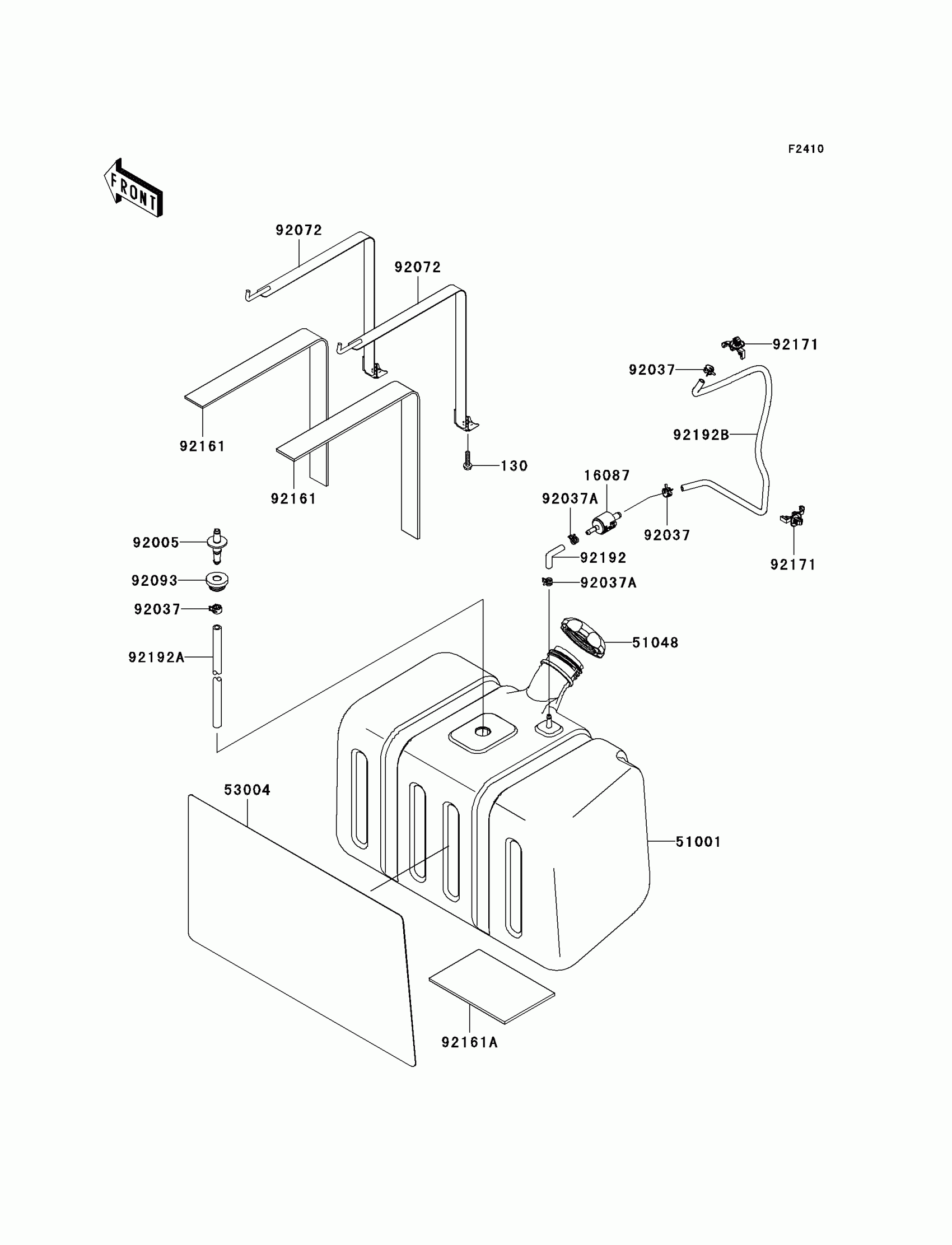

Kawasaki Teryx® 750 4x4 Fuel Tank Diagram

Description

Price

130

BOLT-FLANGED,6X25

130BA0625

$1.20

16087

VALVE-CHECK

16087-0002

$49.02

51001

TANK-COMP-FUEL

51001-0266

$295.49

51048

CAP-ASSY-TANK,FUEL

51048-0028

$48.58

53004

MAT

53004-0016

$19.74

92005

FITTING

92005-7501

$9.76

92037

CLAMP,HOSE CLIP

92037-1181

$3.36

92037A

CLAMP,TUBE

92037-1461

$3.88

92072

BAND,FUEL TANK

92072-0114

$22.09

92093

SEAL

92093-0129

$35.25

92161

DAMPER

92161-0426

$13.35

92161A

DAMPER,92X35X4.76

92161-7508

$8.78

92171

CLAMP

92171-0453

$3.54

92192

TUBE,FUEL TANK-CHECK VALVE

92192-0067

$3.87

92192A

TUBE,8X13X320

92192-0406

$5.58

92192B

TUBE

92192-0647

$22.55
