2008 Kawasaki Teryx® 750 4x4 Fuel Pump Diagram

← All diagrams

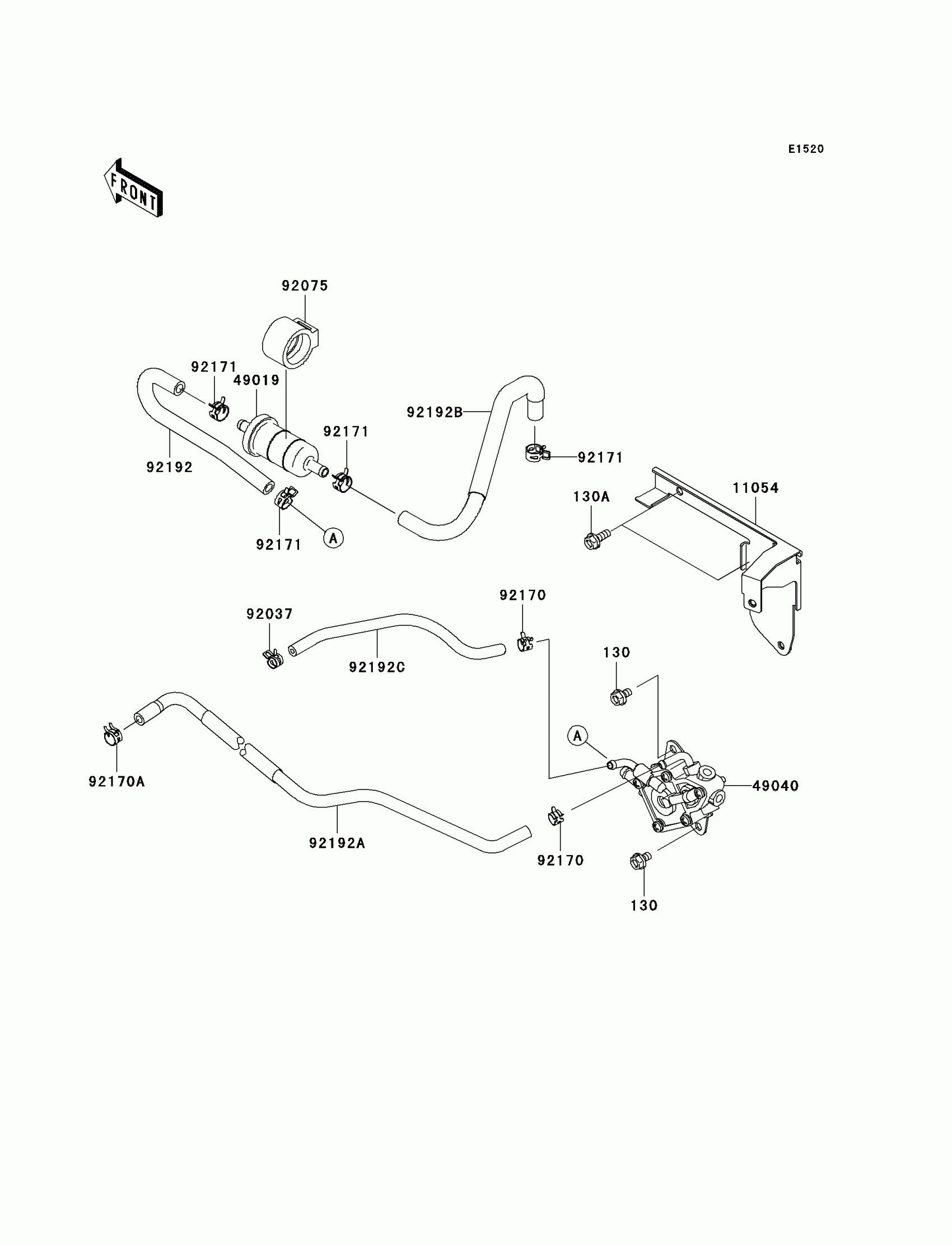

Find the part on the Fuel Pump diagram for your 2008 Kawasaki Teryx® 750 4x4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2008 Kawasaki Teryx® 750 4x4 Fuel Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,6X10

130BB0610

1

$2.05

In stock

130A

BOLT-FLANGED,6X16

130BB0616

1

$1.73

In stock

11054

BRACKET,FUEL PUMP

11054-1078

1
Out of stock

49019

FILTER-FUEL

49019-1055

1
Out of stock

49040

PUMP-FUEL

49040-0025

1
Out of stock

92037

CLAMP,TUBE

92037-1461

1
Out of stock

92075

DAMPER,FUEL FILTER

92075-1853

1
Out of stock

92170

CLAMP

92170-2042

1

$1.15

In stock

92170A

CLAMP

92170-2043

1

$1.08

In stock

92171

CLAMP

92171-0515

1

$5.56

In stock

92192

TUBE,FUEL PUMP-FUEL FILTER

92192-0403

1
Out of stock

92192A

TUBE,FUEL PUMP-CARB.

92192-0624

1
Out of stock

92192B

TUBE,TANK-FUEL FILTER

92192-0625

1
Out of stock

92192C

TUBE,FUEL PUMP-CYL.HEAD

92192-0643

1
Out of stock
