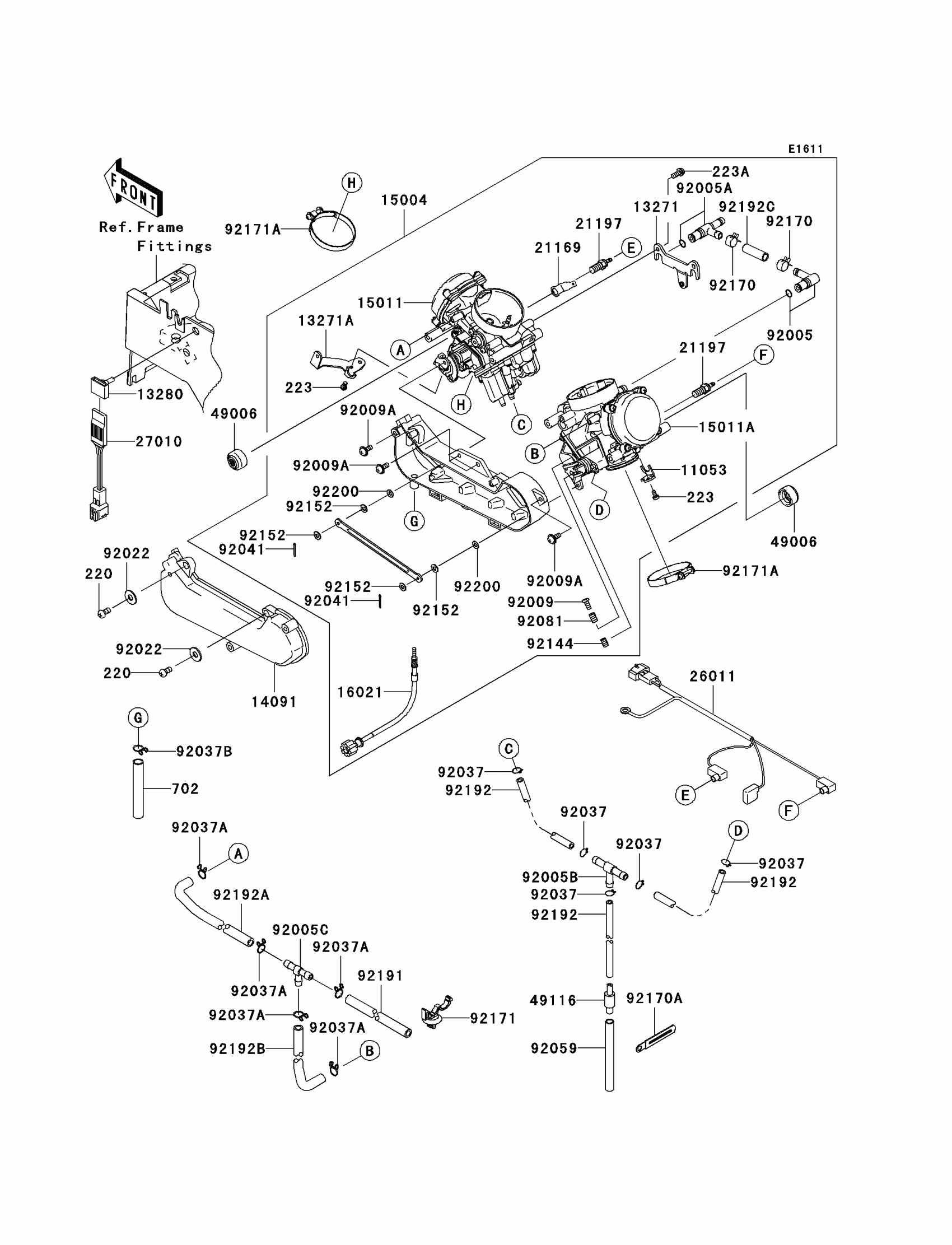

Find the part on the Carburetor diagram for your 2008 Kawasaki Teryx® 750 4x4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2008 Kawasaki Teryx® 750 4x4 Carburetor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11053

BRACKET

11053-1606

1

$7.22

In stock

13271

PLATE

13271-0750

1

$12.95

In stock

13271A

PLATE

13271-0751

1

$11.05

In stock

13280

HOLDER,CARBURETOR

13280-1253

1

$3.88

In stock

14091

COVER

14091-0360

1
Out of stock

15004

CARBURETOR-ASSY,CVKR34

15004-0017

1
Out of stock

15011

CARBURETOR,FR

15011-0126

1
Out of stock

15011A

CARBURETOR,RR

15011-0127

1
Out of stock

16021

SCREW-THROTTLE STOP

16021-0011

1
Out of stock

21169

TERMINAL

21169-0001

1
Out of stock

21197

HEATER

21197-1006

1
Out of stock

26011

WIRE-LEAD

26011-0229

1
Out of stock

27010

SWITCH

27010-0013

1
Out of stock

49006

BOOT,STARTER CABLE

49006-1353

1
Out of stock

49116

VALVE-ASSY

49116-1126

1
Out of stock

92005

FITTING

92005-0029

1
Out of stock

92005A

FITTING

92005-0030

1
Out of stock

92005B

FITTING,TUBE,T-TYPE

92005-1017

1
Out of stock

92005C

FITTING,T-TYPE

92005-1119

1
Out of stock

92009

SCREW,SYNCHRONIZE

92009-1858

1
Out of stock

92009A

SCREW

92009-1878

1
Out of stock

92022

WASHER,5.2X13X1

92022-1380

1
Out of stock

92037

CLAMP,TUBE

92037-010

1
Out of stock

92037A

CLAMP,TUBE

92037-147

1
Out of stock

92037B

CLAMP,TUBE

92037-1972

1
Out of stock

92041

COTTER

92041-1061

1
Out of stock

92059

TUBE,7X10X100

92059-1736

1
Out of stock

92081

SPRING

92081-1620

1
Out of stock

92144

SPRING

92144-1451

1
Out of stock

92152

COLLAR

92152-0268

1
Out of stock

92170

CLAMP,TUBE

92170-1051

1

$8.75

In stock

92170A

CLAMP

92170-1514

1

$3.43

In stock

92171

CLAMP

92171-0453

1

$3.12

In stock

92171A

CLAMP

92171-0722

1
Out of stock

92191

TUBE,7X11X470

92191-1531

1
Out of stock

92192

TUBE,4.5X8X120

92192-0141

1
Out of stock

92192A

TUBE,AIR-VENT,FR

92192-0276

1
Out of stock

92192B

TUBE,CARB.-FITTING

92192-0454

1
Out of stock

92192C

TUBE

92192-0606

1
Out of stock

92200

WASHER,LINK ARM,PLASTIC

92200-1432

1
Out of stock

220

SCREW-PAN-CROS,4X8

220AA0408

1
Out of stock

223

SCREW-PAN-WS-CROS,4X8

223AA0408

1
Out of stock

223A

SCREW-PAN-WS-CROS,5X14

223AA0514

1
Out of stock

702

TUBE-RUBBER

702A09080

1
Out of stock
