Description

Price

130

BOLT-FLANGED,6X16

130BB0616

$2.06

554

PIN-SNAP,1.2X21.2

554DA0600

$0.95

11054

BRACKET

11054-1789

$4.65

14091

COVER,STORAGE CAP,F.BLACK

14091-0700-6Z

$6.22

14091A

COVER,LH,F.BLACK

14091-0702-6Z

$9.49

14091B

COVER,CONTROL PANEL,F.BLACK

14091-0870-6Z

$17.75

14091C

COVER,STORAGE,F.BLACK

14091-0985-6Z

$29.98

23016

LAMP-ASSY

23016-0016

$118.49

23026

LENS,PILOT,ORANGE

23026-0010

$6.48

23026A

LENS,RED

23026-0011

$6.48

23026B

LENS,PILOT,GREEN

23026-1251

$6.41

39012

CASE-STORAGE,F.BLACK

39012-0017-6Z

$44.75

39145

TRIM-SEAL,L=940

39145-0029

$19.92

59226

PANEL-CONTROL,F.BLACK

59226-0018-6Z

$158.00

92009

SCREW,TAPPING,4X12

92009-1444

$3.21

92009A

SCREW,6X16

92009-1621

Unavailable

92009B

SCREW,6X56

92009-1829

$2.58

92022

WASHER,10.5X20X1

92022-239

$3.92

92027

COLLAR,L=4.7

92027-1964

$7.34

92039

RIVET

92039-0046

$3.90

92039A

RIVET

92039-1229

$1.19

92043

PIN

92043-0138

$8.75

92043A

PIN,6X23

92043-0164

$4.69

92069

BULB,12V 1.7W,T10

92069-1059

$4.96

92143

COLLAR

92143-1087

$4.31

92152

COLLAR,7.48X14.28X42

92152-0508

Unavailable

92152A

COLLAR,7.95X15.88X40

92152-0777

$5.37

92161

DAMPER

92161-0568

$1.19

92172

SCREW,TAPPING,4X16

92172-0347

$1.78

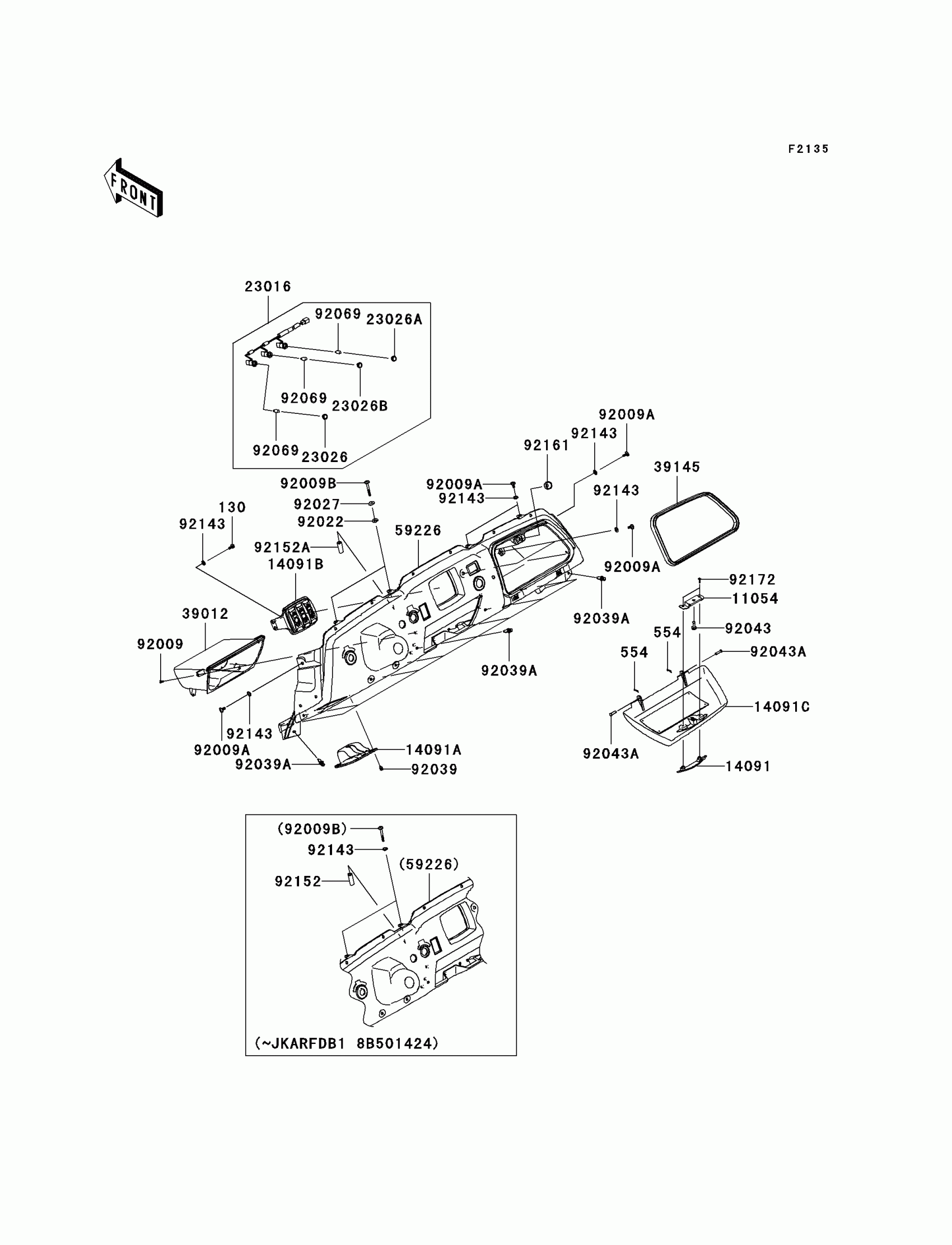

Kawasaki Teryx® 750 4x4 Front Box Diagram

BOLT-FLANGED,6X16

PIN-SNAP,1.2X21.2

BRACKET

COVER,STORAGE CAP,F.BLACK

COVER,LH,F.BLACK

COVER,CONTROL PANEL,F.BLACK

COVER,STORAGE,F.BLACK

LAMP-ASSY

LENS,PILOT,ORANGE

LENS,RED

LENS,PILOT,GREEN

CASE-STORAGE,F.BLACK

TRIM-SEAL,L=940

PANEL-CONTROL,F.BLACK

SCREW,TAPPING,4X12

SCREW,6X16

SCREW,6X56

WASHER,10.5X20X1

COLLAR,L=4.7

RIVET

RIVET

PIN

PIN,6X23

BULB,12V 1.7W,T10

COLLAR

COLLAR,7.48X14.28X42

COLLAR,7.95X15.88X40

DAMPER

SCREW,TAPPING,4X16
