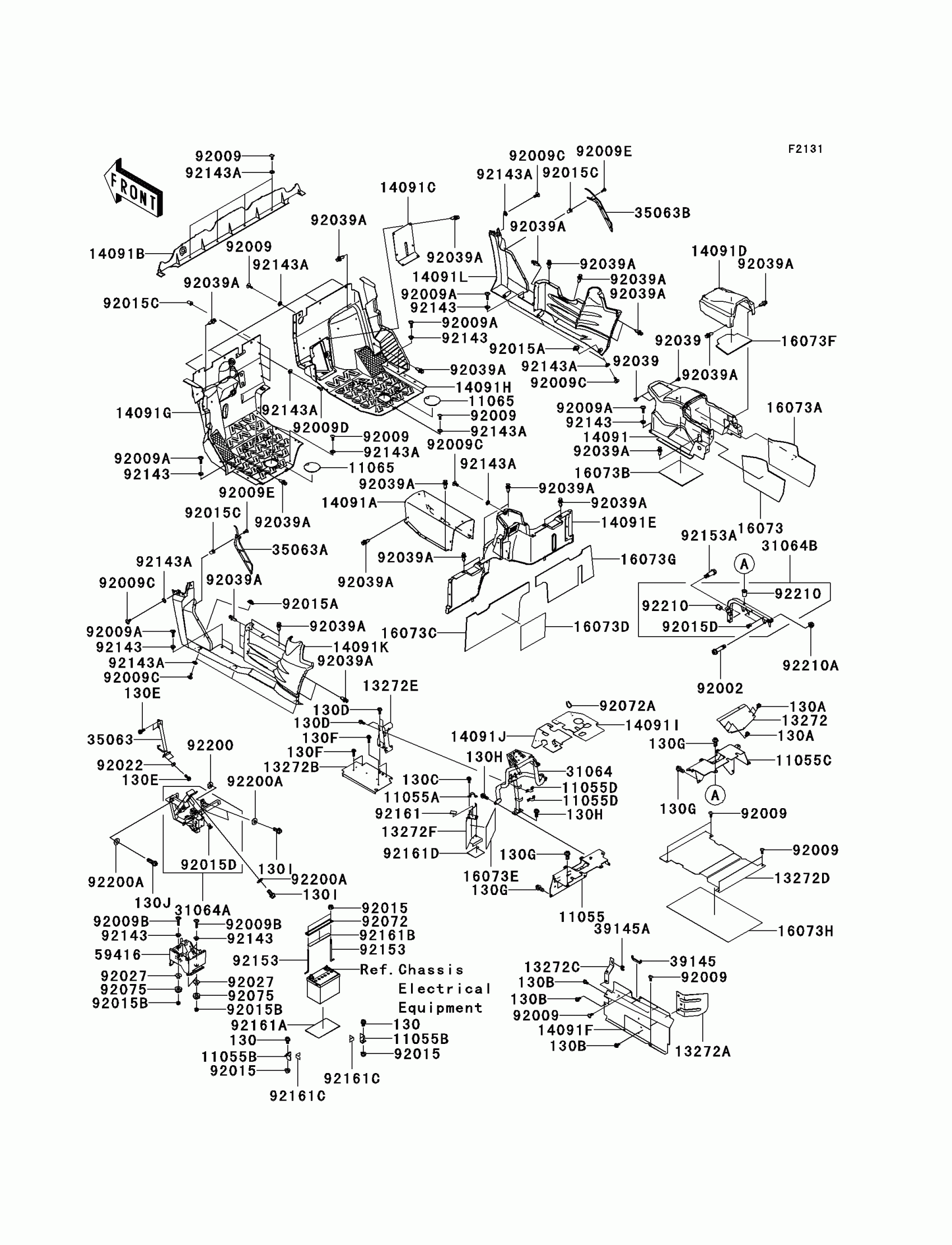

Kawasaki Teryx® 750 4x4 Frame Fittings Diagram

#

Description
Price

11055

BRACKET

11055-0384

Unavailable

11055A

BRACKET

11055-0419

$2.78

11055B

BRACKET

11055-0433

$3.77

11055C

BRACKET,SEAT LOCK PLATE

11055-0518

Unavailable

11055D

BRACKET

11055-0896

$4.34

11065

CAP

11065-0267

$9.62

13272

PLATE

13272-0276

$10.24

13272A

PLATE

13272-0318

$8.34

13272B

PLATE,TUNNEL PLATE

13272-0336

$46.19

13272C

PLATE

13272-0351

$14.06

13272D

PLATE,FRONT FENDER

13272-0390

$35.15

13272E

PLATE

13272-0434

$28.78

13272F

PLATE,HEAT GUARD

13272-0448

$34.89

14091

COVER,CONSOLE CENTER,F.BLACK

14091-0692-6Z

Unavailable

14091A

COVER,CENTER,F.BLACK

14091-0696-6Z

$32.28

14091B

COVER

14091-0699

$89.23

14091C

COVER,F.BLACK

14091-0731-6Z

$11.59

14091D

COVER,CONSOLE CENTER

14091-0975

Unavailable

14091E

COVER,SEAT,F.BLACK

14091-0982-6Z

$74.21

14091F

COVER

14091-0987

$67.18

14091G

COVER,FLOOR,LH

14091-1639

Unavailable

14091H

COVER,FLOOR,RH

14091-1640

Unavailable

14091I

COVER

14091-1643

$21.88

14091J

COVER

14091-1644

$21.88

14091K

COVER,SIDE,LH,F.BLACK

14091-1686-6Z

Unavailable

14091L

COVER,SIDE,RH,F.BLACK

14091-1687-6Z

Unavailable

16073

INSULATOR

16073-0042

$45.61

16073A

INSULATOR

16073-0043

$45.61

16073B

INSULATOR

16073-0044

$14.79

16073C

INSULATOR

16073-0050

$58.38

16073D

INSULATOR

16073-0060

$36.54

16073E

INSULATOR

16073-0062

$33.04

16073F

INSULATOR

16073-0066

$14.09

16073G

INSULATOR

16073-0070

$55.70

16073H

INSULATOR

16073-0075

$136.06

31064

PIPE-COMP

31064-0136

$144.33

31064A

PIPE-COMP

31064-0138

$145.20

31064B

PIPE-COMP

31064-0145

$47.32

35063

STAY,MASTER CYLINDER

35063-0518

$34.06

35063A

STAY,SIDE COVER,LH

35063-0544

$42.10

130

BOLT-FLANGED,8X14

130BA0814

$2.16

130A

BOLT-FLANGED,6X10

130BB0610

$2.49

130B

BOLT-FLANGED,6X12

130BB0612

$2.34

130C

BOLT-FLANGED,6X14

130BB0614

$2.49

35063B

STAY,SIDE COVER,RH

35063-0545

$42.10

39145

TRIM-SEAL,L=110

39145-0034

$7.68

39145A

TRIM-SEAL,L=53

39145-0035

$4.72

59416

CASE-ELECTRIC

59416-0017

$41.88

92002

BOLT,FLANGED,10X46

92002-1740

$7.69

92009

SCREW,TAPPING,6X16

92009-1166

$5.52

92009A

SCREW,6X22,BLACK

92009-1256

$2.78

92009B

SCREW,6X28,WHITE

92009-1342

$6.16

92009C

SCREW,6X16

92009-1621

Unavailable

92009D

SCREW,5X18

92009-1655

$4.31

92009E

SCREW,5X20

92009-1934

$1.52

92015

NUT,FLANGED,8MM

92015-1406

$4.45

92015A

NUT

92015-1487

$4.80

92015B

NUT,LOCK,FLANGED,6MM

92015-1603

$4.69

92015C

NUT,WELL,5MM

92015-1757

$7.29

92015D

NUT,POP,6MM,L=15

92015-1791

$4.69

92022

WASHER,6.2X15X1.2

92022-2373

$0.43

92027

COLLAR

92027-194

$5.52

92039

RIVET

92039-0046

$3.90

92039A

RIVET

92039-1229

$1.19

92072

BAND,BATTERY

92072-0097

$18.05

92072A

BAND,L=292.1

92072-3509

Unavailable

92075

DAMPER

92075-277

$2.84

92143

COLLAR

92143-1057

$5.00

92143A

COLLAR

92143-1087

$4.31

92153

BOLT

92153-1737

$19.01

92153A

BOLT,FLANGED,10X38

92153-1742

$10.79

92161

DAMPER

92161-0273

$1.78

92161A

DAMPER

92161-0578

$4.25

92161B

DAMPER

92161-0579

$2.52

92161C

DAMPER

92161-0580

$2.40

92161D

DAMPER

92161-0669

$4.32

92200

WASHER,10X22X3.2

92200-0121

$2.38

92200A

WASHER,10.3X23X1.6

92200-2009

$1.35

92210

NUT,POP,10MM

92210-0352

$4.09

92210A

NUT,LOCK,FLANGED,10MM

92210-1080

$10.28

130D

BOLT-FLANGED,6X16

130BB0616

$2.06

130E

BOLT-FLANGED,6X18

130BB0618

$1.81

130F

BOLT-FLANGED,6X20

130BB0620

$0.46

130G

BOLT-FLANGED,10X20

130BB1020

$5.96

130H

BOLT-FLANGED,8X20

130CA0820

$1.71

130I

BOLT-FLANGED,10X20

130CA1020

$2.13

130J

BOLT-FLANGED,10X30

130CB1030

$6.91
