Description

Price

11054

BRACKET,TAIL GATE

11054-1064

$14.06

11055

BRACKET,CARRIER

11055-0174

$11.00

11055A

BRACKET,CARRIER

11055-0175

$23.79

11065

CAP

11065-0261

$10.15

13272

PLATE,REAR MUD GUARD,LH

13272-0352

$35.51

13272A

PLATE,REAR MUD GUARD,RH

13272-0353

$35.51

13272B

PLATE,CARRIER,LH

13272-0432

$174.80

13272C

PLATE,CARRIER,RH

13272-0433

$189.06

13272D

PLATE,CARRIER,FR

13272-0464

$229.69

14090

COVER,COUPLER

14090-1611

$8.51

14091

COVER,TAIL GATE,C.H.GREEN

14091-1613-826

$194.53

16073

INSULATOR

16073-0072

$71.09

16073A

INSULATOR

16073-0074

$52.34

27012

HOOK

27012-0113

$9.58

27012A

HOOK

27012-0133

$9.58

32085

STOPPER

32085-0103

$3.99

32085A

STOPPER

32085-0104

$4.12

32085B

STOPPER

32085-0145

$9.58

35019

FLAP

35019-0077

$18.05

35034

REINFORCE

35034-0102

$83.55

41072

NUT,6MM

41072-007

$3.92

53029

CARRIER

53029-0077

$695.93

53045

HOOK-ASSY,TAIL GATE

53045-0004

$29.74

53045A

HOOK-ASSY

53045-1063

$23.47

53062

GATE-TAIL

53062-0014

$113.81

53064

NET-CARGO

53064-0008

$98.32

92015

NUT,8MM

92015-1357

Unavailable

92039

RIVET

92039-1229

$1.19

92039A

RIVET

92039-1256

$2.75

92043

PIN,12.4X72.4

92043-0168

$8.26

92066

PLUG

92066-1485

$2.44

92071

GROMMET

92071-1010

$4.65

92072

BAND,L=123

92072-030

$5.00

92152

COLLAR,6.3X9.5X8

92152-0621

$3.59

92161

DAMPER

92161-0421

$1.81

92161A

DAMPER

92161-0546

$2.72

92161B

DAMPER

92161-0548

$2.24

92161C

DAMPER

92161-0550

$0.53

92161D

DAMPER

92161-0692

$11.48

92171

CLAMP

92171-0453

$3.54

130

BOLT-FLANGED,6X14

130BB0614

$2.49

130A

BOLT-FLANGED,6X18

130BB0618

$1.81

130B

BOLT-FLANGED,6X65

130BB0665

$4.45

130C

BOLT-FLANGED,8X20

130BB0820

$0.84

554

PIN-SNAP,12MM

554DA1200

$3.96

92172

SCREW,TAPPING,4X16

92172-0347

$1.78

92200

WASHER,13X24X2

92200-0451

$2.97

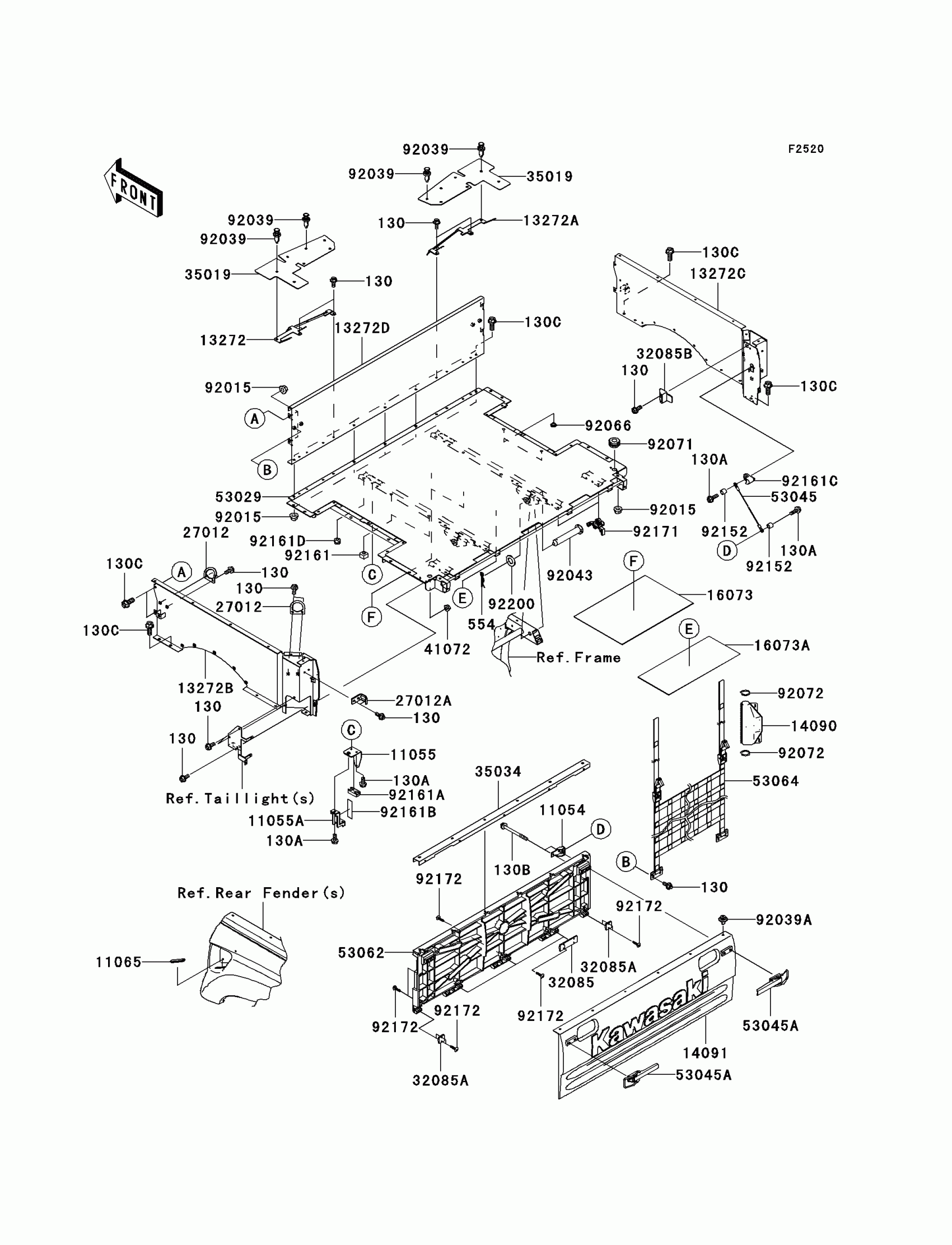

Kawasaki Teryx® 750 4x4 Carrier(s) Diagram

BRACKET,TAIL GATE

BRACKET,CARRIER

BRACKET,CARRIER

CAP

PLATE,REAR MUD GUARD,LH

PLATE,REAR MUD GUARD,RH

PLATE,CARRIER,LH

PLATE,CARRIER,RH

PLATE,CARRIER,FR

COVER,COUPLER

COVER,TAIL GATE,C.H.GREEN

INSULATOR

INSULATOR

HOOK

HOOK

STOPPER

STOPPER

STOPPER

FLAP

REINFORCE

NUT,6MM

CARRIER

HOOK-ASSY,TAIL GATE

HOOK-ASSY

GATE-TAIL

NET-CARGO

NUT,8MM

RIVET

RIVET

PIN,12.4X72.4

PLUG

GROMMET

BAND,L=123

COLLAR,6.3X9.5X8

DAMPER

DAMPER

DAMPER

DAMPER

DAMPER

CLAMP

BOLT-FLANGED,6X14

BOLT-FLANGED,6X18

BOLT-FLANGED,6X65

BOLT-FLANGED,8X20

PIN-SNAP,12MM

SCREW,TAPPING,4X16

WASHER,13X24X2
