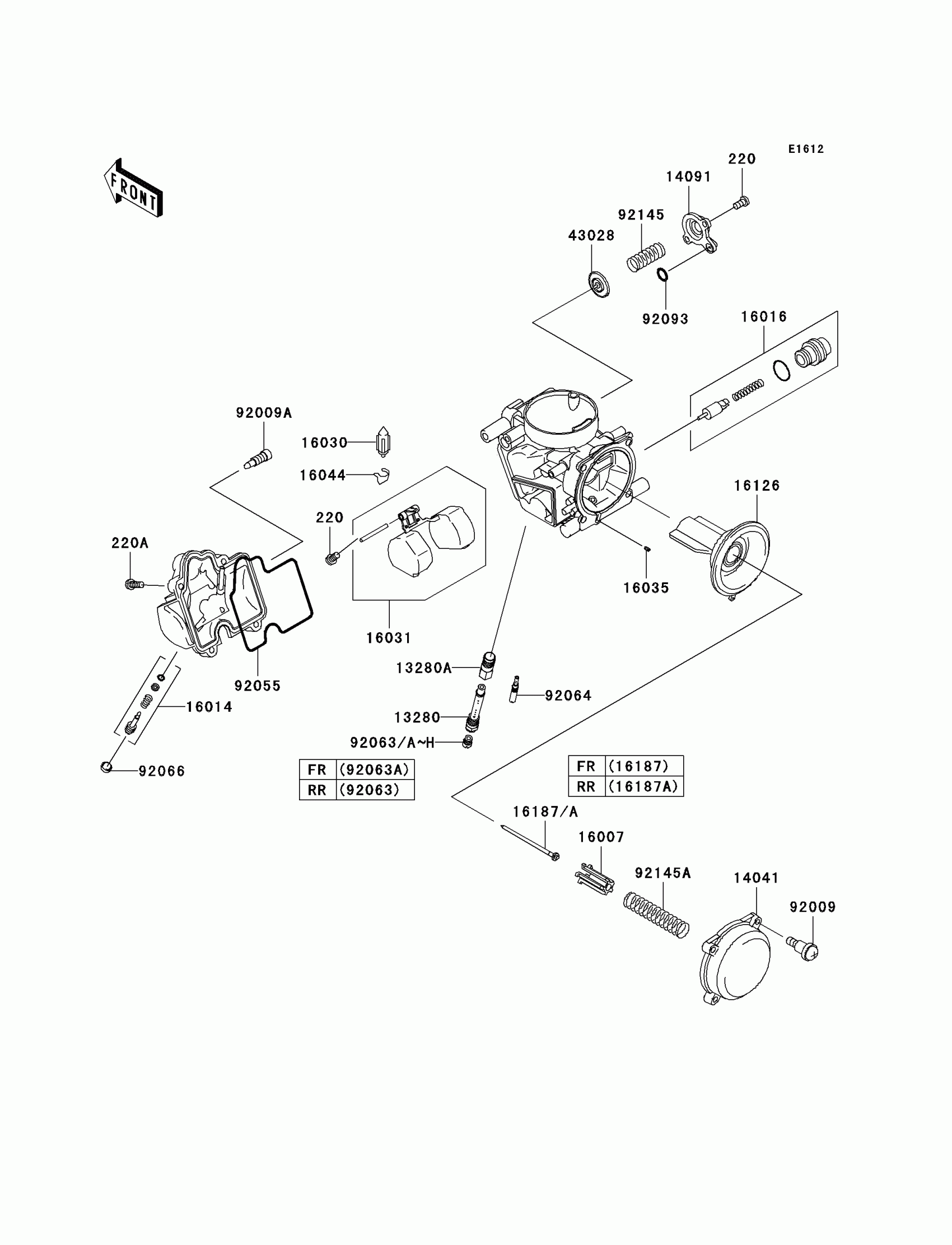

Kawasaki Teryx® 750 4x4 Carburetor Parts Diagram

#

Description
Price

220

SCREW-PAN-CROS,4X8

220AA0408

$0.68

220A

SCREW-PAN-CROS,4X14

220AA0414

$4.60

13280

HOLDER

13280-0115

$51.53

13280A

HOLDER,JET

13280-1096

$29.82

14041

CAP-CHAMBER,MIXING

14041-1091

$67.66

14091

COVER,AIR CUT VALVE

14091-1246

$33.04

16007

SEAT-SPRING,VALVE

16007-1117

$25.03

16014

SCREW-PILOT AIR

16014-0009

$20.80

16016

PLUNGER

16016-1117

$64.19

16030

VALVE-FLOAT

16030-1007

$47.99

16031

FLOAT

16031-1097

$59.28

16035

JET-AIR,LEAK

16035-1055

$15.74

16044

CLAMP,FLOAT VALVE

16044-007

$7.91

16126

VALVE

16126-0015

$197.42

16187

NEEDLE-JET,N3RL,FR

16187-0281

$41.24

16187A

NEEDLE-JET,NFCH,RR

16187-0282

$41.24

43028

DIAPHRAGM,AIR CUT VALVE

43028-1085

$27.45

92009

SCREW,4X4.4

92009-1549

$5.24

92009A

SCREW,DRAIN,M6X0.75

92009-1551

$9.91

92055

RING-O,FLOAT CHAMBER

92055-1589

$32.69

92063

JET-MAIN,#140

92063-1013

$14.10

92063A

JET-MAIN,#135

92063-1014

$14.10

92063B

JET-MAIN,#138

92063-1015

Unavailable

92063C

JET-MAIN,#142

92063-1016

Unavailable

92063D

JET-MAIN,#145

92063-1017

Unavailable

92063E

JET-MAIN,#125

92063-1069

Unavailable

92063F

JET-MAIN,#128

92063-1074

Unavailable

92063G

JET-MAIN,#130

92063-1075

Unavailable

92063H

JET-MAIN,#132

92063-1076

Unavailable

92064

JET-PILOT,#38

92064-0011

$18.63

92066

PLUG,PILOT AIR SCREW,6.9X2

92066-1051

$5.05

92093

SEAL-"U"RING

92093-1046

$6.51

92145

SPRING,AIR CUT VALVE,RR

92145-0097

$8.90

92145A

SPRING,VACUUM VALVE

92145-1064

$29.95
