Camshaft(s)/Tensioner

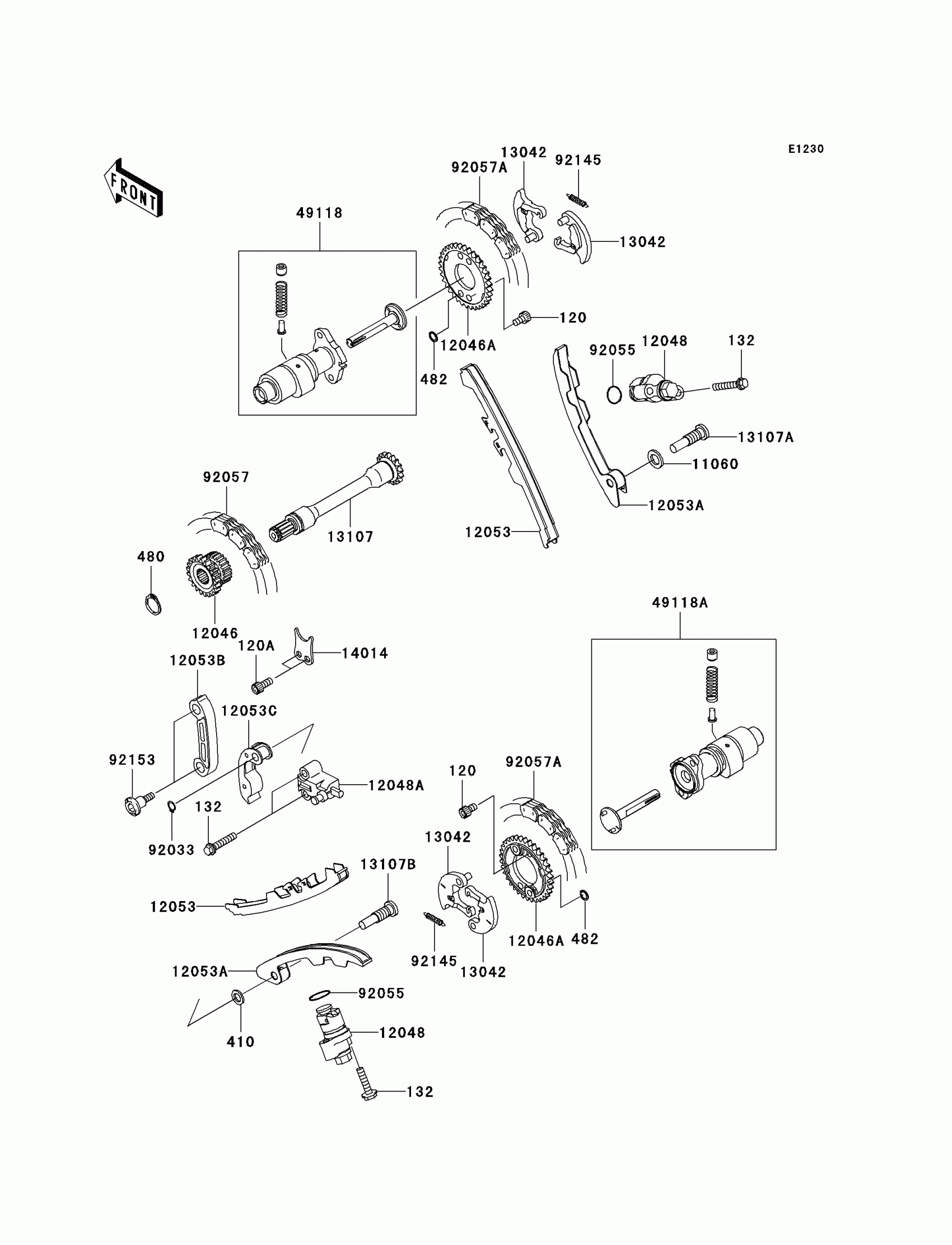

Kawasaki Teryx® 750 4x4 Camshaft(s)/Tensioner Diagram
#
Description
Price
120
BOLT-SOCKET,6X10
120CA0610
$1.71
120A
BOLT-SOCKET,6X14
120CB0614
$4.12
132
BOLT-FLANGED-SMALL,6X30
132BD0630
$3.67
410
WASHER-PLAIN-SMALL,8MM
410AA0800
$0.96
480
CIRCLIP-TYPE-C,14MM
480J1400
$5.00
482
CIRCLIP-TYPE-E,5MM
482J5000
$3.41
11060
GASKET
11060-1966
$2.24
12046
SPROCKET,21T&17T
12046-0021
Unavailable
12046A
SPROCKET,CAMSHAFT,34T
12046-1203
$60.55
12048
TENSIONER-ASSY,CAM
12048-1176
$139.76
12048A
TENSIONER-ASSY,SECONDARY
12048-1177
$139.76
12053
GUIDE-CHAIN,CAMSHAFT,TENSION
12053-1441
$54.31
12053A
GUIDE-CHAIN,CAMSHAFT,SLACK
12053-1442
$57.43
12053B
GUIDE-CHAIN,TENSION
12053-1443
$27.26
12053C
GUIDE-CHAIN,SLACK
12053-1444
$49.52
13042
WEIGHT,DECOMP
13042-1141
$44.00
13107
SHAFT
13107-0029
$167.98
13107A
SHAFT,CHAIN GUIDE,FR
13107-1443
$10.90
13107B
SHAFT,CHAIN GUIDE,RR
13107-1444
$12.92
14014
PLATE-POSITION,DRIVE
14014-1148
Unavailable
49118
CAMSHAFT-COMP,FR
49118-0001
$220.22
49118A
CAMSHAFT-COMP,RR
49118-0002
$208.68
92033
RING-SNAP,8MM
92033-1039
$4.26
92055
RING-O,18.8X1.9
92055-086
$4.31
92057
CHAIN,DID SCR-0412 SDH
92057-0073
Unavailable
92057A
CHAIN,DID SCR-0409 SDH
92057-0074
Unavailable
92145
SPRING,DECOMP
92145-1303
$3.02
92153
BOLT,SOCKET,6X24.5
92153-1200
$11.59
