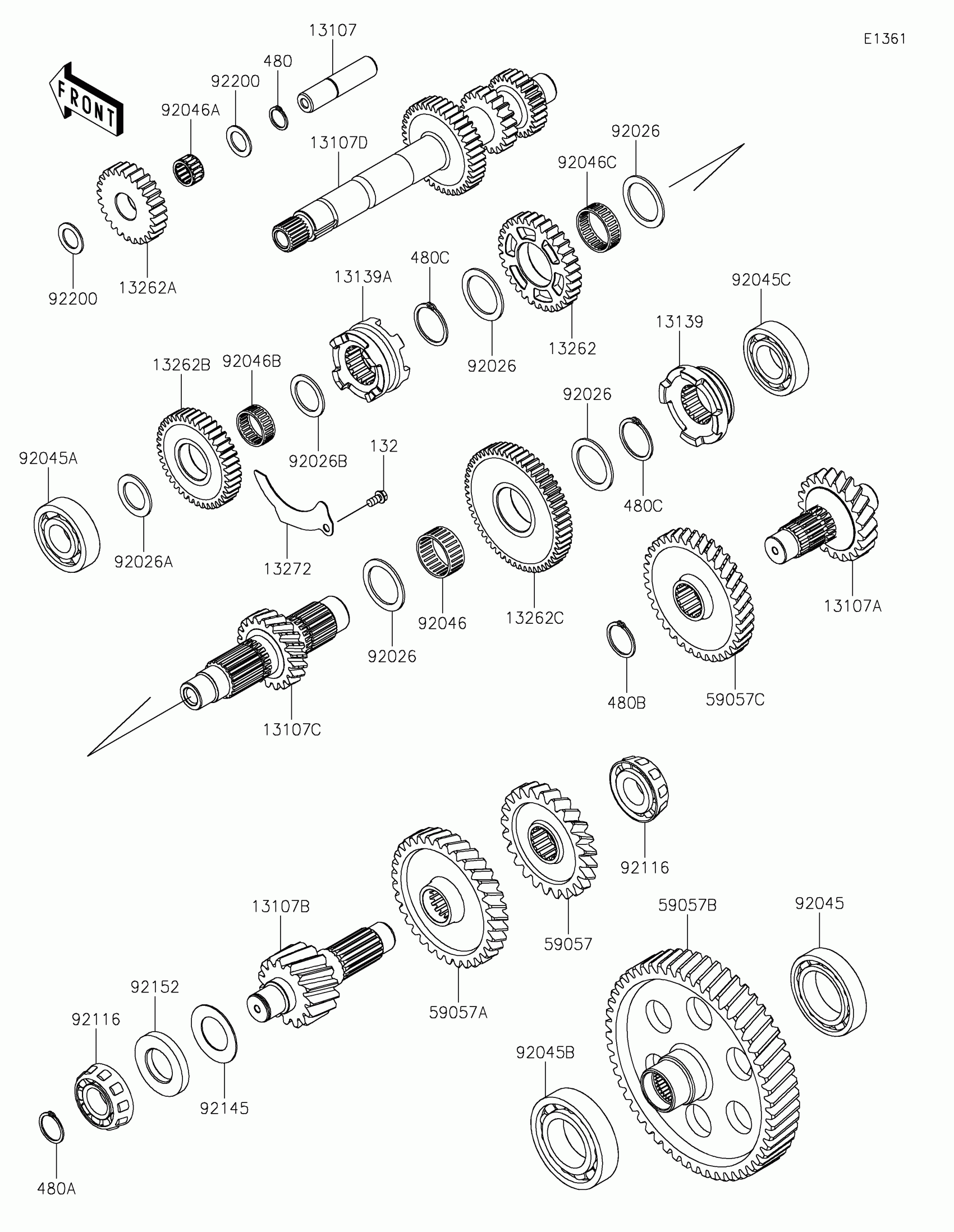

Kawasaki TERYX®5 H2 DELUXE eS Transmission Diagram

#

Description
Price

13107

SHAFT,REVERSE IDLER

13107-0879

$40.82

13107A

SHAFT,3RD,21T

13107-1538

$361.74

13107B

SHAFT,4TH,15T

13107-1539

$477.71

13107C

SHAFT,2ND,20T

13107-1569

$411.32

13107D

SHAFT,INPUT

13107-1606

$723.22

13139

SHIFTER,LOW,19T

13139-0030

$126.39

13139A

SHIFTER,HIGH&REV,19T

13139-0037

$118.64

13262

GEAR,REV,32T

13262-1364

$110.95

13262A

GEAR,REVERSE IDLER,25T

13262-1567

$67.54

13262B

GEAR,HIGH,41T

13262-1673

$162.32

13262C

GEAR,LOW,55T

13262-1674

$217.63

13272

PLATE,OIL

13272-2570

$1.45

59057

GEAR-HELICAL,24T

59057-0037

$123.65

59057A

GEAR-HELICAL,4TH,34T

59057-0050

$175.84

59057B

GEAR-HELICAL,FINAL,53T

59057-0711

$626.90

59057C

GEAR-HELICAL,3RD,36T

59057-0716

$176.48

92026

SPACER,35.2X47X2

92026-0765

$11.23

92026A

SPACER,25.2X38X2

92026-0856

$8.52

92026B

SPACER,28X38X2

92026-1299

Unavailable

92045

BEARING-BALL,6009

92045-0903

$32.00

92045A

BEARING-BALL,6305ZUR3

92045-0926

$34.39

92045B

BEARING-BALL,TMB209

92045-0935

$44.80

92045C

BEARING-BALL,30X62X16,6206RSH2

92045-1000

$36.18

92046

BEARING-NEEDLE,35X40X17

92046-0611

$17.11

92046A

BEARING-NEEDLE

92046-0634

$12.93

92046B

BEARING-NEEDLE

92046-0635

$12.14

92046C

BEARING-NEEDLE

92046-0636

$17.24

92116

BEARING-ROLLER,HC30305JRLFT

92116-0012

$22.81

92145

SPRING

92145-1837

$7.22

92152

COLLAR

92152-2526

$16.74

92200

WASHER,18.2X28X1.5

92200-0716

$3.02

132

BOLT-FLANGED-SMALL,6X12

132BA0612

$1.20

480

CIRCLIP-TYPE-C,18MM

480J1800

$1.28

480A

CIRCLIP-TYPE-C,25MM

480J2500

$2.03

480B

CIRCLIP

480J2900

$6.22

480C

CIRCLIP

480J3500

$2.75
