Description

Price

11057

BRACKET

11057-2647

$37.58

11065

CAP

11065-0904

$6.46

11065A

CAP,EVAPO-HOSE

11065-1529

$11.68

14073

DUCT,AIR FUNNEL

14073-1965

$39.18

16073

INSULATOR

16073-0977

$10.28

16163

THROTTLE-ASSY

16163-1324

$2,181.98

21176

SENSOR,PRESSURE

21176-0937

$222.28

26031

HARNESS

26031-7123

$107.65

49033

NOZZLE-INJECTION

49033-0564

$132.97

92005

FITTING

92005-1380

$16.65

92055

RING-O,INJECTION NOZZLE

92055-0124

$2.97

92055A

RING-O

92055-0817

$11.07

92055B

RING-O

92055-1778

$14.82

92055C

RING-O

92055-1779

$14.82

92144

SPRING,THROTTLE STOP SCREW

92144-1674

$5.74

92154

BOLT,SOCKET,5X16

92154-1568

$2.26

92154A

BOLT,SOCKET,5X28

92154-3882

$0.88

92161

DAMPER

92161-0673

$5.54

92172

SCREW

92172-0156

$15.20

92172A

SCREW,PIPE INJECTION

92172-0828

$3.02

92173

CLAMP

92173-1420

$1.71

92173A

CLAMP

92173-1421

$1.71

92173B

CLAMP

92173-1470

$0.95

92192

TUBE,3.2X7.4X45

92192-1445

$7.52

92192A

TUBE,3.2X7.4X75

92192-1446

$11.40

92192B

TUBE,3.5X7.5X70

92192-1447

$13.73

92192C

TUBE,3.5X7.5X40

92192-1494

$9.84

92192D

TUBE,3.5X7.5X115

92192-1495

$25.88

92192E

TUBE,3.2X7.4X45

92192-1617

$7.52

92192F

TUBE

92192-2479

$38.13

92192G

TUBE

92192-2480

$38.13

92192H

TUBE

92192-2815

$25.13

92200

WASHER,PILOT AIR SCREW

92200-1564

$2.58

92200A

WASHER

92200-3807

$6.00

220

SCREW-PAN-CROS,5X14

220AA0514

$4.43

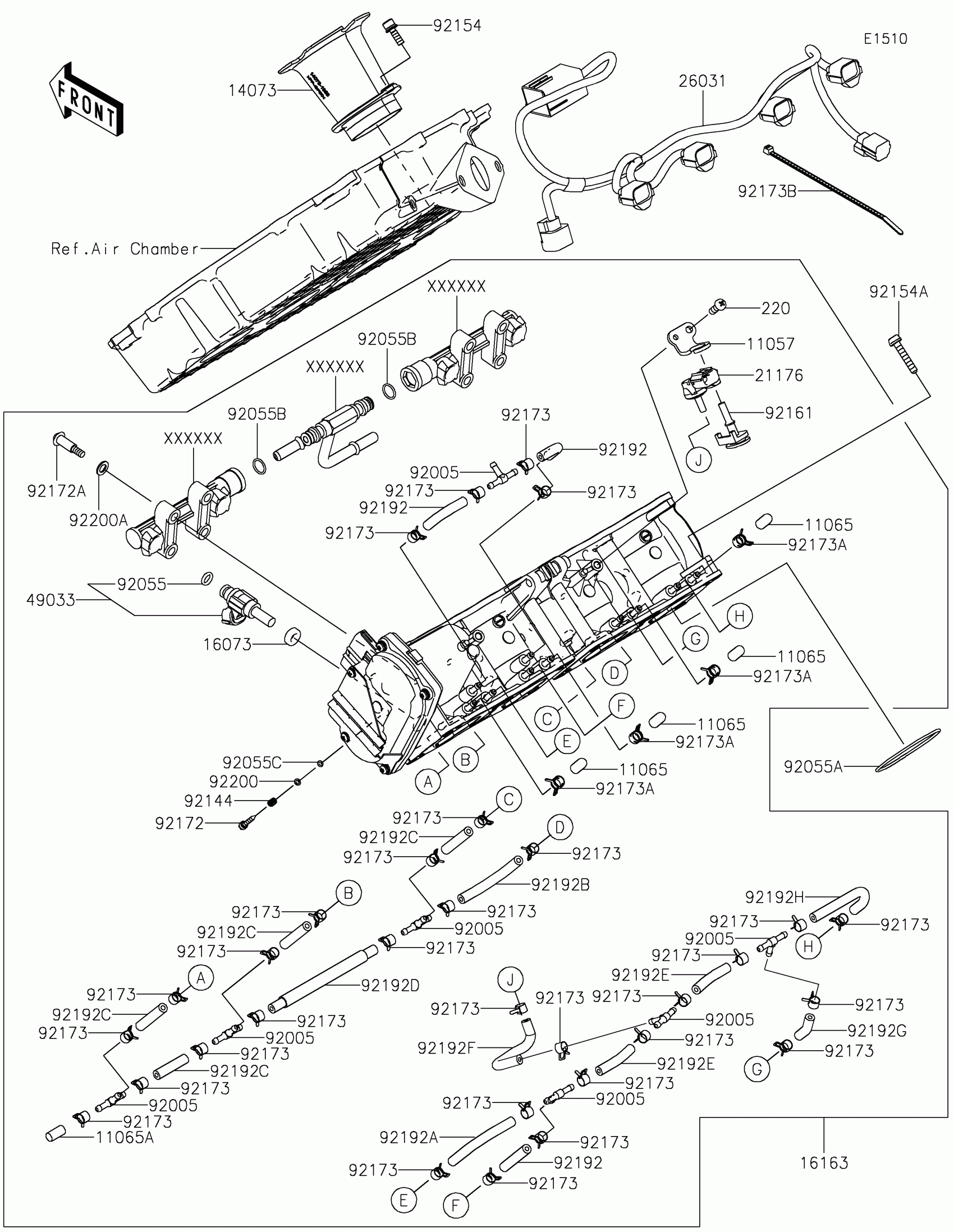

Kawasaki TERYX®5 H2 DELUXE eS Throttle Diagram

BRACKET

CAP

CAP,EVAPO-HOSE

DUCT,AIR FUNNEL

INSULATOR

THROTTLE-ASSY

SENSOR,PRESSURE

HARNESS

NOZZLE-INJECTION

FITTING

RING-O,INJECTION NOZZLE

RING-O

RING-O

RING-O

SPRING,THROTTLE STOP SCREW

BOLT,SOCKET,5X16

BOLT,SOCKET,5X28

DAMPER

SCREW

SCREW,PIPE INJECTION

CLAMP

CLAMP

CLAMP

TUBE,3.2X7.4X45

TUBE,3.2X7.4X75

TUBE,3.5X7.5X70

TUBE,3.5X7.5X40

TUBE,3.5X7.5X115

TUBE,3.2X7.4X45

TUBE

TUBE

TUBE

WASHER,PILOT AIR SCREW

WASHER

SCREW-PAN-CROS,5X14
