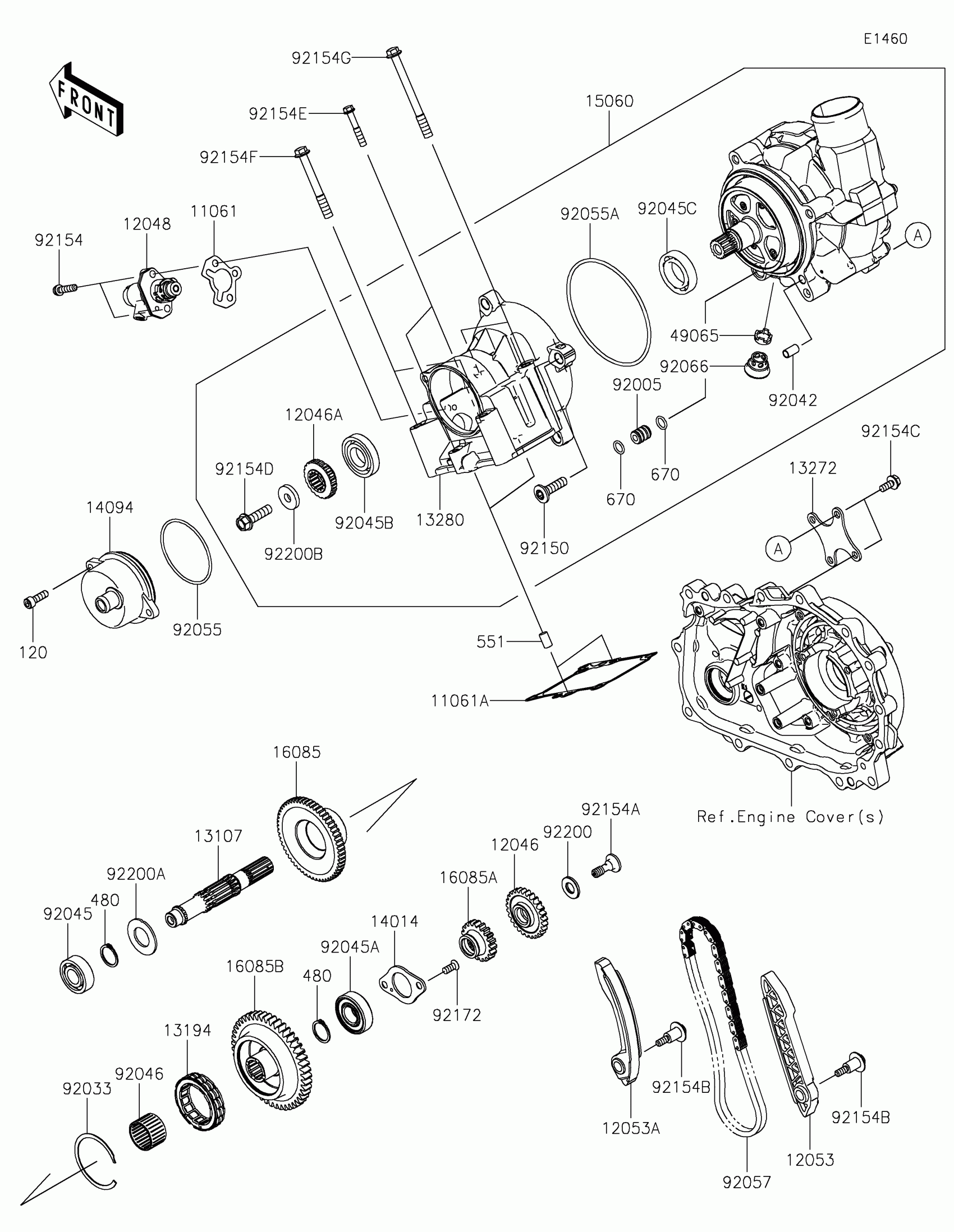

Kawasaki TERYX®5 H2 DELUXE eS Super Charger Diagram

#

Description
Price

11061

GASKET,TENSIONER

11061-1279

$4.41

11061A

GASKET,HOLDER

11061-1641

$20.79

12046

SPROCKET,DRIVE,27T

12046-0673

$97.36

12046A

SPROCKET,DRIVEN,21T

12046-0674

$50.94

12048

TENSIONER-ASSY

12048-0108

$241.75

12053

GUIDE-CHAIN,FIXING

12053-0351

$43.01

12053A

GUIDE-CHAIN,MOVABLE

12053-0358

$144.95

13107

SHAFT

13107-1568

$188.57

13194

CLUTCH-ONEWAY

13194-0027

$100.39

13272

PLATE

13272-4470

$4.88

13280

HOLDER

13280-1421

$342.73

14014

PLATE-POSITION

14014-0587

$19.47

14094

COVER,COMPRESSOR

14094-0265

$81.79

15060

COMPRESSOR-ASSY

15060-0021

$4,125.08

16085

GEAR,LIMITER

16085-0733

$145.12

16085A

GEAR,19T

16085-0742

$117.62

16085B

GEAR,47T

16085-0745

$214.71

49065

FILTER-OIL

49065-0041

$43.69

92005

FITTING,OIL LINE

92005-0769

$22.80

92033

RING-SNAP

92033-3731

$6.16

92042

PIN,DOWEL,6.3X8X14

92042-007

$5.70

92045

BEARING-BALL,6202ZC3

92045-0785

$11.58

92045A

BEARING-BALL

92045-1503

$35.76

92045B

BEARING-BALL

92045-1504

$28.93

92045C

BEARING-BALL

92045-1505

$28.84

92046

BEARING-NEEDLE,RS263020

92046-0004

$24.31

92055

RING-O,2.4X62.6

92055-0790

$3.92

92055A

RING-O,104.4X3.1

92055-1020

$14.23

92057

CHAIN,COMPRESSOR,T112

92057-0968

$75.52

92066

PLUG

92066-0821

$117.50

92150

BOLT,8X30

92150-1728

$4.69

92154

BOLT,SOCKET,6X25

92154-1458

$2.26

92154A

BOLT

92154-1476

$21.18

92154B

BOLT,CVT COVER

92154-1522

$3.26

92154C

BOLT,FLANGED,6X14

92154-3963

$2.32

92154D

BOLT,SOCKET,8X30

92154-7326

$3.02

92154E

BOLT,FLANGED,6X35

92154-7687

$3.25

92154F

BOLT,FLANGED,8X65

92154-7688

$4.44

92154G

BOLT,FLANGED,8X85

92154-7689

$4.97

92172

SCREW,TORX,6X14

92172-0961

$2.55

92200

WASHER,10.3X22X2.5

92200-0958

$11.77

92200A

WASHER

92200-2678

$9.53

92200B

WASHER,8.5X24X4.0

92200-3811

$3.86

120

BOLT-SOCKET,6X20

120CA0620

$1.77

480

CIRCLIP-TYPE-C,20MM

480J2000

$2.71

551

PIN-DOWEL,8X14

551A0814

$1.19

670

O RING,10MM

670D1510

$4.69
