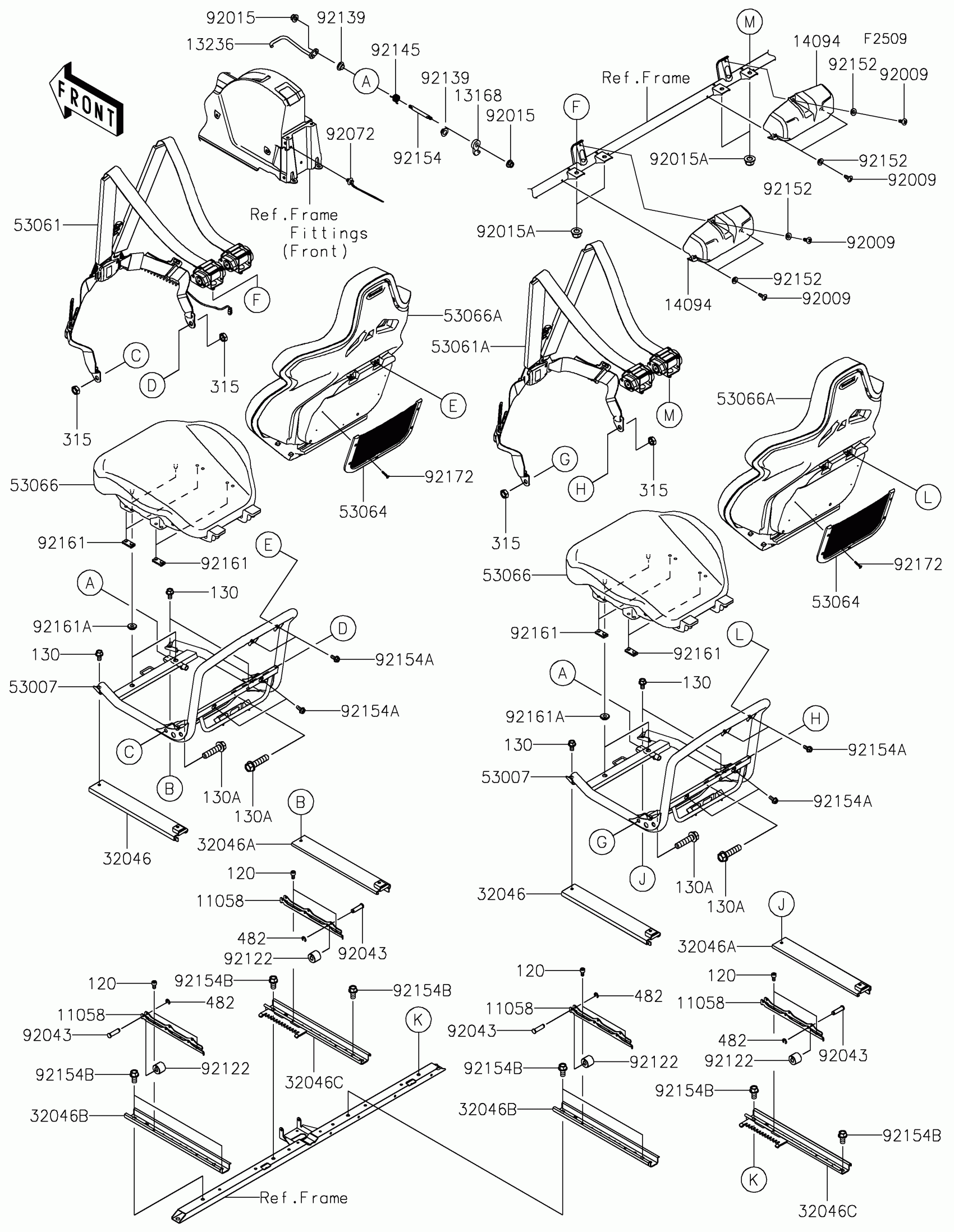

Kawasaki TERYX®5 H2 DELUXE eS Seat(Front) Diagram

#

Description
Price

11058

BRACKET,FR SEAT SLIDE

11058-3995

$8.90

13168

LEVER,FR SEAT SLIDE

13168-0971

$20.87

13236

LEVER-COMP,FR SEAT SLIDE

13236-0875

$23.98

14094

COVER,RETRACTOR

14094-0176

$38.80

32046

BRACKET-SEAT,SLIDE RAIL,UPP,LH

32046-0539

$50.54

32046A

BRACKET-SEAT,SLIDE RAIL,UPP,RH

32046-0540

$50.54

32046B

BRACKET-SEAT,SLIDE RAIL,LWR,LH

32046-0541

$27.10

32046C

BRACKET-SEAT,SLIDE RAIL,LWR,RH

32046-0542

$54.37

53007

FRAME-SEAT,FR

53007-0522

$399.14

53061

BELT-SEAT,DRIVER

53061-0393

$336.30

53061A

BELT-SEAT,PASSENGER

53061-0394

$236.31

53064

NET-CARGO

53064-0021

$23.38

53066

SEAT-ASSY,BOTTOM,D.GRAY+GRY

53066-0941-77F

$277.80

53066A

SEAT-ASSY,FR,BACK,D.GRAY+GRY+G

53066-1130-77E

$442.23

92009

SCREW,TAPPING,6X16

92009-1166

$5.52

92015

NUT,8MM

92015-1432

$6.57

92015A

NUT,LOCK,FLANGED,12MM

92015-1433

$8.86

92043

PIN

92043-0991

$3.04

92072

BAND,OS170-FT7(BLACK)

92072-1414

$3.74

92122

ROLLER

92122-0572

$3.20

92139

BUSHING

92139-0230

$4.61

92145

SPRING,ADJUST LEVER

92145-1858

$8.44

92152

COLLAR,6.3X9.5X4.1

92152-1571

$6.00

92154

BOLT,ADJUST LEVER

92154-3923

$37.01

92154A

BOLT,FLANGED,6X14

92154-3968

$2.00

92154B

BOLT,FLANGED,10X18

92154-7022

$2.73

92161

DAMPER,SEAT

92161-1489

$3.35

92161A

DAMPER,SEAT

92161-2744

$0.86

92172

SCREW,3X14

92172-1544

$0.47

120

BOLT-SOCKET,6X12

120CA0612

$1.71

130

BOLT-FLANGED,8X14

130BA0814

$2.16

130A

BOLT-FLANGED,12X50

130BA1250

$6.75

315

NUT-HEX-FINE,12MM

315BA1200

$1.19

482

CIRCLIP-TYPE-E,4MM

482J4000

$1.35
