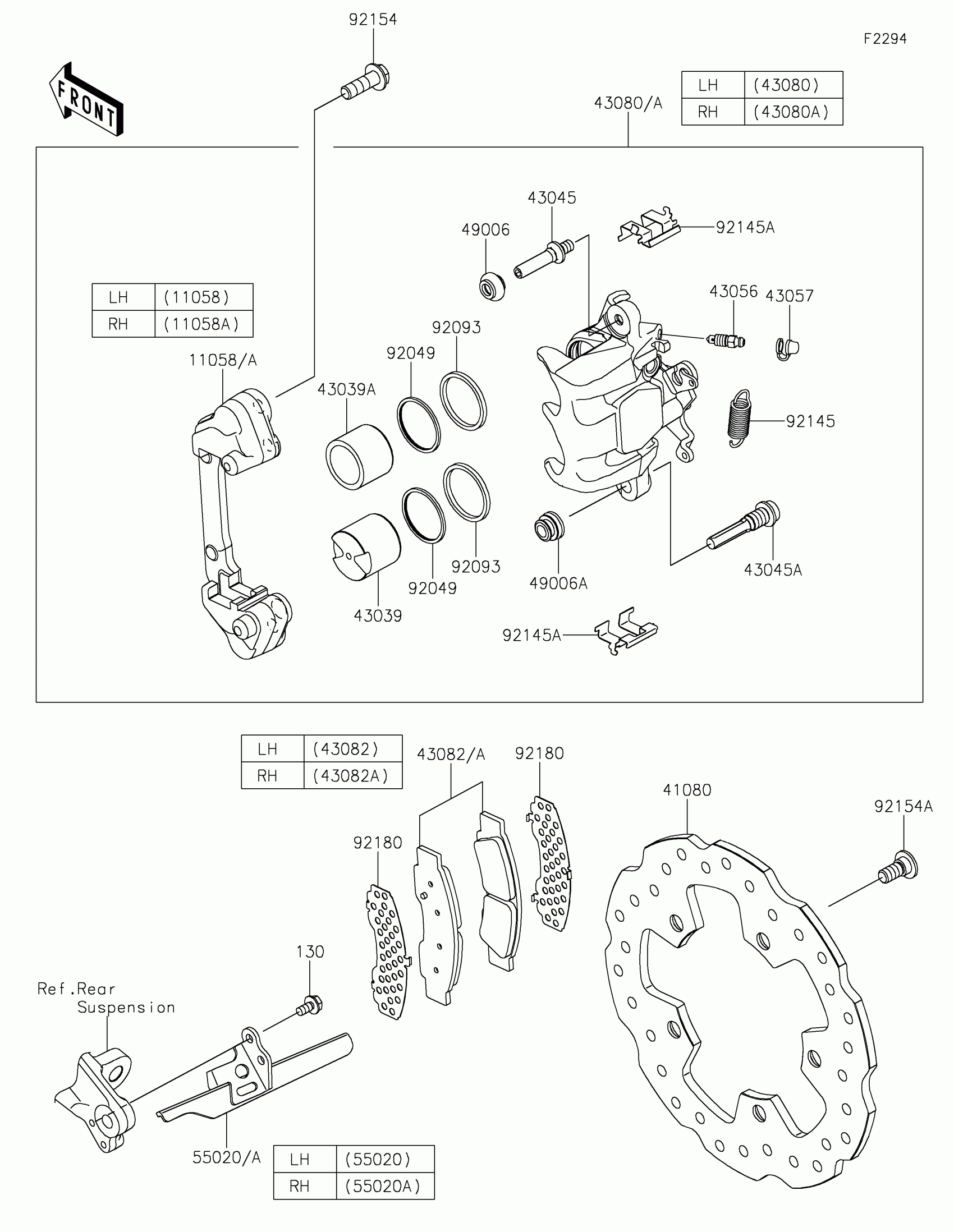

Kawasaki TERYX®5 H2 DELUXE eS Rear Brake Diagram

Description

Price

11058

BRACKET,RR,LH

11058-4483

$72.21

11058A

BRACKET,RR,RH

11058-4484

$72.21

41080

DISC,BRAKE

41080-0789

$298.22

43039

PISTON-BRAKE

43039-0022

$70.89

43039A

PISTON-BRAKE

43039-0032

Unavailable

43045

SHAFT-CALIPER

43045-0017

$17.26

43045A

SHAFT-CALIPER

43045-0018

$17.26

43056

BREATHER-BRAKE

43056-0055

$12.73

43057

CAP-BREATHER

43057-0552

$5.01

43080

CALIPER-SUB-ASSY,RR,LH

43080-0274

$589.47

43080A

CALIPER-SUB-ASSY,RR,RH

43080-0275

$589.47

43082

PAD-ASSY-BRAKE

43082-0237

$242.39

43082A

PAD-ASSY-BRAKE

43082-0238

$242.39

49006

BOOT

49006-0566

$5.24

49006A

BOOT

49006-0624

$3.73

55020

GUARD,RR-CALIPER,LH

55020-2268

$10.54

55020A

GUARD,RR-CALIPER,RH

55020-2269

$10.54

92049

SEAL-OIL

92049-0830

$8.71

92093

SEAL

92093-0743

$8.71

92145

SPRING,RETURN,47MM

92145-1690

$5.24

92145A

SPRING

92145-2488

$7.91

92154

BOLT,FLANGED,10X30

92154-0543

$9.43

92154A

BOLT,SOCKET,10X23

92154-0713

$4.10

92180

SHIM

92180-1719

$15.18

130

BOLT-FLANGED,6X12

130CA0612

$3.96
