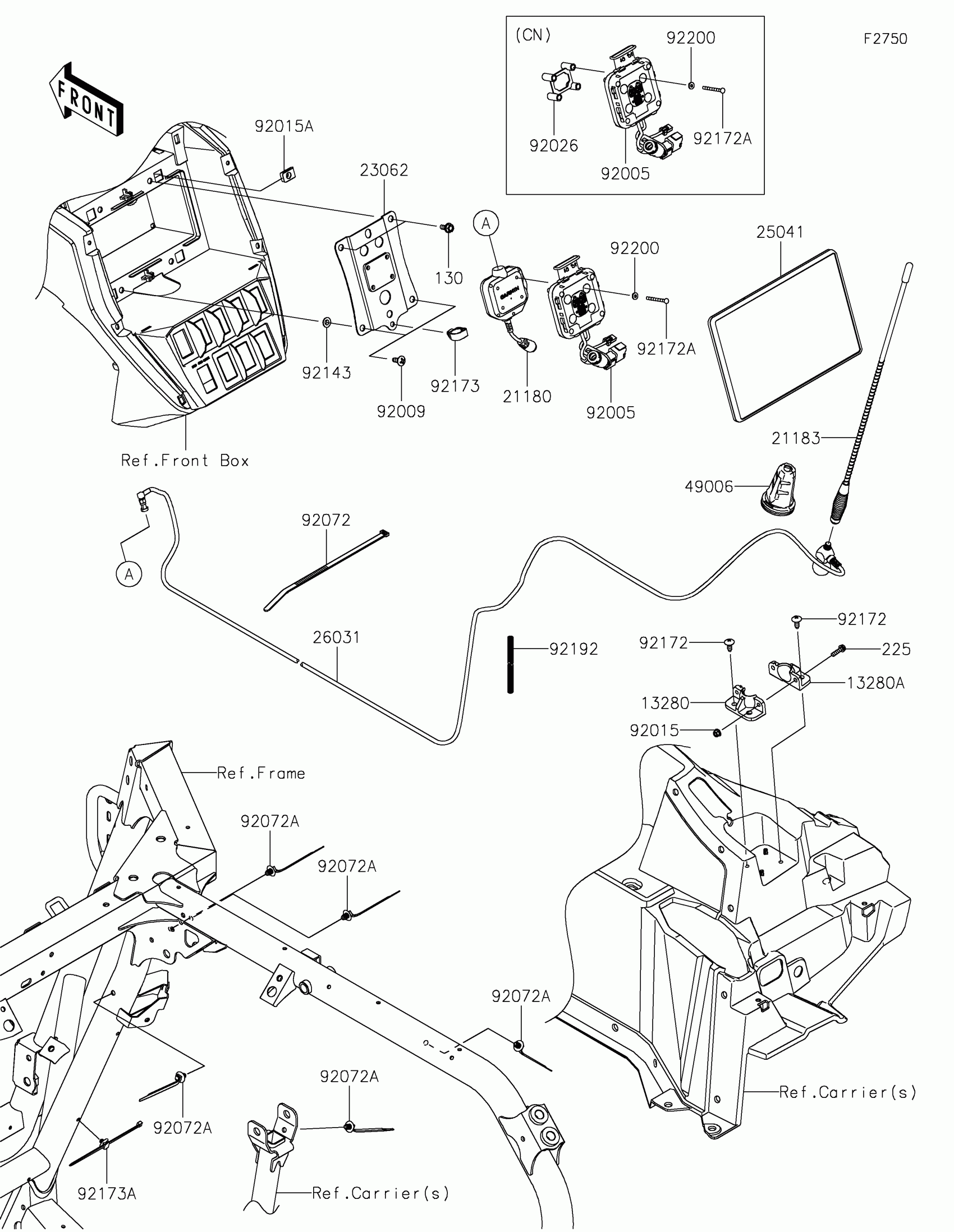

Kawasaki TERYX®5 H2 DELUXE eS Other(Display) Diagram

Description

Price

13280

HOLDER,ANTENNA,LH

13280-1359

$3.78

13280A

HOLDER,ANTENNA,RH

13280-1360

$3.78

21180

TRANSCEIVER,DISPLAY

21180-0006

$551.79

21183

ANTENNA,DISPLAY

21183-0028

$43.60

23062

BRACKET-COMP,DISPLAY

23062-1567

$20.07

25041

DISPLAY-MULTI-FUNCTION

25041-0004

$1,673.98

49006

BOOT,ANTENNA

49006-0664

$2.49

92005

FITTING,DISPLAY

92005-1460

$339.48

92009

SCREW,TAPPING,6X16

92009-1166

$4.18

92015

NUT,6MM

92015-1602

$5.61

92015A

NUT,LOCK,FLANGED,5MM

92015-1752

$3.29

92026

SPACER,DISPLAY

92026-0966

$33.24

92072

BAND,L=188

92072-1239

$1.30

92072A

BAND,OS170-FT7(BLACK)

92072-1414

$2.84

92143

COLLAR

92143-1331

$3.01

92172

SCREW,6X16

92172-0284

$0.90

92172A

SCREW,4X40

92172-1092

$0.85

92173

CLAMP,HOLDER CLIP

92173-0868

$2.11

92173A

CLAMP

92173-2792

$1.59

92192

TUBE,CONVOLUTED,5.2X7.8X1830

92192-2850

$5.66

92200

WASHER,4X9.5X1.2

92200-2711

$32.53

130

BOLT-FLANGED,6X14

130BA0614

$0.97

225

SCREW-PAN-WSP-CROS,5X20

225AA0520

$0.63
