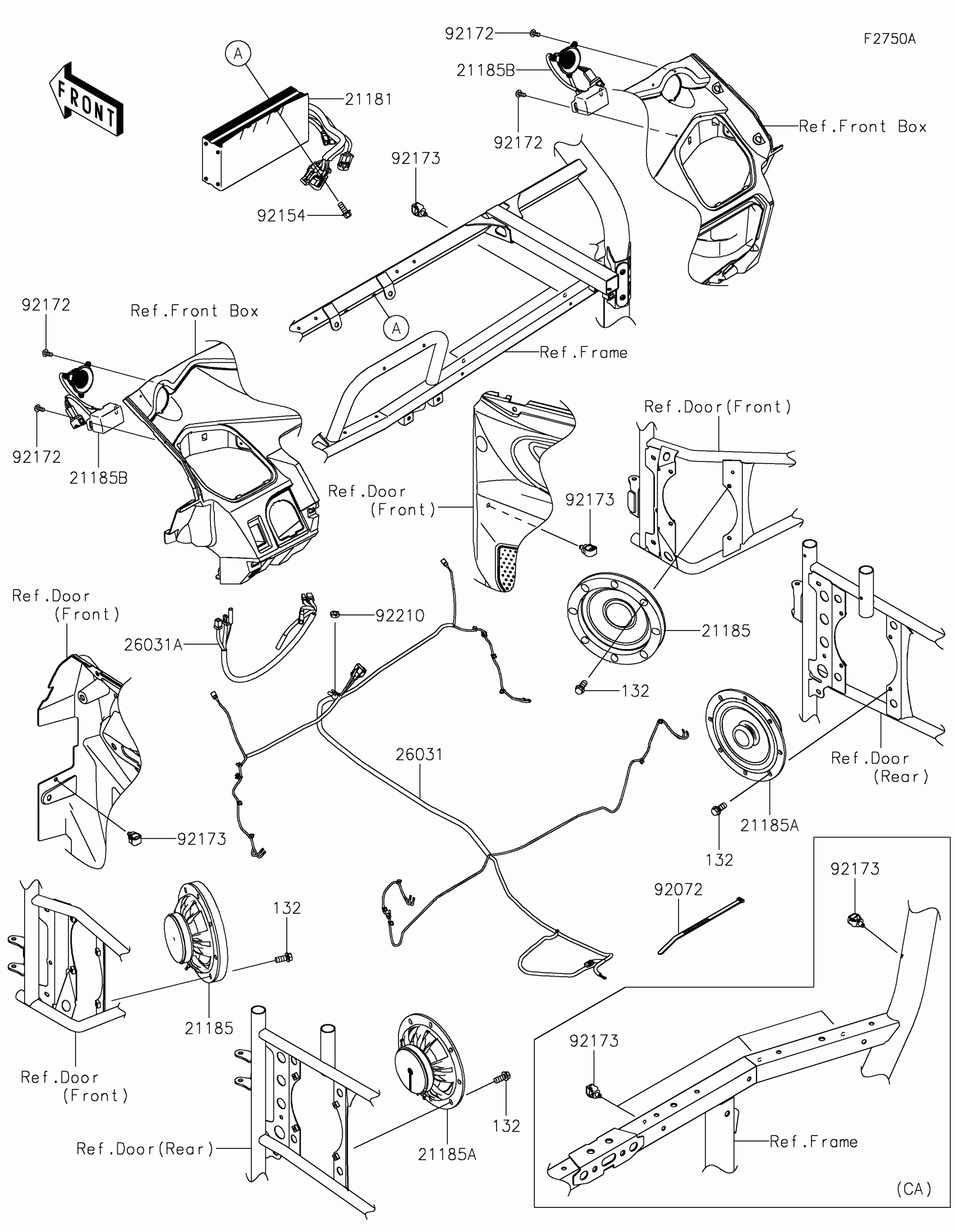

Kawasaki TERYX®5 H2 DELUXE eS Other(Audio System) Diagram

Description

Price

21181

AMPLIFIER,AUDIO

21181-0031

$434.36

21185

SPEAKER,FR DOOR

21185-0029

$46.01

21185A

SPEAKER,RR DOOR

21185-0030

$72.83

21185B

SPEAKER,TWEETER

21185-0033

$73.34

26031

HARNESS,AUDIO MAIN

26031-4482

$93.63

26031A

HARNESS,AUDIO SUB

26031-4483

$40.42

92072

BAND,L=188

92072-1239

$1.30

92154

BOLT,FLANGED,8X20

92154-1226

$0.85

92172

SCREW,CROS,4X10

92172-1248

$1.19

92173

CLAMP,12MM DIA.

92173-0736

$3.85

132

BOLT-FLANGED-SMALL,6X14

132BA0614

$1.13

92173

CLAMP,12MM DIA.

92173-0736

$3.85
