Partiron

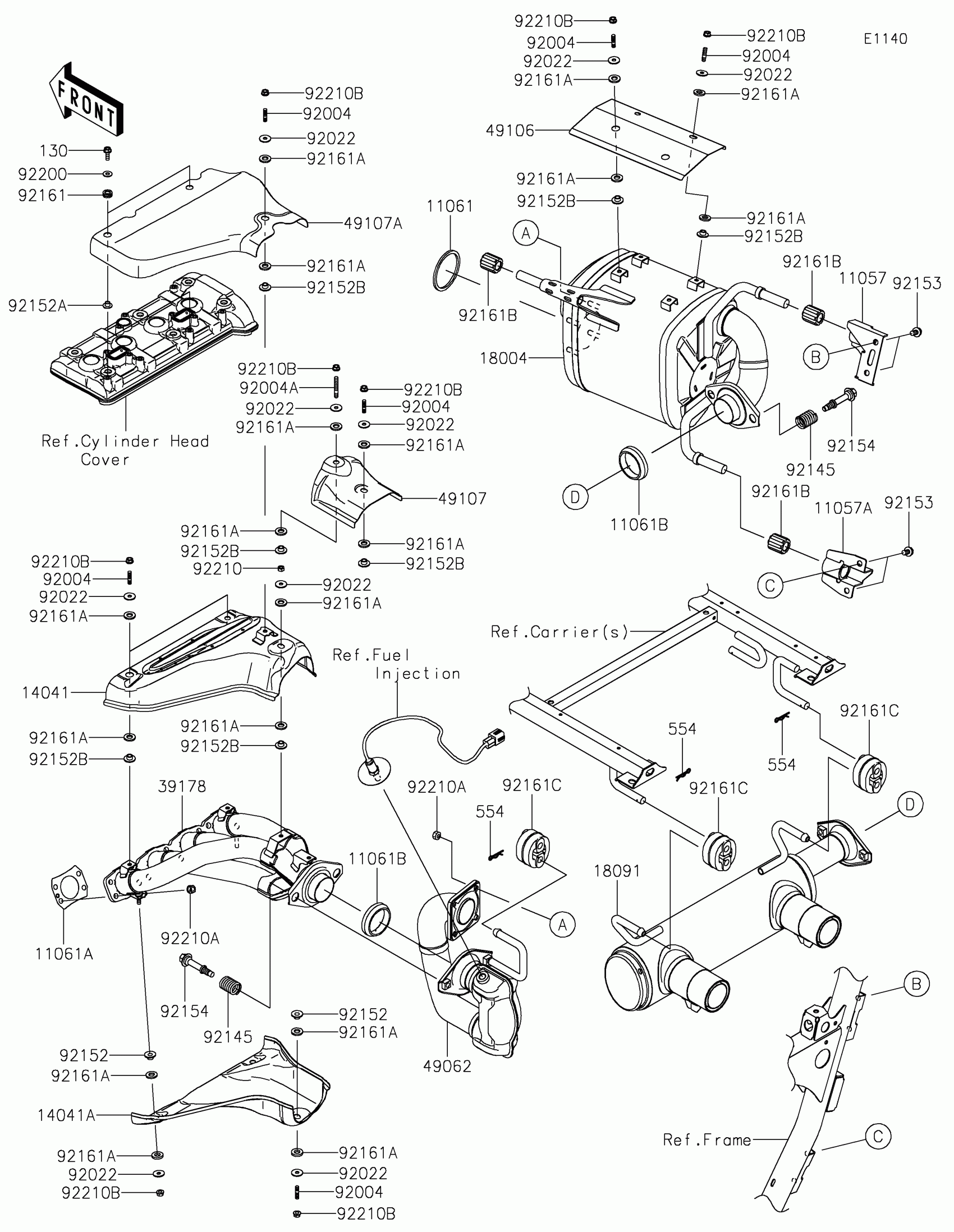

Kawasaki TERYX®5 H2 DELUXE eS Muffler(s) Diagram

#

Description
Price

11057

BRACKET,FRM-MUFFLER/RR/UPP

11057-3722

$30.22

11057A

BRACKET,FRM-MUFFLER/RR/LWR

11057-3723

$28.44

11061

GASKET,EXHAUST PIPE-MUFFLER

11061-1311

$12.12

11061A

GASKET,CYL.HEAD-EXHAUST PIPE

11061-1472

$14.92

11061B

GASKET,EXHAUST PIPE-MUFFLER

11061-1473

$46.51

14041

COVER-COMP,EXHAUST PIPE,INNER

14041-0659

$182.49

14041A

COVER-COMP,EXHAUST PIPE,LWR

14041-0660

$147.59

18004

CHAMBER-PREMUFFLER

18004-0129

$1,061.25

18091

BODY-COMP-MUFFLER

18091-1330

$475.82

39178

MANIFOLD-COMP-EXHAUST

39178-0499

$1,186.89

49062

PIPE-COMP-EXHAUST

49062-0752

$937.21

49106

COVER-MUFFLER

49106-0895

$46.22

49107

COVER-EXHAUST PIPE

49107-0888

$24.88

49107A

COVER-EXHAUST PIPE,OUTER

49107-0902

$78.92

92004

STUD,6X18

92004-0799

$1.36

92004A

STUD

92004-0819

$4.55

92022

WASHER,6.5X20X1.5

92022-3710

$3.65

92145

SPRING

92145-2262

$9.27

92152

COLLAR

92152-0181

$4.60

92152A

COLLAR,6.3X8.3X16

92152-0286

$5.65

92152B

COLLAR

92152-0423

$3.90

92153

BOLT,FLANGED,8X14

92153-0931

$2.97

92154

BOLT,MUFFLER

92154-4485

$8.99

92161

DAMPER

92161-0308

$3.90

92161A

DAMPER

92161-0319

$3.90

92161B

DAMPER

92161-2274

$4.10

92161C

DAMPER

92161-2466

$25.14

92200

WASHER,6.5X16X1.0

92200-3712

$3.73

92210

NUT,6MM

92210-1100

$2.34

92210A

NUT,8MM

92210-1242

$2.41

92210B

NUT,6MM

92210-1787

$1.11

130

BOLT-FLANGED,6X18

130BD0618

$0.86

554

PIN-SNAP,12MM

554DA1200

$3.96
