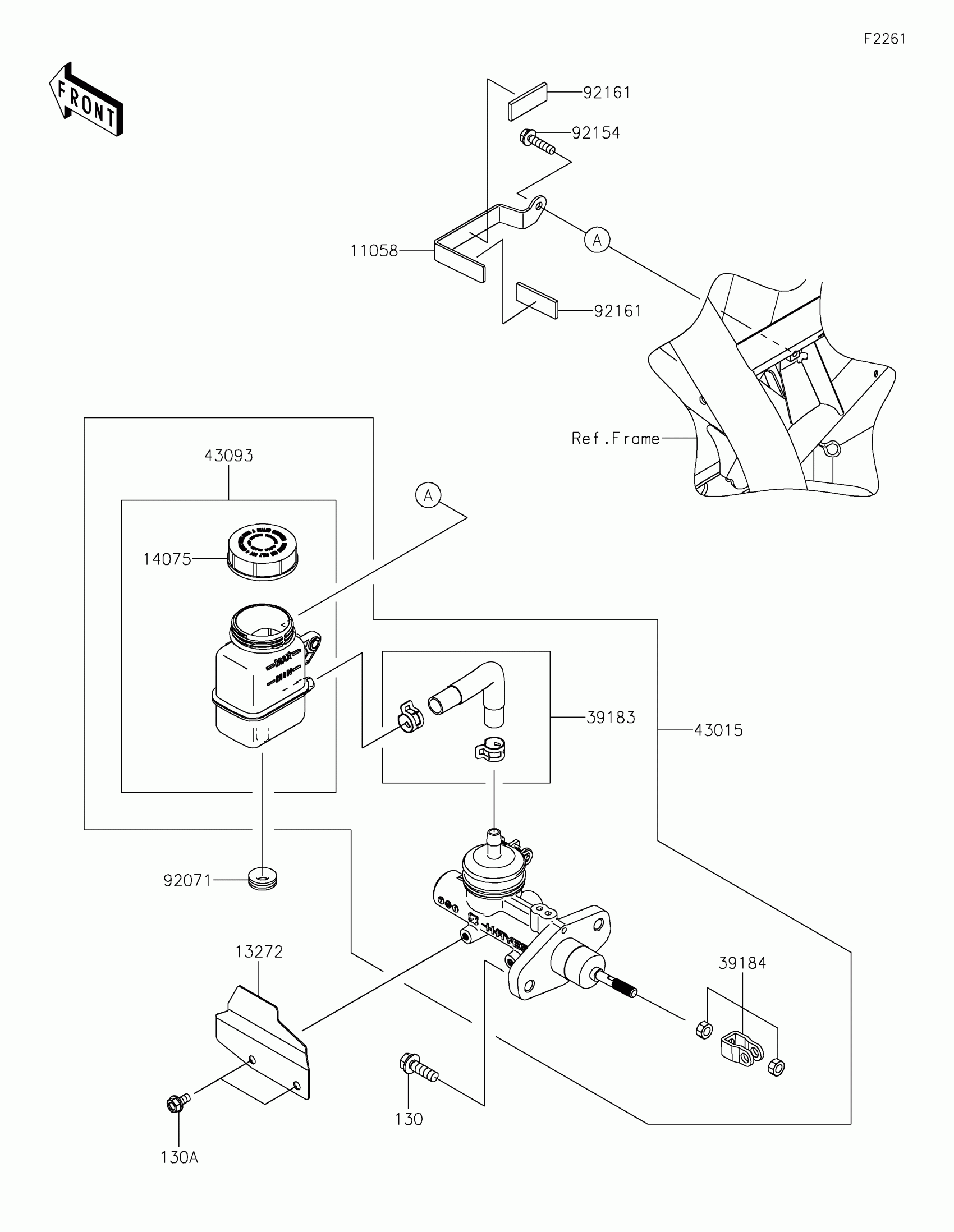

Kawasaki TERYX®5 H2 DELUXE eS Master Cylinder Diagram

Description

Price

11058

BRACKET,RESERVOIR TANK

11058-7196

$5.85

13272

PLATE,MASTER CYLINDER

13272-4451

$14.34

14075

CAP-ASSY

14075-0038

$41.90

39183

BAND-ASSY,RESERVOIR HOSE

39183-0011

$14.63

39184

BRACKET-ASSY

39184-0031

$21.27

43015

CYLINDER-ASSY-MASTER

43015-0811

$209.14

43093

RESERVOIR-ASSY-TANK

43093-0018

$84.06

92071

GROMMET

92071-1115

$4.14

92154

BOLT,FLANGED,6X25

92154-0707

$0.95

92161

DAMPER,16X40X3

92161-2817

$1.71

130

BOLT-FLANGED,8X25

130BA0825

$2.01

130A

BOLT-FLANGED,6X12

130CA0612

$3.02
