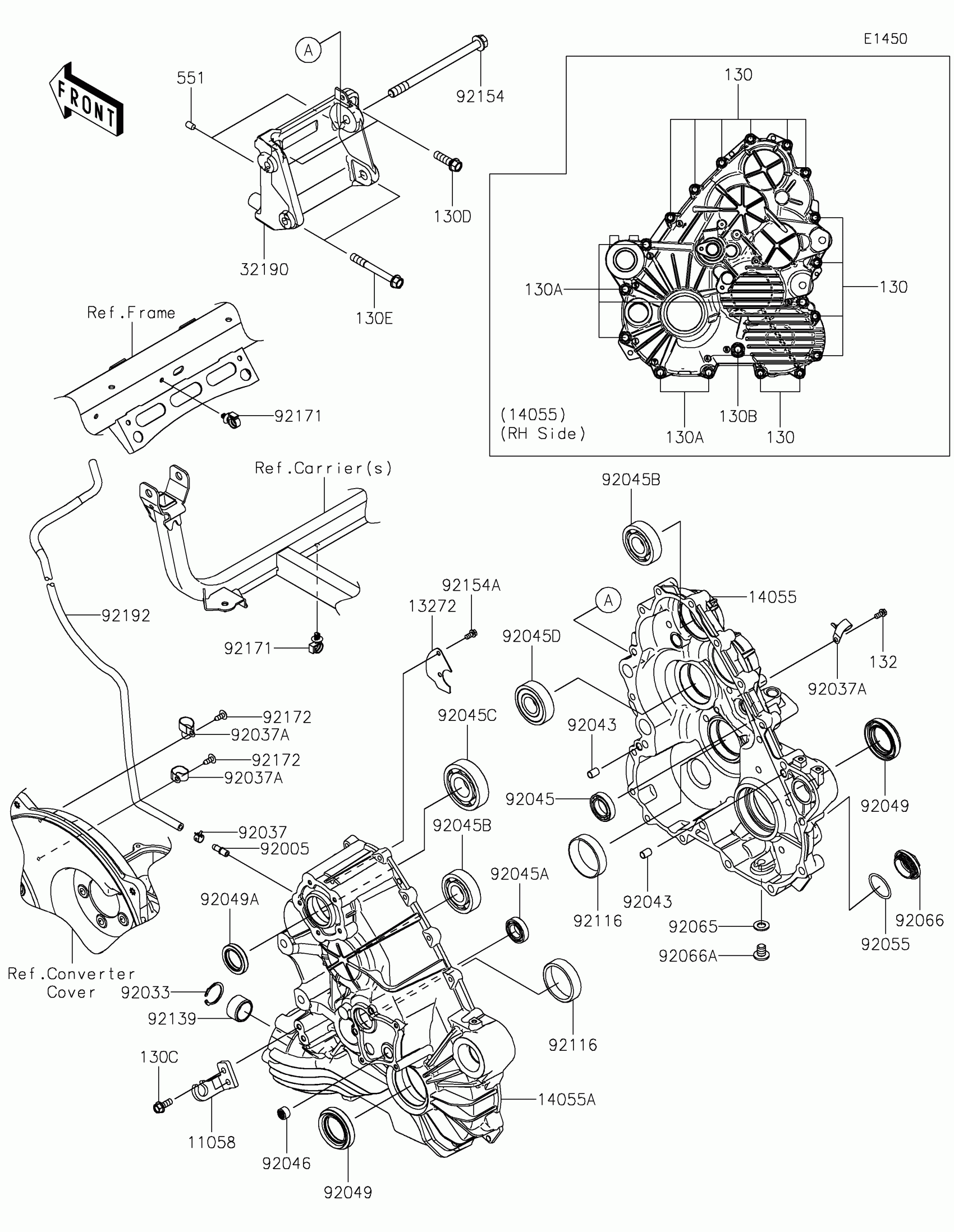

Kawasaki TERYX®5 H2 DELUXE eS Gear Box Diagram

#

Description
Price

11058

BRACKET,CABLE

11058-0560

$5.86

13272

PLATE

13272-4342

$1.63

14055

CASE-GEAR,RH

14055-0676

$366.73

14055A

CASE-GEAR,LH

14055-0677

$618.42

32190

BRACKET-ENGINE

32190-0955

$153.49

92005

FITTING,BREATHER

92005-1127

$17.17

92033

RING-SNAP

92033-0856

$3.27

92037

CLAMP,TUBE

92037-1505

$4.76

92037A

CLAMP

92037-1993

$5.52

92043

PIN,DOWEL,10X14

92043-1037

$0.74

92045

BEARING-BALL,#6905

92045-036

$27.88

92045A

BEARING-BALL,6904

92045-0705

$22.42

92045B

BEARING-BALL,6305RSH2

92045-0899

$32.73

92045C

BEARING-BALL

92045-0999

$42.24

92045D

BEARING-BALL

92045-1458

$43.93

92046

BEARING-NEEDLE,HK1210FM

92046-0034

$15.63

92049

SEAL-OIL,TC9Y 40X62X10X17.2

92049-0815

$13.57

92049A

SEAL-OIL,HTC 30X45X8

92049-0848

$16.41

92055

RING-O,35.8MM

92055-1281

$7.34

92065

GASKET,12X22X2

92065-097

$0.74

92066

PLUG,36X7.5

92066-0744

$8.22

92066A

PLUG,12X15

92066-0943

$18.22

92116

BEARING-ROLLER,HC30305J

92116-0011

$9.98

92139

BUSHING

92139-1283

$57.28

92154

BOLT,12X175

92154-3859

$18.55

92154A

BOLT,FLANGED,6X12

92154-4349

$1.84

92171

CLAMP

92171-0453

$3.54

92172

SCREW,6X16

92172-0284

$1.34

92192

TUBE,5.8X10.8X1000

92192-2765

$26.11

130

BOLT-FLANGED,8X45

130BA0845

$1.61

130A

BOLT-FLANGED,10X55

130BA1055

$2.31

130B

BOLT-FLANGED,10X90

130BB1090

$3.63

130C

BOLT-FLANGED,8X20

130CA0820

$1.71

130D

BOLT-FLANGED,10X35

130CA1035

$6.75

130E

BOLT-FLANGED,10X85

130CA1085

$3.00

132

BOLT-FLANGED-SMALL,6X12

132BA0612

$1.20

551

PIN-DOWEL,8X12

551A0812

$3.29
