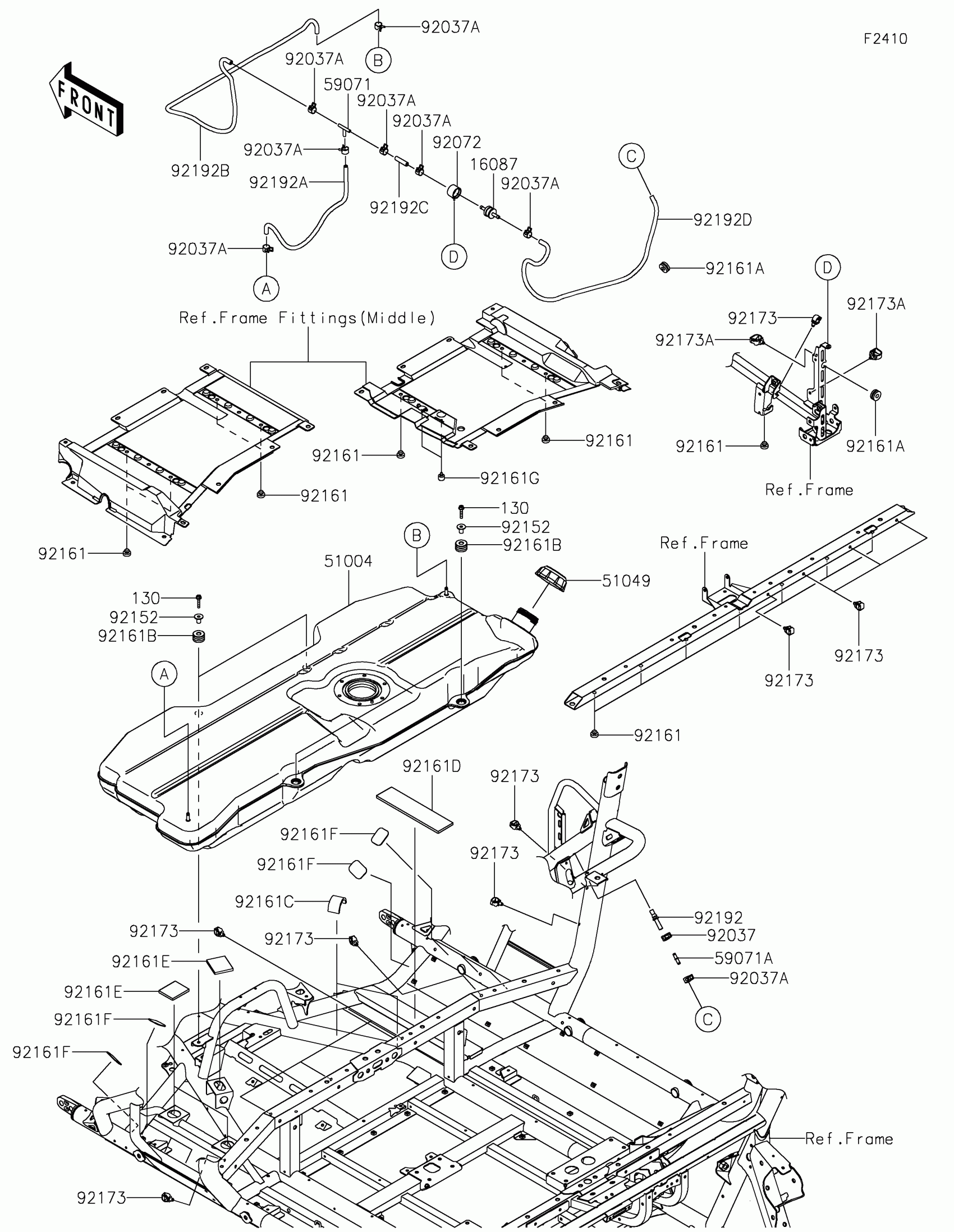

Kawasaki TERYX®5 H2 DELUXE eS Fuel Tank(CN,US) Diagram

Description

Price

16087

VALVE-CHECK

16087-0008

$37.65

51004

TANK-FUEL

51004-0716

$469.29

51049

CAP-TANK,FUEL

51049-0718

$64.67

59071

JOINT

59071-3705

$4.91

59071A

JOINT

59071-3717

$3.55

92037

CLAMP,TUBE

92037-1461

$3.88

92037A

CLAMP

92037-2113

$1.03

92072

BAND

92072-0850

$4.99

92152

COLLAR,6.8X10X18.1

92152-1867

$5.23

92161

DAMPER

92161-0046

$9.43

92161A

DAMPER,10X26X11.5

92161-1691

$1.06

92161B

DAMPER,TANK

92161-2178

$1.17

92161C

DAMPER,TANK FRAME PIPE

92161-2179

$1.73

92161D

DAMPER,TANK LOWER

92161-2253

$10.97

92161E

DAMPER,60X50X6.35

92161-2587

$5.58

92161F

DAMPER,45X35X1.5

92161-2600

$4.46

92161G

DAMPER,FUEL PUMP

92161-2775

$5.80

92173

CLAMP,12MM DIA.

92173-0736

$5.05

92173A

CLAMP

92173-0861

$3.02

92192

TUBE,FRAME PIPE-CHECK VALVE

92192-0068

$10.90

92192A

TUBE,BREATHER,LH

92192-2767

$24.37

92192B

TUBE,BREATHER,RH

92192-2768

$25.78

92192C

TUBE,5X10X40

92192-2770

$1.01

92192D

TUBE,VALVE-FRAME

92192-2887

$29.76

130

BOLT-FLANGED,6X30

130BA0630

$1.46
