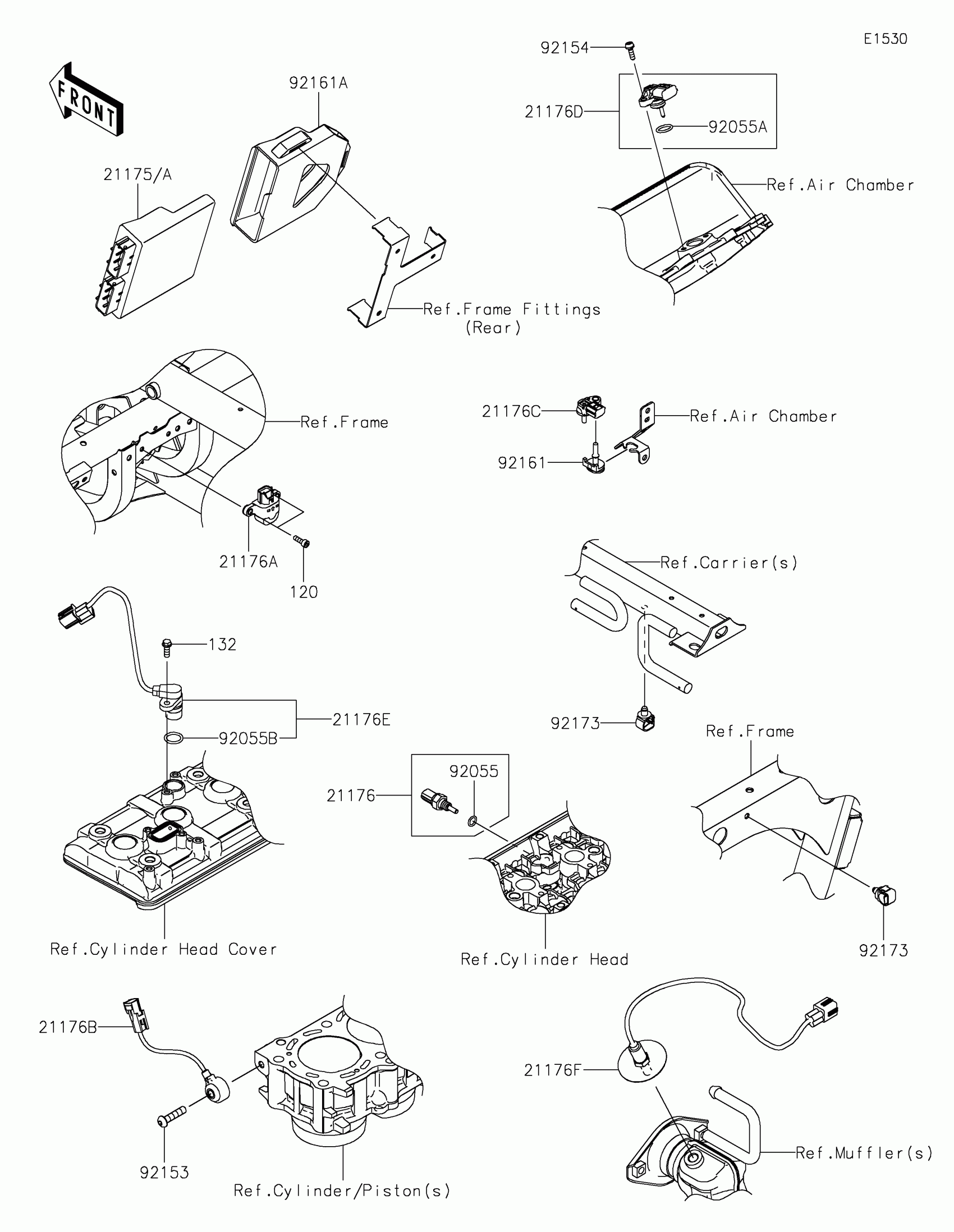

Kawasaki TERYX®5 H2 DELUXE eS Fuel Injection Diagram

Description

Price

21175

CONTROL UNIT-ELECTRONIC

21175-2136

$1,092.76

21175A

CONTROL UNIT-ELECTRONIC

21175-2137

$1,092.76

21176

SENSOR,WATER TEMP

21176-0009

$69.24

21176A

SENSOR,VEHICLE-DOWN

21176-0026

$86.97

21176B

SENSOR,KNOCK

21176-0788

$133.37

21176C

SENSOR,PRESSURE

21176-0937

$222.28

21176D

SENSOR,INTAKE TEMP&PRESSURE

21176-0982

$140.35

21176E

SENSOR

21176-1077

$102.13

21176F

SENSOR,OXYGEN

21176-1234

$232.80

92055

RING-O,9.5X1.9

92055-0016

$8.89

92055A

RING-O

92055-0842

$6.63

92055B

RING-O

92055-1639

$3.09

92153

BOLT,SOCKET,8X35

92153-0419

$3.26

92154

BOLT,SOCKET,5X16

92154-1449

$1.19

92161

DAMPER

92161-0673

$5.54

92161A

DAMPER,ECU

92161-2495

$11.96

92173

CLAMP,12MM DIA.

92173-0736

$5.05

120

BOLT-SOCKET,5X16

120CA0516

$2.15

132

BOLT-FLANGED-SMALL,6X16

132BA0616

$1.51
