Description

Price

11058

BRACKET,FR STABILIZER,RH

11058-3968

$9.85

11058A

BRACKET,FR STABILIZER,LH

11058-3969

$9.85

11065

CAP,ARM

11065-1522

$3.16

13272

PLATE,FR KNUCKLE

13272-7279

$90.58

35034

REINFORCE,FR UPPER ARM,FR

35034-0623

$9.55

35034A

REINFORCE,FR UPPER ARM,RR

35034-0624

$9.70

35034B

REINFORCE,FR LOWER ARM,FR

35034-0626

$16.11

39007

ARM-SUSP,FR,LWR,LH,P.L.GREEN

39007-0518-66C

$317.68

39007A

ARM-SUSP,FR,LWR,RH,P.L.GREEN

39007-0519-66C

$317.68

39007B

ARM-SUSP,FR,UPP,LH,P.L.GREEN

39007-0534-66C

$378.19

39007C

ARM-SUSP,FR,UPP,RH,P.L.GREEN

39007-0535-66C

$378.19

39186

KNUCKLE,FR,LH

39186-0353

$211.36

39186A

KNUCKLE,FR,RH

39186-0354

$211.36

42036

SLEEVE,12.1X22X76

42036-0836

$35.18

46102

ROD,STABILIZER,LH

46102-0689

$46.79

46102A

ROD,STABILIZER,RH

46102-0690

$46.79

59266

JOINT-BALL

59266-0772

$27.30

59437

STABILIZER,FR

59437-0034

$168.09

92045

BEARING-BALL,45X84X45

92045-1478

$235.35

92139

BUSHING

92139-0937

$8.22

92154

BOLT,TORX,8X16

92154-7703

$2.71

92161

DAMPER

92161-2413

$3.24

92200

WASHER,14.2X28X1.5

92200-0217

$3.90

92200A

WASHER,10.3X23X1.6

92200-0724

$3.74

92210

NUT,CASTLE,14MM

92210-0104

$5.52

92210A

NUT,LOCK,FLANGED,10MM

92210-1080

$10.28

99999

KIT,A-ARM FRAME BOLT

99999-0982

$24.59

130

BOLT-FLANGED,10X16

130CA1016

$3.35

480

CIRCLIP

480J4500

$3.37

550

PIN-COTTER,3.0X25

550AA3025

$0.62

670

O RING,18MM

670B2018

$1.42

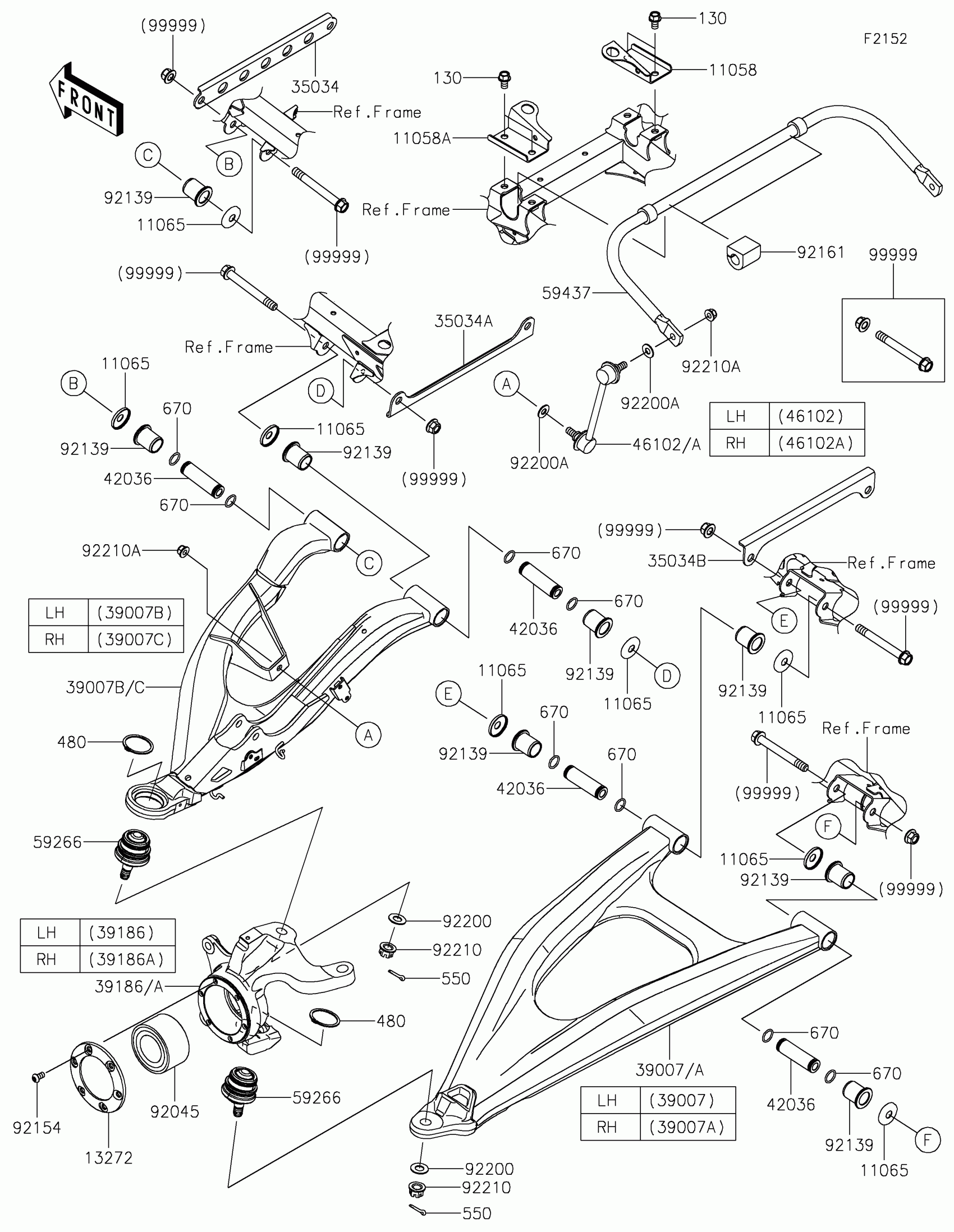

Kawasaki TERYX®5 H2 DELUXE eS Front Suspension Diagram
