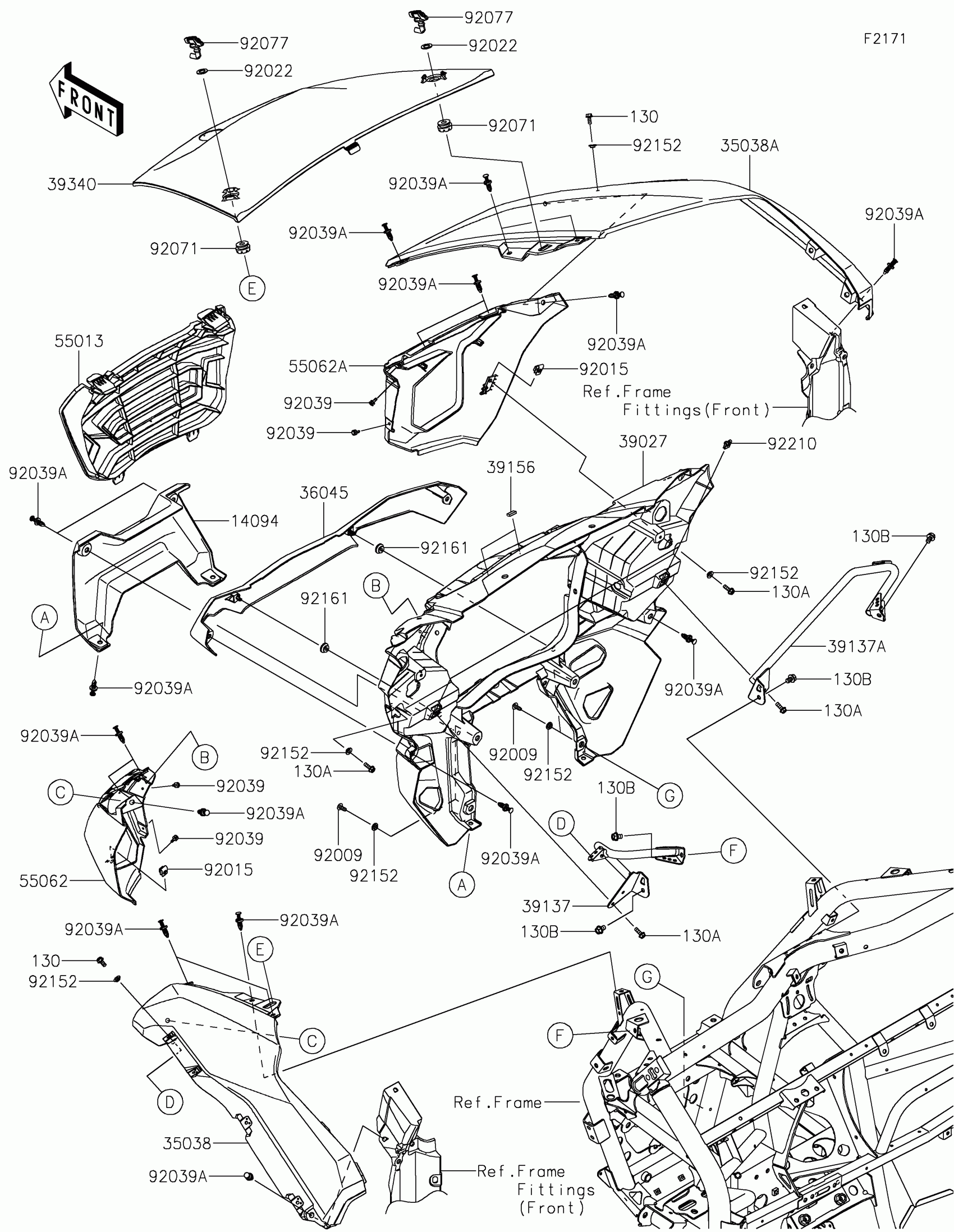

Kawasaki TERYX®5 H2 DELUXE eS Front Fender(s) Diagram

Description

Price

14094

COVER,WINCH

14094-0197

$11.14

35038

FENDER-FRONT,LH,L.GREEN

35038-0058-777

$113.54

35038A

FENDER-FRONT,RH,L.GREEN

35038-0059-777

$113.54

36045

PANEL-DECORATION,FR,L.GREEN

36045-0003-777

$16.96

39027

BUMPER-FRONT

39027-0012

$55.93

39137

STAY-COMP,FR FENDER,LH

39137-0756

$70.64

39137A

STAY-COMP,FR FENDER,RH

39137-0757

$70.64

39156

PAD,18X8X4

39156-1921

$1.84

39340

HOOD,F.EBONY

39340-0005-45L

$356.58

55013

COVER,FR GRILLE,BLACK

55013-0002-6Z

$17.71

55062

COVER-HEAD LAMP,LH,L.GREEN

55062-0001-777

$15.92

55062A

COVER-HEAD LAMP,RH,L.GREEN

55062-0002-777

$15.92

92009

SCREW,TAPPING,6X16

92009-1166

$5.52

92015

NUT,6MM

92015-1602

$7.34

92022

WASHER,12.5X22X1.2

92022-072

$3.92

92039

RIVET

92039-0046

$3.90

92039A

RIVET

92039-0865

$0.77

92071

GROMMET

92071-0746

$1.16

92077

KNOB

92077-0033

$3.04

92152

COLLAR,6.3X9.5X4.1

92152-1571

$6.00

92161

DAMPER

92161-1531

$3.02

92210

NUT

92210-1125

$4.76

130

BOLT-FLANGED,6X14

130BA0614

$1.20

130A

BOLT-FLANGED,6X18

130BA0618

$1.54

130B

BOLT-FLANGED,8X12

130BA0812

$0.95
