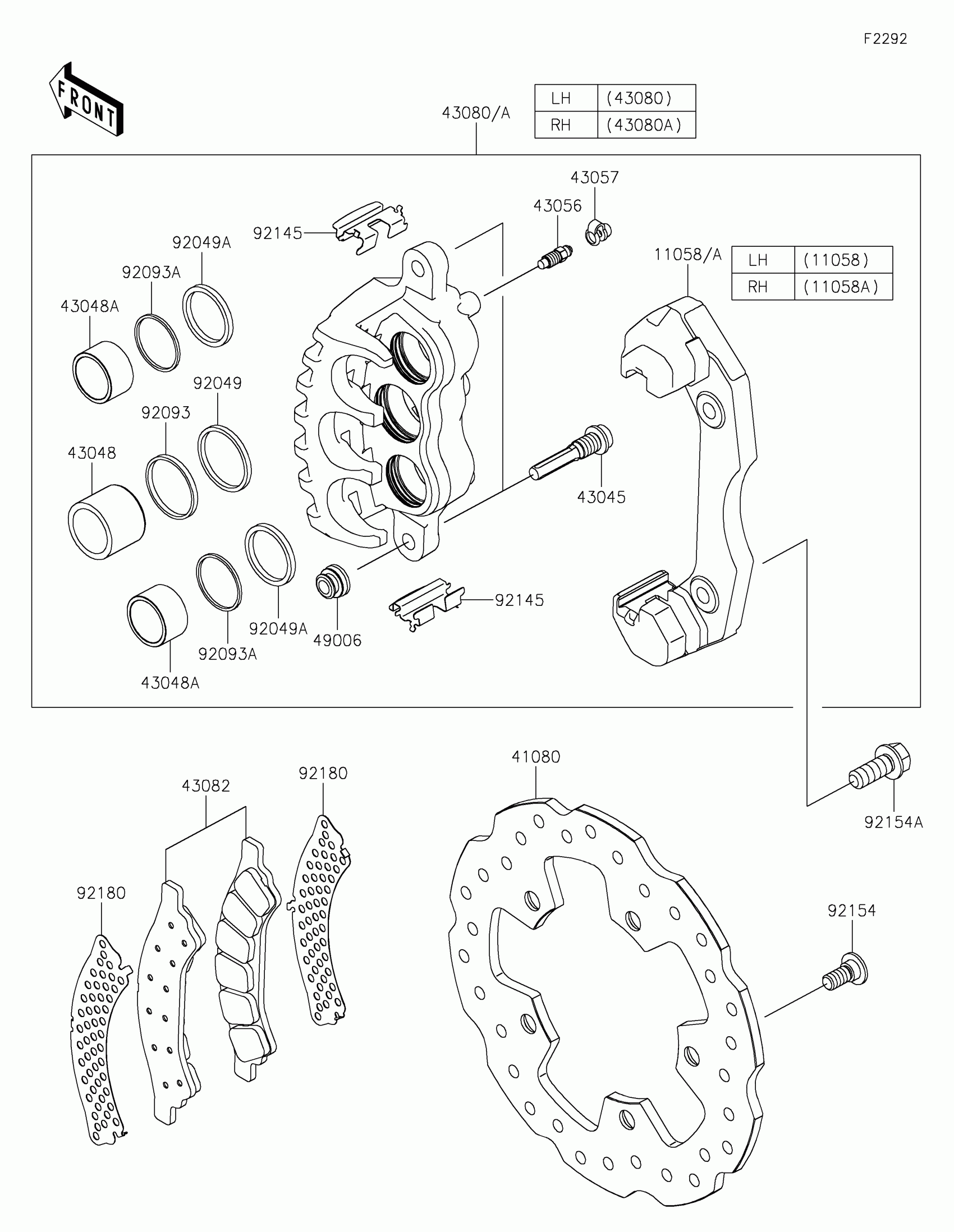

Kawasaki TERYX®5 H2 DELUXE eS Front Brake Diagram

Description

Price

11058

BRACKET,FR,LH

11058-4481

$81.44

11058A

BRACKET,FR,RH

11058-4482

$81.44

41080

DISC,BRAKE

41080-0789

$304.41

43045

SHAFT-CALIPER

43045-0018

$13.02

43048

PISTON-CALIPER

43048-0052

$20.78

43048A

PISTON-CALIPER

43048-0053

$20.78

43056

BREATHER-BRAKE

43056-0055

$12.15

43057

CAP-BREATHER

43057-0552

$3.82

43080

CALIPER-SUB-ASSY,FR,LH

43080-0272

$445.28

43080A

CALIPER-SUB-ASSY,FR,RH

43080-0273

$445.28

43082

PAD-ASSY-BRAKE

43082-0236

$247.53

49006

BOOT

49006-0624

$3.29

92049

SEAL-OIL

92049-0830

$6.65

92049A

SEAL-OIL

92049-0908

$7.17

92093

SEAL

92093-0743

$6.65

92093A

SEAL

92093-0866

$8.10

92145

SPRING

92145-2487

$5.46

92154

BOLT,SOCKET,10X23

92154-0713

$3.13

92154A

BOLT,FLANGED,12X30

92154-7322

$4.59

92180

SHIM

92180-1718

$17.78
