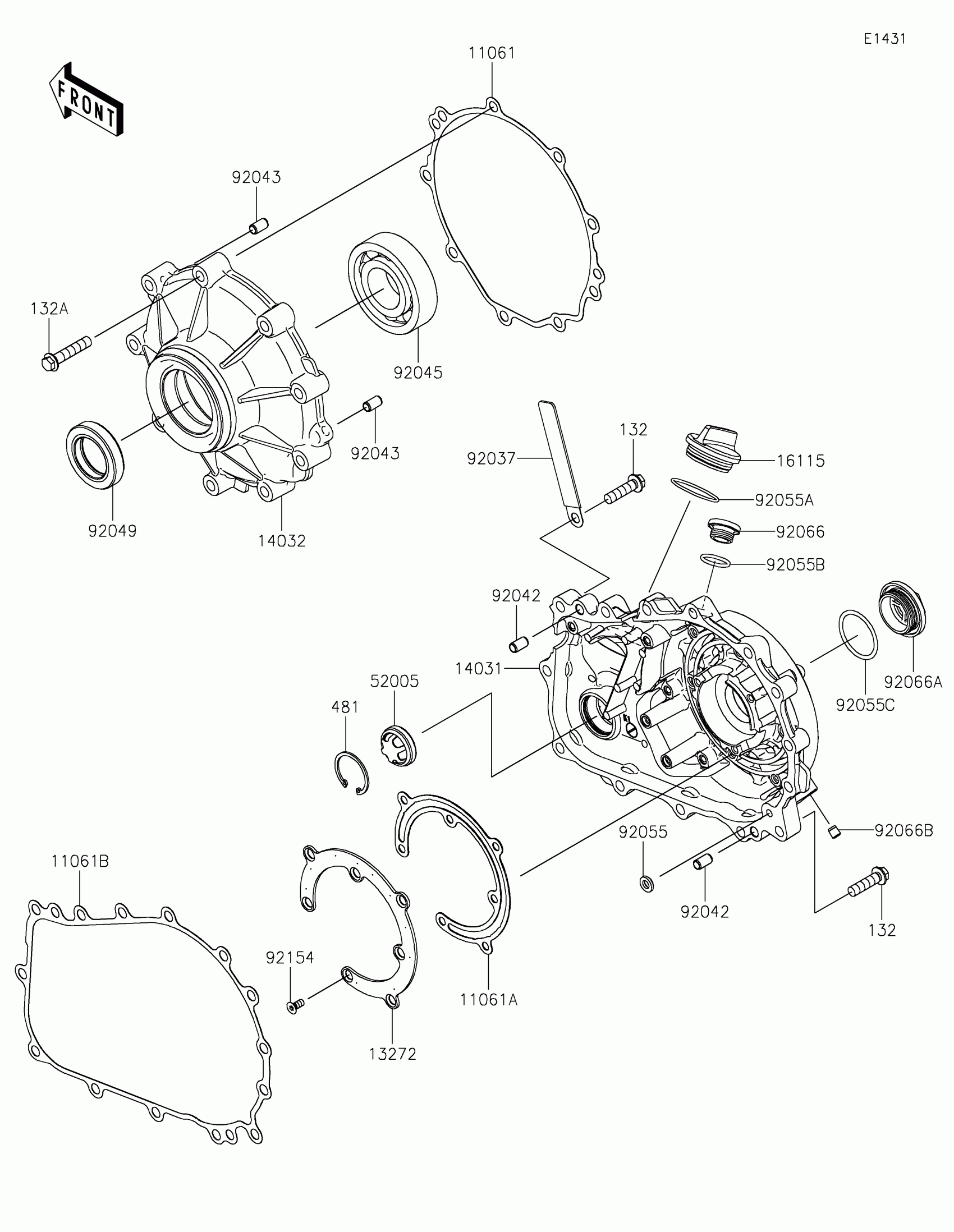

Kawasaki TERYX®5 H2 DELUXE eS Engine Cover(s) Diagram

Description

Price

11061

GASKET,CLUTCH COVER

11061-1451

$35.78

11061A

GASKET,GENERATOR COVER

11061-1483

$22.35

11061B

GASKET,GENERATOR COVER

11061-1592

$38.81

13272

PLATE,GENERATOR

13272-4093

$73.57

14031

COVER-GENERATOR

14031-0666

$204.00

14032

COVER-CLUTCH

14032-0707

$122.22

16115

CAP-OIL FILLER

16115-1064

$7.77

52005

GAUGE,OIL

52005-0766

$23.08

92037

CLAMP,HARNESS,L=100

92037-1636

$7.68

92042

PIN,DOWEL,6.3X8X14

92042-007

$5.70

92043

PIN,8X14

92043-1567

$2.26

92045

BEARING-BALL,2TS2-6307UC3

92045-0969

$47.50

92049

SEAL-OIL

92049-0868

$11.43

92055

RING-O,OD=13

92055-074

$8.58

92055A

RING-O,37.2X1.9

92055-0959

$7.60

92055B

RING-O,20X2

92055-1146

$8.58

92055C

RING-O,35.8MM

92055-1281

$7.34

92066

PLUG,COVER

92066-0011

$15.94

92066A

PLUG,36X7.5

92066-0744

$8.22

92066B

PLUG,OIL LINE,7.2X8

92066-1012

$6.51

92154

BOLT,5X12

92154-4490

$1.69

132

BOLT-FLANGED-SMALL,8X30

132BA0830

$4.45

132A

BOLT-FLANGED-SMALL,8X40

132BA0840

$5.05

481

CIRCLIP

481J3400

$1.11
