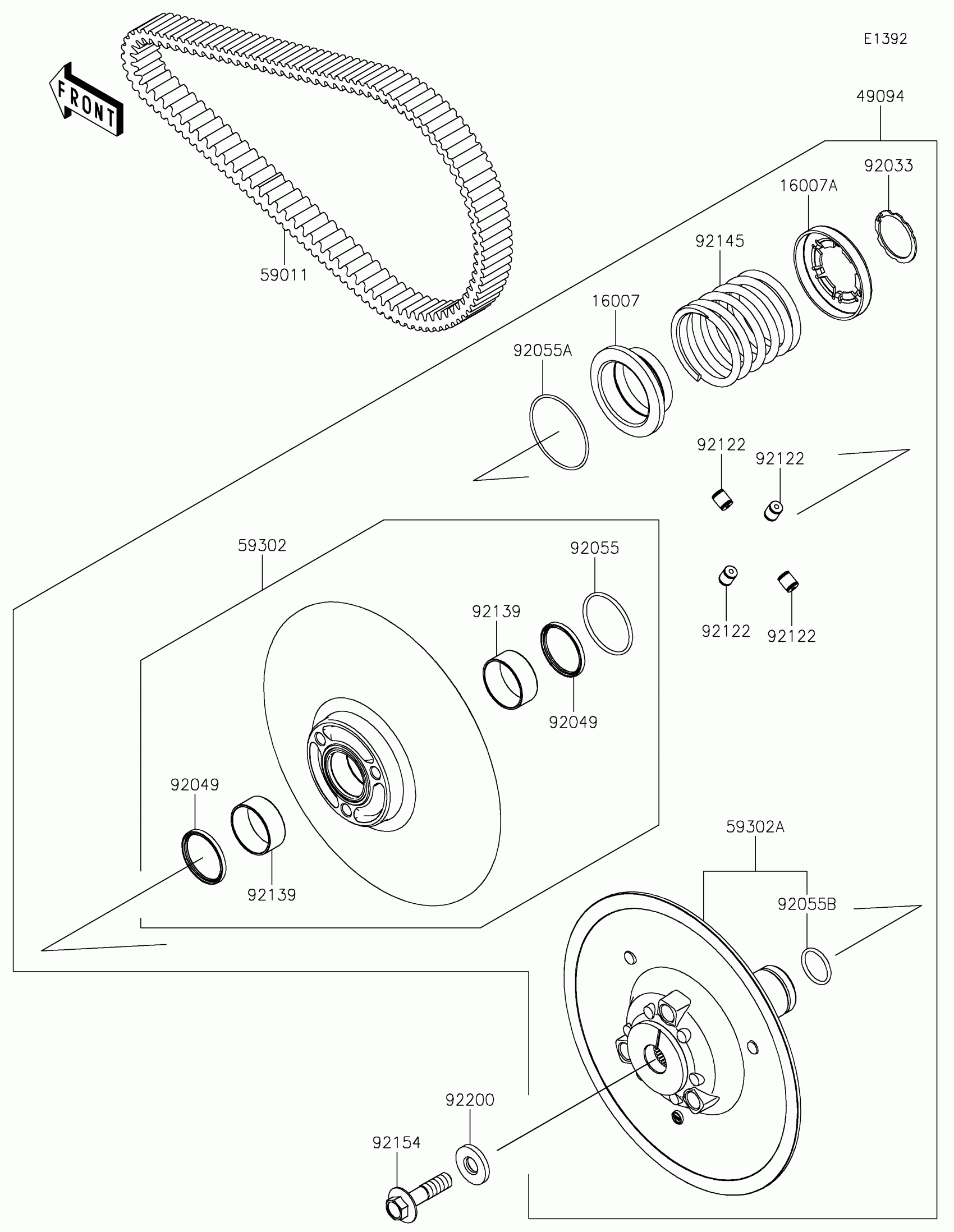

Kawasaki TERYX®5 H2 DELUXE eS Driven Converter/Drive Belt Diagram

Description

Price

16007

SEAT-SPRING,MOVABLE

16007-0754

$14.03

16007A

SEAT-SPRING,FIXED

16007-0755

$14.56

49094

CONVERTER-ASSY-DRIVEN

49094-0125

$881.16

59011

BELT,CVT

59011-0077

$196.30

59302

SHEAVE-COMP,DRIVEN MOVABLE

59302-0133

$449.08

59302A

SHEAVE-COMP,DRIVEN FIXED

59302-0142

$449.08

92033

RING-SNAP,41.5MM

92033-0801

$2.10

92049

SEAL-OIL,GD45X52X4 V1

92049-0821

$10.11

92055

RING-O,54.4X3.1

92055-0924

$3.35

92055A

RING-O,68.2X2.4

92055-0925

$3.92

92055B

RING-O,29X3.1

92055-0926

$3.12

92122

ROLLER

92122-0571

$21.97

92139

BUSHING

92139-0936

$25.38

92145

SPRING

92145-2333

$79.39

92154

BOLT,14X55

92154-3920

$16.89

92200

WASHER

92200-2389

$9.19
