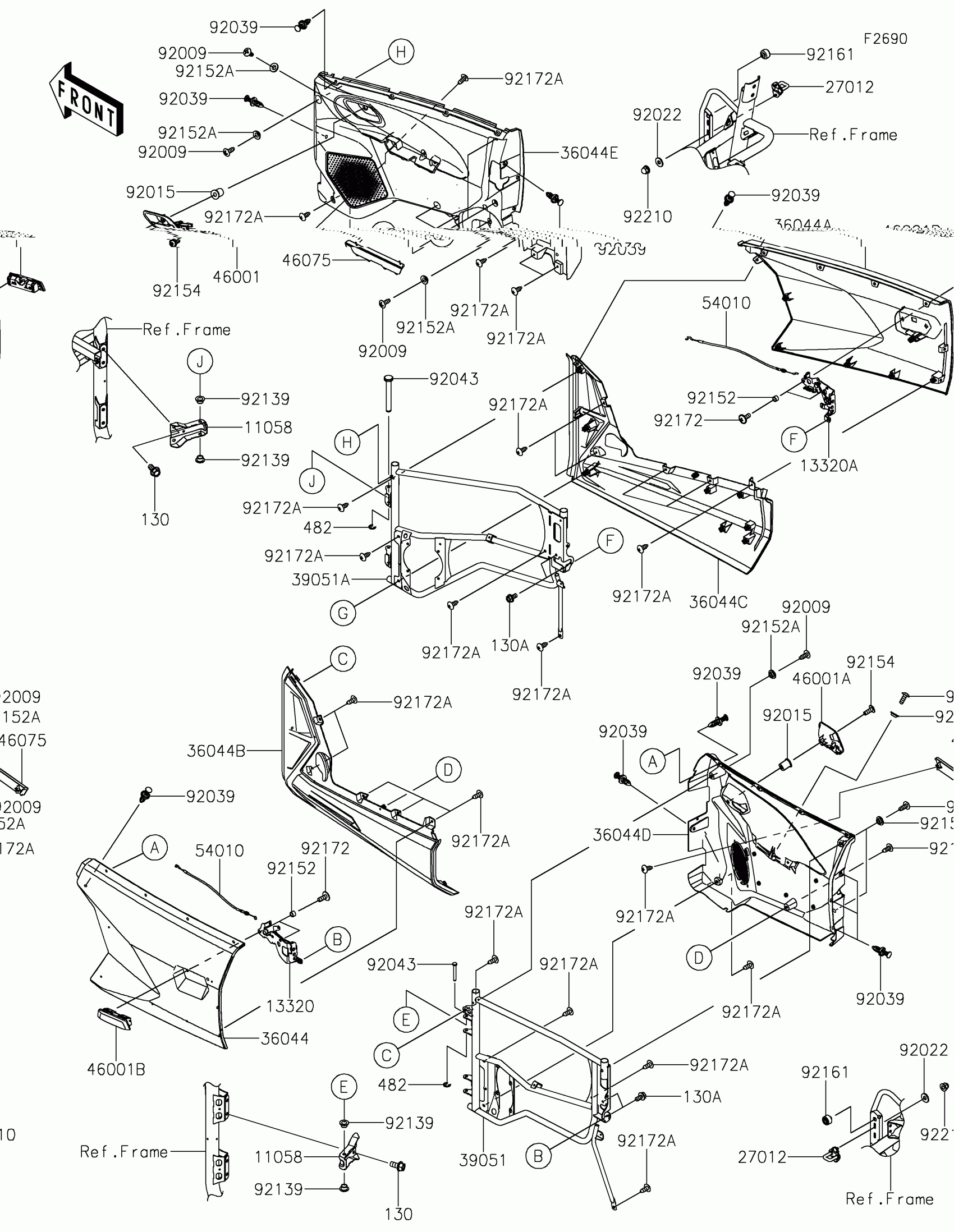

Kawasaki TERYX®5 H2 DELUXE eS Door(Front) Diagram

#

Description
Price

11058

BRACKET,HINGE,FR

11058-3977

$18.75

13320

LEVER-ASSY,DOOR,FR,LH

13320-0589

$212.07

13320A

LEVER-ASSY,DOOR,FR,RH

13320-0590

$212.07

27012

HOOK,DOOR

27012-0934

$10.94

36044

PANEL-DOOR,FR,LH,UPP,L.GREEN

36044-0001-777

$238.06

36044A

PANEL-DOOR,FR,RH,UPP,L.GREEN

36044-0002-777

$238.06

36044B

PANEL-DOOR,FR,LH,LWR

36044-0003

$31.55

36044C

PANEL-DOOR,FR,RH,LWR

36044-0004

$31.73

36044D

PANEL-DOOR,FR,LH,INNER,L.GRAY

36044-0005-72H

$36.30

36044E

PANEL-DOOR,FR,RH,INNER,L.GRAY

36044-0006-72H

$36.30

39051

FRAME-COMP-SIDE,DOOR,FR,LH

39051-0031

$325.22

39051A

FRAME-COMP-SIDE,DOOR,FR,RH

39051-0032

$314.01

46001

HANDLE-ASSY,DOOR,RH,INNER

46001-0015

$41.51

46001A

HANDLE-ASSY,DOOR,LH,INNER

46001-0016

$41.51

46001B

HANDLE-ASSY,DOOR,OUTER

46001-0017

$28.37

46075

GRIP,DOOR,INNER

46075-0693

$5.31

54010

CABLE

54010-0651

$18.47

92009

SCREW,TAPPING,6X16

92009-1166

$5.52

92015

NUT

92015-1700

$8.58

92022

WASHER

92022-2247

$0.62

92039

RIVET

92039-0865

$0.77

92043

PIN,DOOR

92043-1815

$17.33

92139

BUSHING,DOOR

92139-1281

$4.36

92152

COLLAR,6.5X8.5X5.5

92152-0612

$3.90

92152A

COLLAR,6.3X9.5X4.1

92152-1571

$6.00

92154

BOLT,SOCKET,6X16

92154-4068

$2.32

92161

DAMPER

92161-2590

$7.49

92172

SCREW,6X16

92172-0236

$0.85

92172A

SCREW,6X16

92172-0284

$1.34

92210

NUT,CAP,6MM

92210-0003

$0.64

130

BOLT-FLANGED,8X16

130BA0816

$1.12

130A

BOLT-FLANGED,6X12

130CA0612

$3.96

482

CIRCLIP-TYPE-E,6MM

482J6000

$0.69
