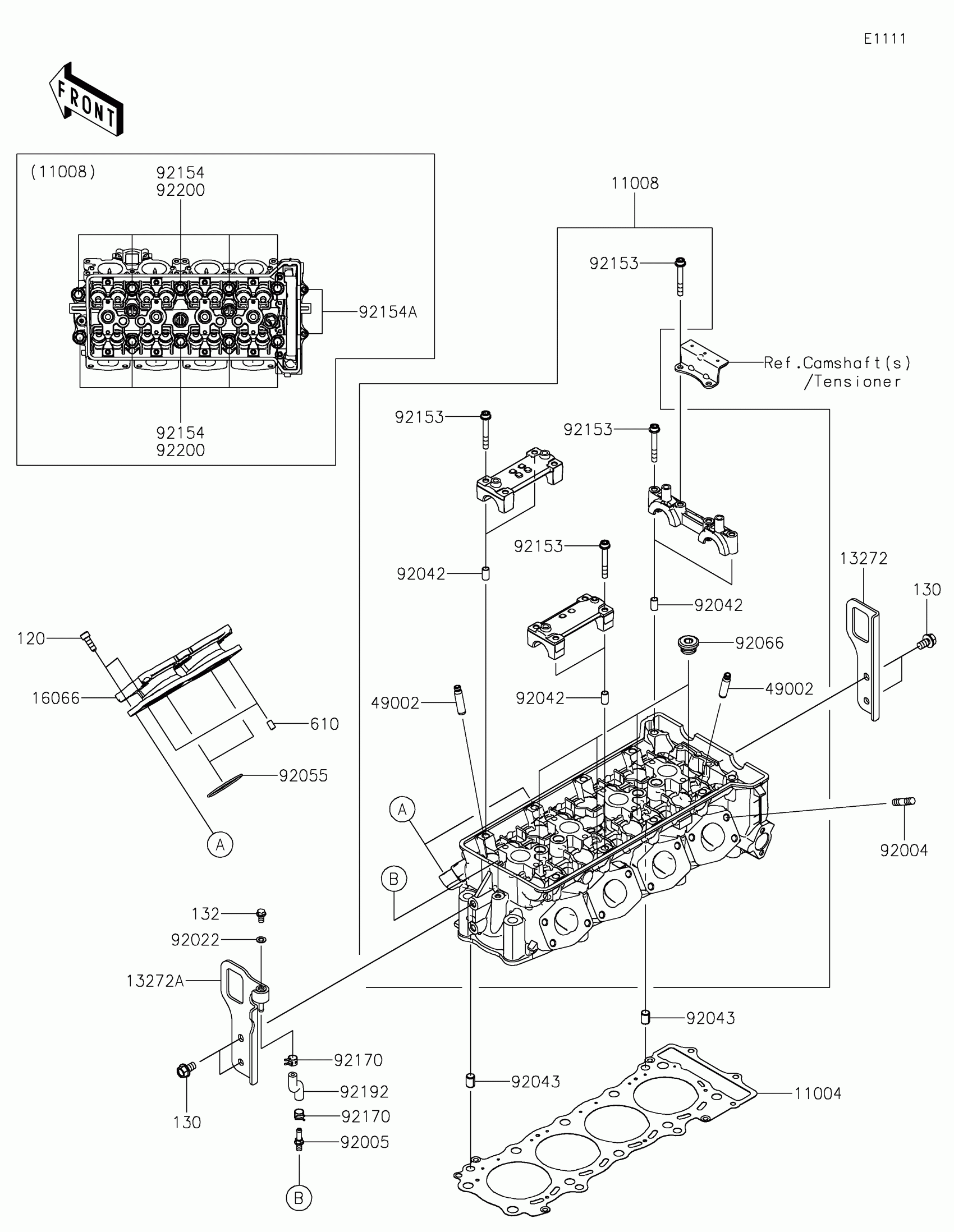

Kawasaki TERYX®5 H2 DELUXE eS Cylinder Head Diagram

Description

Price

11004

GASKET-HEAD

11004-0821

$119.09

11008

HEAD-COMP-CYLINDER

11008-1595

$2,227.32

13272

PLATE,RH

13272-7200

$17.04

13272A

PLATE,LH

13272-7293

$48.32

16066

HOLDER-THROTTLE BODY

16066-0033

$220.00

49002

GUIDE-VALVE

49002-0009

$34.18

92004

STUD,8X22

92004-0025

$3.87

92005

FITTING

92005-0826

$10.21

92022

WASHER,6.2X11X1

92022-304

$3.65

92042

PIN,DOWEL,6.3X8X14

92042-007

$5.70

92043

PIN,8.2X10X14

92043-1264

$0.64

92055

RING-O,43.7X1.9

92055-1401

$13.75

92066

PLUG,18X10

92066-0832

$12.90

92153

BOLT,SOCKET,6X45

92153-0656

$2.55

92154

BOLT,11X157

92154-3931

$15.78

92154A

BOLT,SOCKET,6X90

92154-7805

$4.50

92170

CLAMP

92170-1493

$5.00

92192

TUBE,4X10X78

92192-2762

$3.64

92200

WASHER,11.5X21X2.3

92200-0341

$4.92

120

BOLT-SOCKET,6X18

120CB0618

$1.78

130

BOLT-FLANGED,8X14

130CA0814

$1.48

132

BOLT-FLANGED-SMALL,6X10

132BA0610

$1.71

610

ROLLER,6X10

610A0610

$1.48
