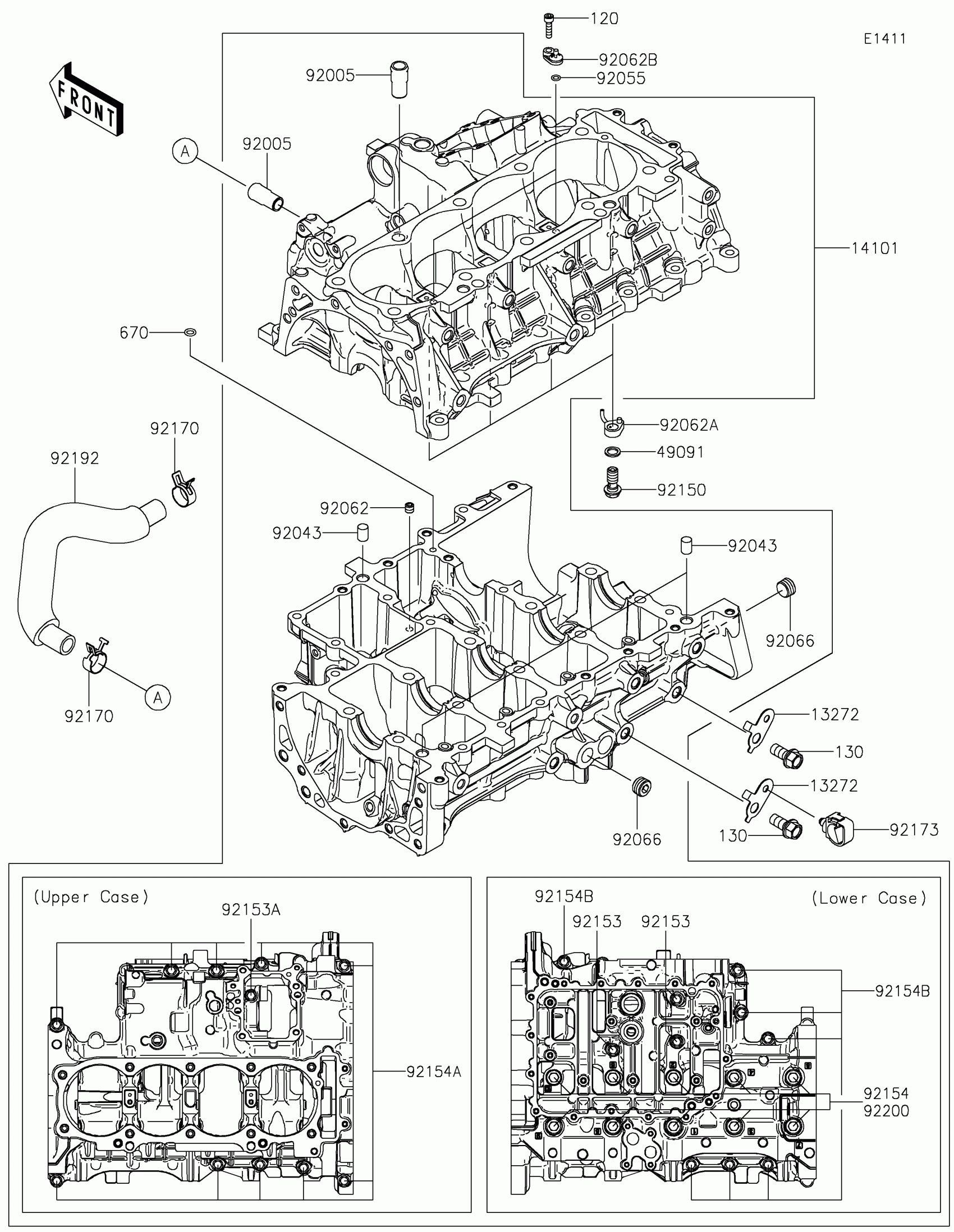

Kawasaki TERYX®5 H2 DELUXE eS Crankcase Diagram

Description

Price

13272

PLATE

13272-4471

$2.99

14101

SET-CRANKCASE

14101-0066

$1,817.07

49091

WASHER-SEAL,10.1X14.5X1.5

49091-0001

$2.15

92005

FITTING,BREATHER

92005-1238

$11.29

92043

PIN,10X14

92043-1506

$3.32

92055

RING-O,5.5X1.5

92055-1343

$0.64

92062

NOZZLE

92062-0580

$9.53

92062A

NOZZLE

92062-0590

$81.38

92062B

NOZZLE

92062-0592

$22.69

92066

PLUG

92066-0831

$5.62

92150

BOLT,BANJO,10X23

92150-1641

$14.23

92153

BOLT,FLANGED,7X85

92153-1043

$5.65

92153A

BOLT,FLANGED,7X60

92153-1045

$5.33

92154

BOLT,FLANGED,10X100

92154-1446

$12.56

92154A

BOLT,7X35

92154-4472

$4.77

92154B

BOLT,FLANGED,7X35

92154-7806

$6.07

92170

CLAMP

92170-1060

$8.10

92173

CLAMP

92173-0861

$3.02

92192

TUBE,BLOWBY GAS

92192-2973

$14.47

92200

WASHER,10.2X18.4X1.8

92200-0990

$9.67

120

BOLT-SOCKET,5X20

120CA0520

$5.22

130

BOLT-FLANGED,10X22

130BA1022

$1.94

670

O RING,7MM

670D1507

$1.70
