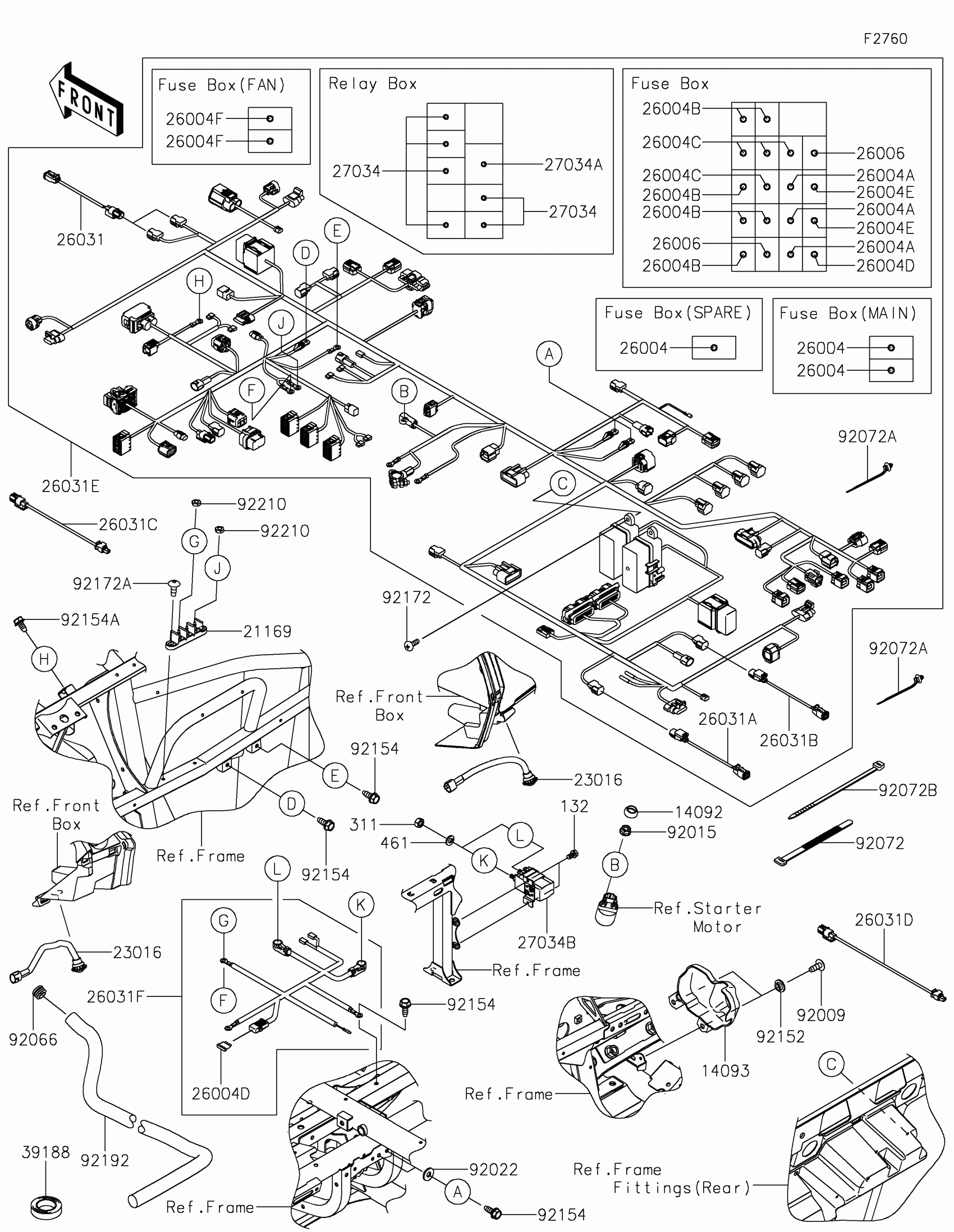

Kawasaki TERYX®5 H2 DELUXE eS Chassis Electrical Equipment Diagram

#

Description
Price

14092

COVER,MAGNETIC SW.

14092-0851

$1.93

14093

COVER,FR GEAR,SIDE

14093-0839

$3.79

21169

TERMINAL

21169-0571

$12.95

23016

LAMP-ASSY,FLOOR

23016-0671

$20.10

26004

FUSE-ASSY,SLOW-BLOW,70A

26004-0030

$5.40

26004A

FUSE-ASSY,20A

26004-0033

$2.92

26004B

FUSE-ASSY,10A

26004-0034

$2.67

26004C

FUSE-ASSY,15A

26004-0037

$2.77

26004D

FUSE-ASSY,30A

26004-0043

$4.88

26004E

FUSE-ASSY,5A

26004-0044

$4.88

26004F

FUSE-ASSY,40A

26004-0048

$2.36

26006

FUSE,MINI BLADE,25A,NATURAL

26006-0020

$6.57

26031

HARNESS,SUB,FR SUSPENSION

26031-4287

$11.61

26031A

HARNESS,SUB,RR SUSPENSION,LH

26031-4288

$11.61

26031B

HARNESS,SUB,RR SUSPENSION,RH

26031-4289

$11.61

26031C

HARNESS,SUB HARNESS,FR

26031-4480

$12.98

26031D

HARNESS,SUB HARNESS,RR

26031-4490

$12.34

26031E

HARNESS,MAIN

26031-7169

$1,053.05

26031F

HARNESS,SUB,RELAY

26031-7181

$36.61

27034

RELAY

27034-0013

$20.18

27034A

RELAY

27034-0024

$19.38

27034B

RELAY

27034-0028

$80.30

39188

TAPE,HARNESS

39188-0006

Unavailable

92009

SCREW,TAPPING,6X16

92009-1166

$5.52

92015

NUT,FLANGED,6MM

92015-1367

$3.69

92022

WASHER

92022-2247

$0.62

92066

PLUG

92066-0908

$0.98

92072

BAND,L=123

92072-030

$5.00

92072A

BAND,OS170-FT7(BLACK)

92072-1414

Unavailable

92072B

BAND,L=292.1

92072-3509

Unavailable

92152

COLLAR,6.3X9.5X4.1

92152-1571

$6.00

92154

BOLT,FLANGED,6X16

92154-0551

$1.63

92154A

BOLT,FLANGED,6X12

92154-7905

$1.31

92172

SCREW,TAPPING,6X20

92172-0488

$3.02

92172A

SCREW,TAPPING,6X16

92172-0739

$0.85

92192

TUBE,CONVOLUTED,19.5X23.8X2185

92192-2832

$39.88

92210

NUT

92210-1680

$0.22

132

BOLT-FLANGED-SMALL,5X8

132BA0508

$1.71

311

NUT-HEX,6MM

311BA0600

$2.23

461

WASHER-SPRING,6MM

461DA0600

$0.71
