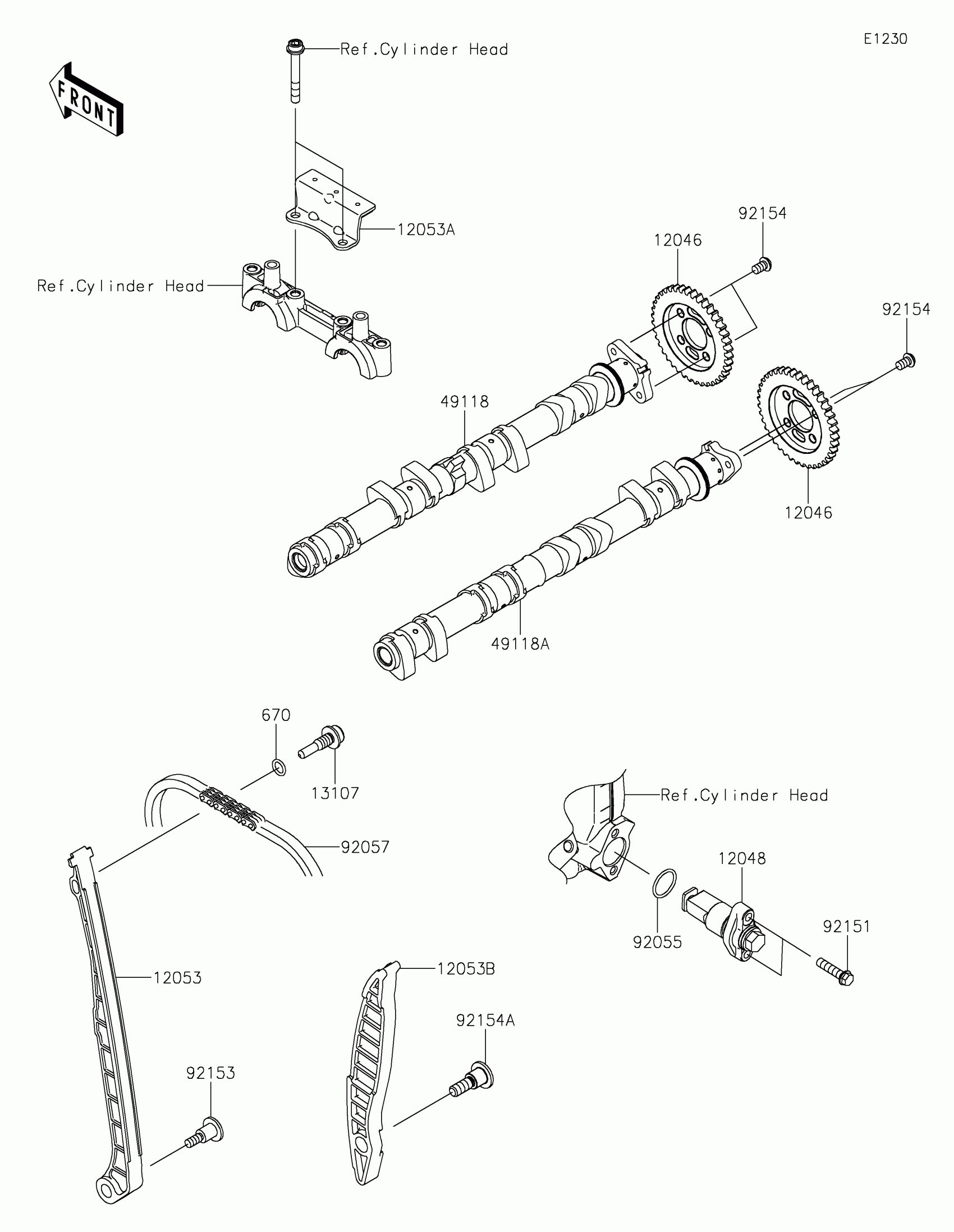

Kawasaki TERYX®5 H2 DELUXE eS Camshaft(s)/Tensioner Diagram

Description

Price

12046

SPROCKET,CAM,40T

12046-0672

$88.22

12048

TENSIONER-ASSY

12048-0102

$95.43

12053

GUIDE-CHAIN,FR

12053-0327

$27.78

12053A

GUIDE-CHAIN,UPP

12053-0347

$42.29

12053B

GUIDE-CHAIN,RR

12053-0354

$29.25

13107

SHAFT,CHAIN GUIDE

13107-0157

$10.65

49118

CAMSHAFT-COMP,IN

49118-1334

$490.22

49118A

CAMSHAFT-COMP,EX

49118-1335

$490.22

92055

RING-O,18.8X1.9

92055-1763

$10.21

92057

CHAIN,CAM,T112

92057-0963

$115.79

92151

BOLT,FLANGED-SMALL,6X25

92151-1930

$2.80

92153

BOLT,SOCKET,6X24.5

92153-1200

$11.59

92154

BOLT,TORX,6X10

92154-0062

$2.55

92154A

BOLT,8X29

92154-3930

$24.70

670

O RING,9MM

670D1509

$4.69
