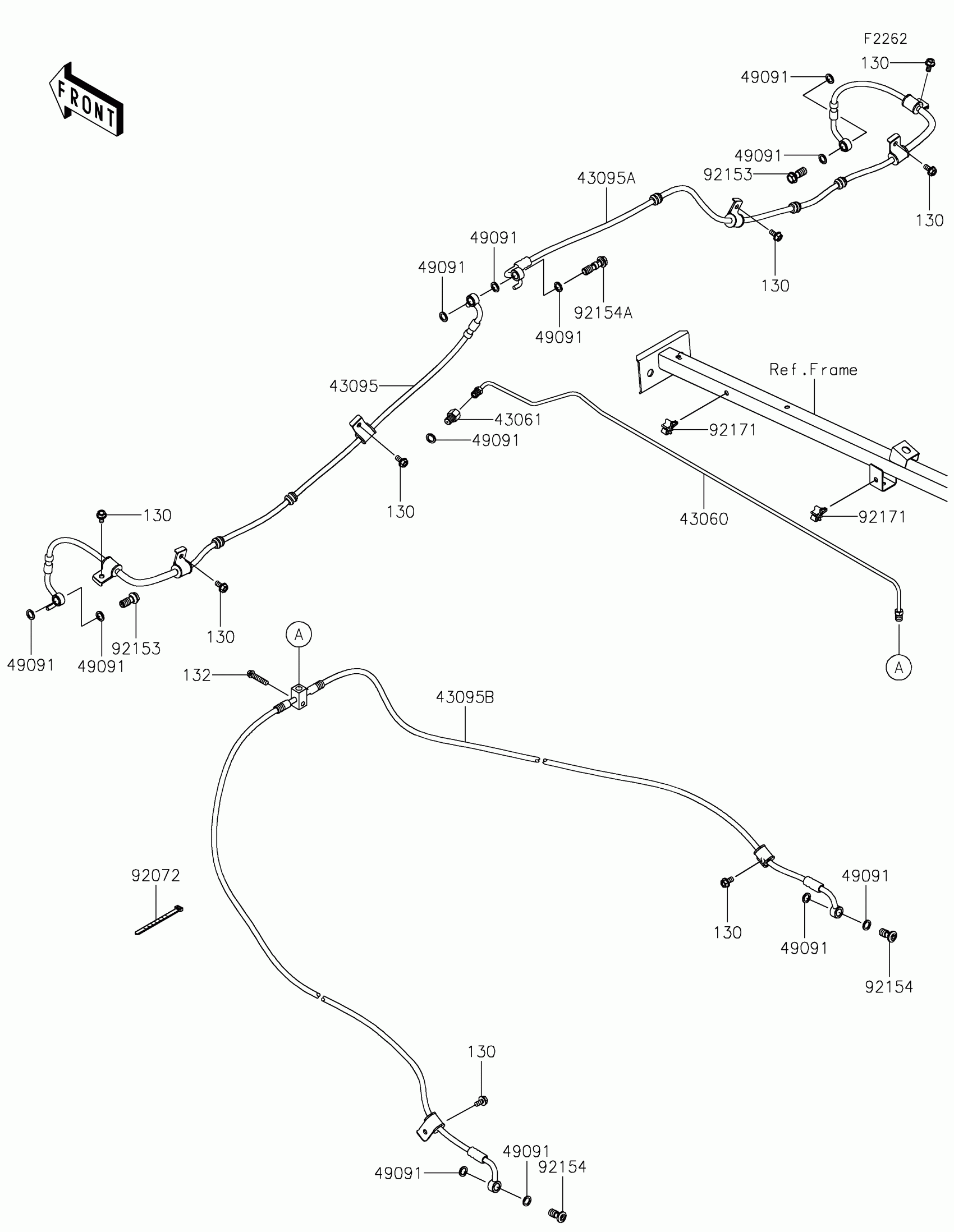

Kawasaki TERYX®5 H2 DELUXE eS Brake Piping Diagram

Description

Price

43060

PIPE-BRAKE

43060-0358

$12.49

43061

JOINT-BRAKE,M/C

43061-0302

$33.87

43095

HOSE-BRAKE,FR,LH

43095-2037

$50.13

43095A

HOSE-BRAKE,FR,RH

43095-2038

$54.40

43095B

HOSE-BRAKE,RR

43095-2281

$140.43

49091

WASHER-SEAL,10.1X14.5X1.5

49091-0001

$1.57

92072

BAND,L=123

92072-030

$3.81

92153

BOLT,OIL,L=23

92153-1419

$2.98

92154

BOLT,HEXALOBULAR,10X21

92154-1328

$6.17

92154A

BOLT,OIL,10X34.5

92154-1398

$7.47

92171

CLAMP

92171-0805

$3.51

130

BOLT-FLANGED,6X12

130CA0612

$3.02

132

BOLT-FLANGED-SMALL,6X30

132BA0630

$1.87
