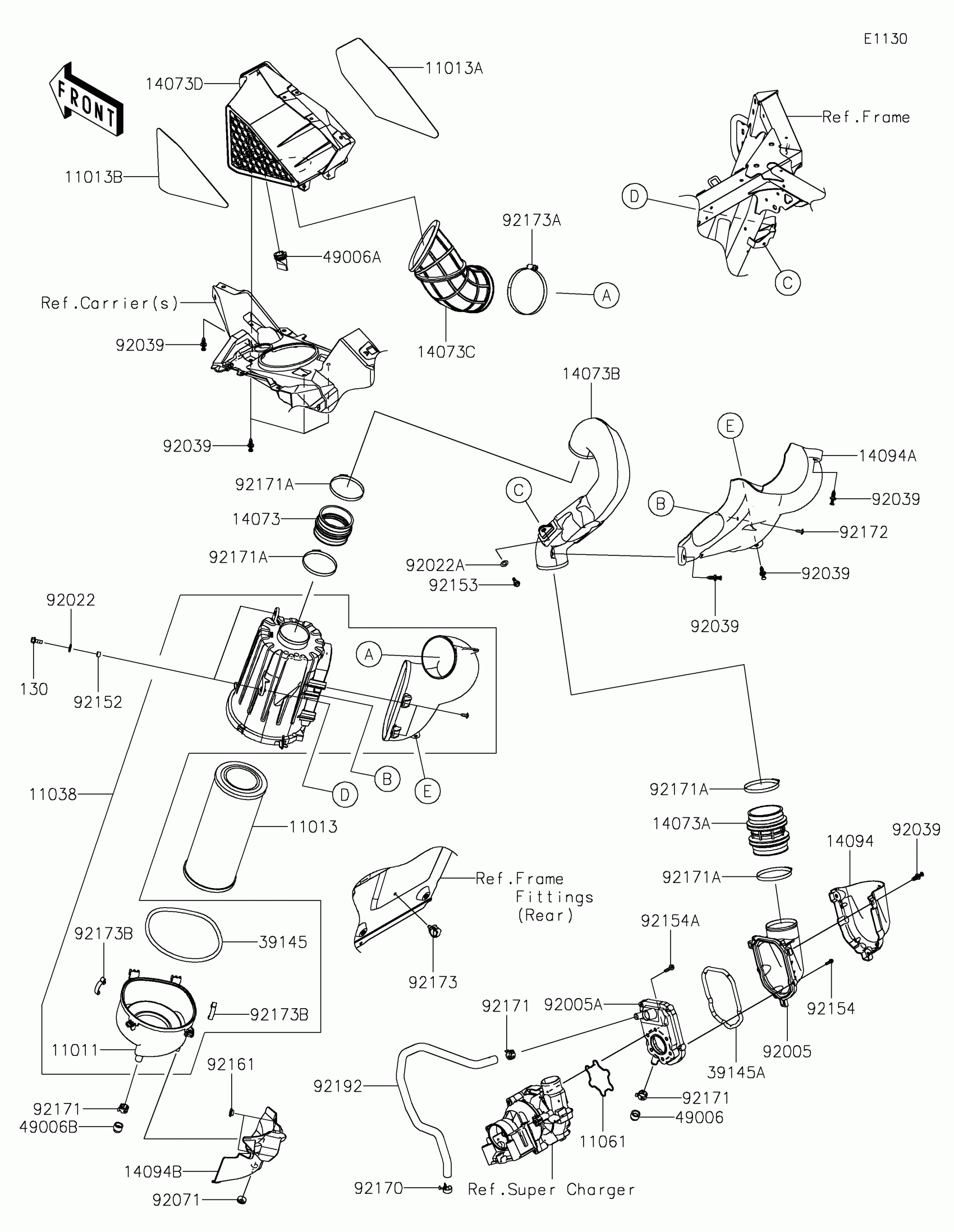

Kawasaki TERYX®5 H2 DELUXE eS Air Cleaner Diagram

#

Description
Price

11011

CASE-AIR FILTER,LWR

11011-1704

$80.13

11013

ELEMENT-AIR FILTER

11013-0835

$86.43

11013A

ELEMENT-AIR FILTER,OUTSIDE

11013-0837

$47.59

11013B

ELEMENT-AIR FILTER,INSIDE

11013-0838

$26.11

11038

CASE-ASSY-AIR FILTER

11038-0731

$168.03

11061

GASKET,COMPRESSOR

11061-1591

$55.73

14073

DUCT,A/C

14073-1957

$6.47

14073A

DUCT,S/C SIDE

14073-1961

$11.99

14073B

DUCT,A/C SIDE

14073-1967

$201.00

14073C

DUCT,INTAKE

14073-2117

$24.52

14073D

DUCT,PRE FILTER

14073-2123

$314.56

14094

COVER,FITTING

14094-0210

$28.74

14094A

COVER,DUCT

14094-0404

$79.55

14094B

COVER,A/C

14094-0405

$39.70

39145

TRIM-SEAL

39145-0782

$37.08

39145A

TRIM-SEAL

39145-0783

$34.73

49006

BOOT,DRAIN

49006-0560

$6.57

49006A

BOOT

49006-0633

$2.21

49006B

BOOT,DRAIN

49006-3718

$6.62

92005

FITTING,UPP

92005-1492

$94.34

92005A

FITTING,LWR

92005-1601

$104.10

92022

WASHER,8.5X20X1.6

92022-1561

$4.31

92022A

WASHER,10.5X20X1

92022-239

$3.92

92039

RIVET

92039-0865

$0.77

92071

GROMMET

92071-1115

$5.46

92152

COLLAR,8.8X12.3X6.9

92152-1853

$3.63

92153

BOLT,FLANGED,6X19

92153-1400

$3.90

92154

BOLT,SOCKET,5X18

92154-1450

$1.19

92154A

BOLT,FLANGED,6X22

92154-3858

$2.17

92161

DAMPER

92161-1531

$3.02

92170

CLAMP

92170-1060

$8.10

92171

CLAMP

92171-0329

$8.89

92171A

CLAMP

92171-1383

$4.40

92172

SCREW,6X16

92172-0284

$1.34

92173

CLAMP

92173-0861

$3.02

92173A

CLAMP,130MM

92173-1938

$4.30

92173B

CLAMP,AIR FILTER CASE

92173-2023

$3.76

92192

TUBE,BREATHER

92192-2774

$34.52

130

BOLT-FLANGED,8X20

130BA0820

$4.14
