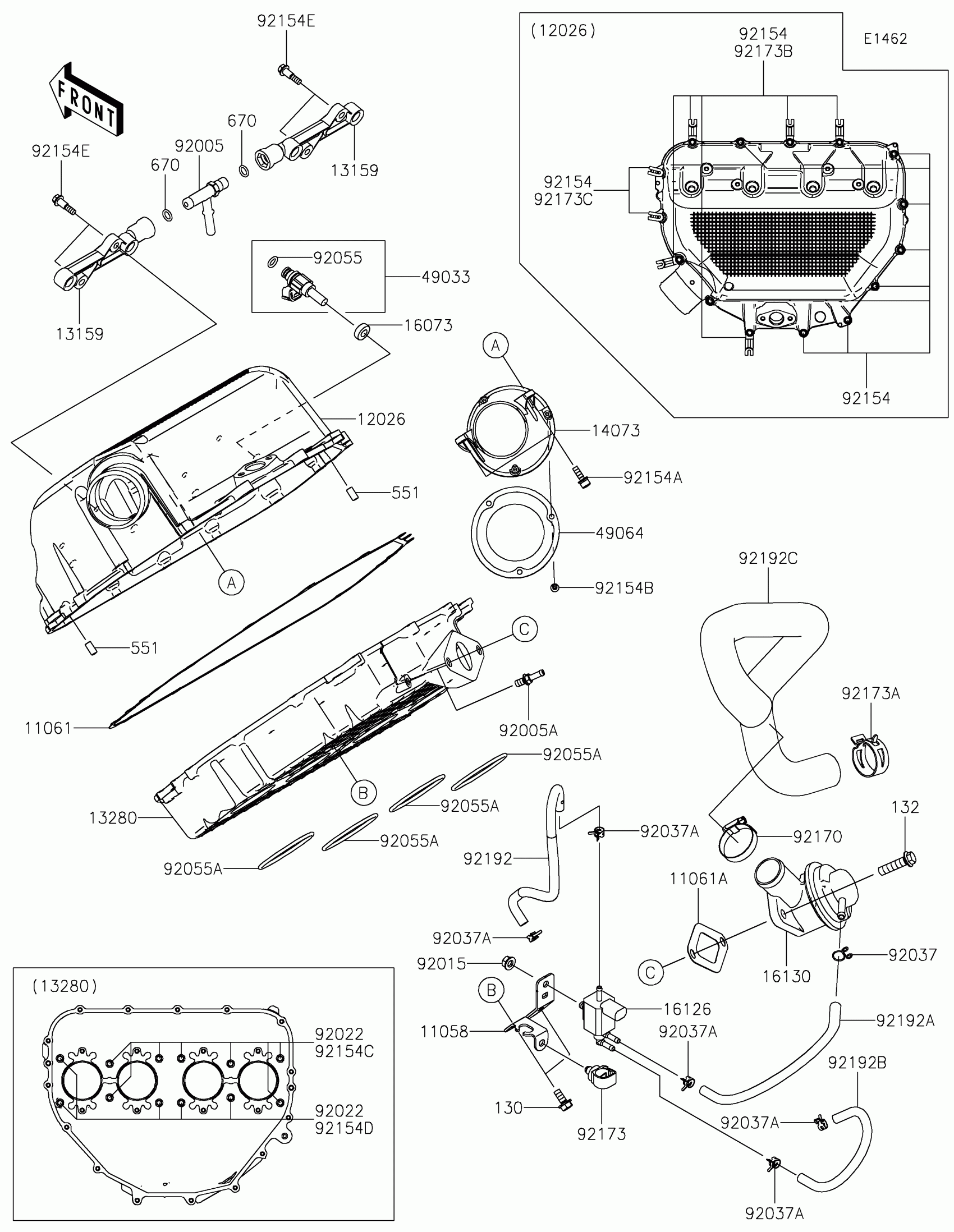

Kawasaki TERYX®5 H2 DELUXE eS Air Chamber Diagram

#

Description
Price

11058

BRACKET

11058-1955

$13.27

11061

GASKET,CHAMBER

11061-0949

$36.37

11061A

GASKET,BLOWOFF VALVE

11061-0950

$3.96

12026

CHAMBER,INTAKE

12026-0028

$468.71

13159

CONNECTOR

13159-0016

$24.31

13280

HOLDER,INTAKE CHAMBER

13280-1398

$290.56

14073

DUCT,DIFFUSER

14073-1964

$54.33

16073

INSULATOR

16073-0129

$6.00

16126

VALVE,SOLENOID

16126-0751

$80.80

16130

VALVE-ASSY-RELIEF

16130-0019

$468.82

49033

NOZZLE-INJECTION

49033-0565

$132.64

49064

FILTER-AIR

49064-0007

$24.91

92005

FITTING

92005-0125

$11.34

92005A

FITTING

92005-0826

$10.21

92015

NUT,FLANGED,6MM

92015-1367

$3.69

92022

WASHER,5.5X10.5X0.8

92022-037

$3.92

92037

CLAMP,TUBE

92037-147

$7.34

92037A

CLAMP,7.8MM

92037-2116

$1.39

92055

RING-O,INJECTION NOZZLE

92055-0124

$2.97

92055A

RING-O

92055-1764

$21.04

92154

BOLT,SOCKET,5X18

92154-1450

$1.19

92154A

BOLT,SOCKET,5X16

92154-1568

$2.26

92154B

BOLT,TORX,4X10

92154-1790

$2.49

92154C

BOLT,FLANGED,5X14

92154-3884

$2.49

92154D

BOLT,FLANGED,5X95

92154-3886

$7.78

92154E

BOLT,SHOULDER,5X20

92154-3971

$4.20

92170

CLAMP

92170-1036

$8.72

92173

CLAMP,12MM DIA.

92173-0736

$5.05

92173A

CLAMP,35.5MM

92173-1432

$3.56

92173B

CLAMP

92173-2305

$4.60

92173C

CLAMP

92173-2307

$5.31

92192

TUBE,SOLENOID-THROTTLE

92192-2775

$15.88

92192A

TUBE,SOLENOID-ABV

92192-2776

$7.49

92192B

TUBE,SOLENOID-CHAMBER

92192-2777

$7.49

92192C

TUBE,ABV-FITTING

92192-2778

$74.14

130

BOLT-FLANGED,6X14

130BA0614

$1.20

132

BOLT-FLANGED-SMALL,8X30

132BC0830

$3.90

551

PIN-DOWEL,6X12

551A0612

$0.94

670

O RING,8MM

670E1508

$1.82
