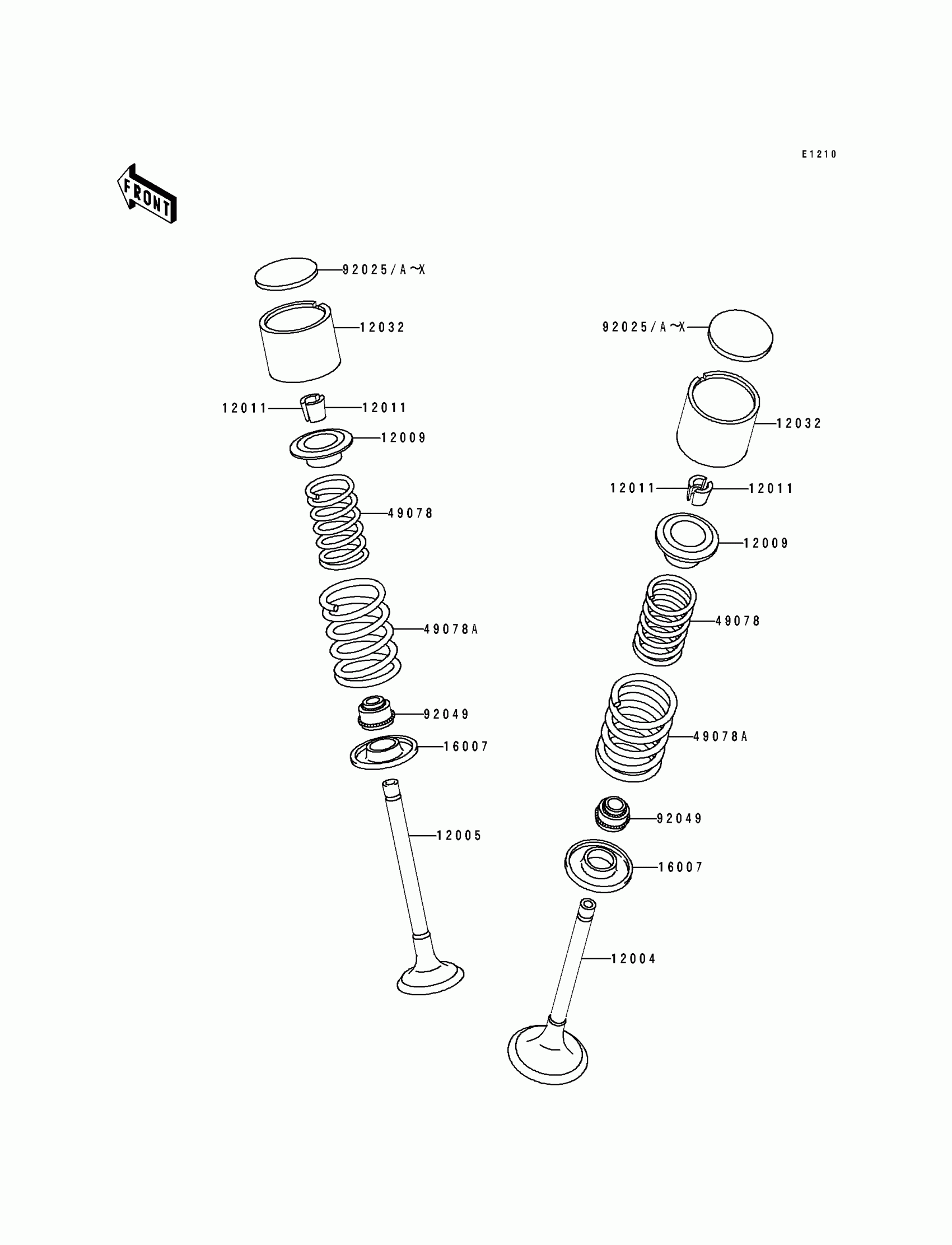

Kawasaki Tengai Valve Diagram
#
12004
VALVE-INTAKE
12004-1087
$53.01
12005
VALVE-EXHAUST
12005-1085
$87.75
12009
RETAINER-VALVE SPRING
12009-005
$13.08
12011
COLLET,RETAINER
12011-004
$5.46
12032
TAPPET
12032-1002
$70.18
16007
SEAT-SPRING,VALVE
16007-1024
$6.51
49078
SPRING-ENGINE VALVE,INNER
49078-1065
$14.76
49078A
SPRING-ENGINE VALVE,OUTER
49078-1066
$14.76
92025
SHIM,T=2.00
12037-001
Unavailable
92025A
SHIM,T=2.05
12037-002
Unavailable
92025B
SHIM,T=2.10
12037-003
Unavailable
92025C
SHIM,T=2.15
12037-004
Unavailable
92025D
SHIM,T=2.20
12037-005
Unavailable
92025E
SHIM,T=2.25
12037-006
Unavailable
92025F
SHIM,T=2.30
12037-007
Unavailable
92025G
SHIM,T=2.35
12037-008
Unavailable
92025H
SHIM,T=2.40
12037-009
Unavailable
92025I
SHIM,T=2.45
12037-010
Unavailable
92025J
SHIM,T=2.50
12037-011
Unavailable
92025K
SHIM,T=2.55
12037-012
Unavailable
92025L
SHIM,T=2.60
12037-013
Unavailable
92025M
SHIM,T=2.65
12037-014
Unavailable
92025N
SHIM,T=2.70
12037-015
Unavailable
92025O
SHIM,T=2.75
12037-016
Unavailable
92025P
SHIM,T=2.80
12037-017
Unavailable
92025Q
SHIM,T=2.85
12037-018
Unavailable
92025R
SHIM,T=2.90
12037-019
Unavailable
92025S
SHIM,T=2.95
12037-020
Unavailable
92025T
SHIM,T=3.00
12037-021
Unavailable
92025U
SHIM,T=3.05
12037-022
Unavailable
92025V
SHIM,T=3.10
12037-023
Unavailable
92025W
SHIM,T=3.15
12037-024
Unavailable
92025X
SHIM,T=3.20
12037-025
Unavailable
92049
SEAL-OIL,RV37129.5
92049-016
$18.35
