Description

Price

34003

HOLDER-STEP,FR,LH,GRAY

34003-1303-EC

$52.29

34003A

HOLDER-STEP,FR,RH,GRAY

34003-1304-EC

$52.29

34028

STEP,FR,LH

34028-1193

$37.38

34028A

STEP,FR,RH

34028-1194

$37.38

34028B

STEP,RR,LH

34028-1195

$39.15

34028C

STEP,RR,RH

34028-1196

$39.15

35011

STAY,RR,LH

35011-1472

$182.07

35011A

STAY,RR,RH

35011-1473

$170.70

55020

GUARD,REAR STEP,LH

55020-1333

$17.20

55020A

GUARD,REAR STEP,RH

55020-1334

$17.20

92002

BOLT,FLANGED,8X20

92002-1417

$4.76

92002A

BOLT,SOCKET,8X25

92002-1442

$5.05

92022

WASHER,STEP FITTING

92022-1314

$5.24

92022A

WASHER,STEP FITTING

92022-1797

$5.24

92043

PIN,6X38.5

92043-1328

$5.24

92043A

PIN,8X36.5

92043-1339

$7.84

92150

BOLT,FLANGED,6X16

92150-1506

$5.00

482

CIRCLIP-TYPE-E,5MM

482L5000

$1.34

482A

CIRCLIP-TYPE-E

482L7000

$3.92

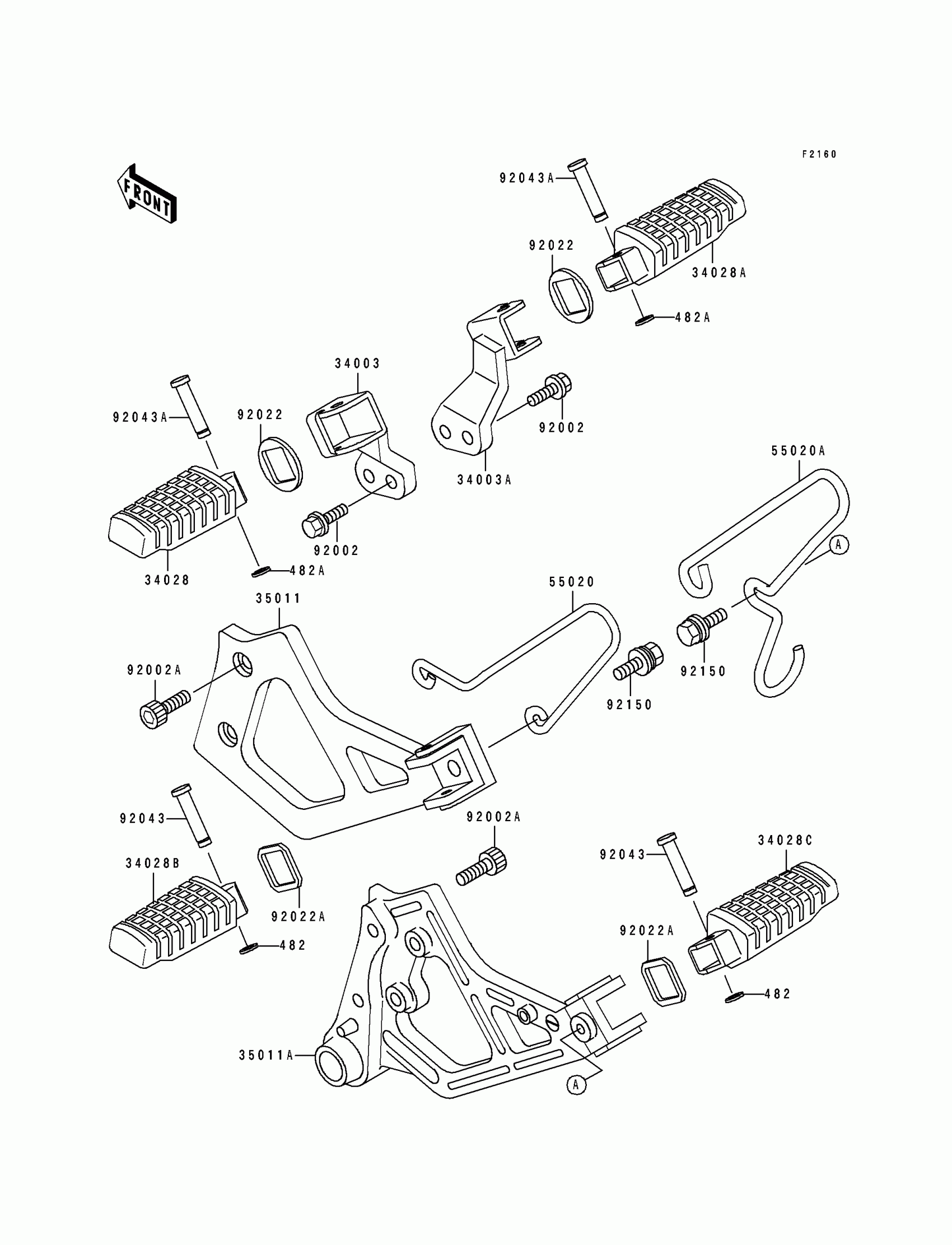

Kawasaki Tengai Step Diagram

HOLDER-STEP,FR,LH,GRAY

HOLDER-STEP,FR,RH,GRAY

STEP,FR,LH

STEP,FR,RH

STEP,RR,LH

STEP,RR,RH

STAY,RR,LH

STAY,RR,RH

GUARD,REAR STEP,LH

GUARD,REAR STEP,RH

BOLT,FLANGED,8X20

BOLT,SOCKET,8X25

WASHER,STEP FITTING

WASHER,STEP FITTING

PIN,6X38.5

PIN,8X36.5

BOLT,FLANGED,6X16

CIRCLIP-TYPE-E,5MM

CIRCLIP-TYPE-E
