1991 Kawasaki Tengai Side Cover/chain Case Diagram

← All diagrams

Find the part on the Side Cover/chain Case diagram for your 1991 Kawasaki Tengai, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

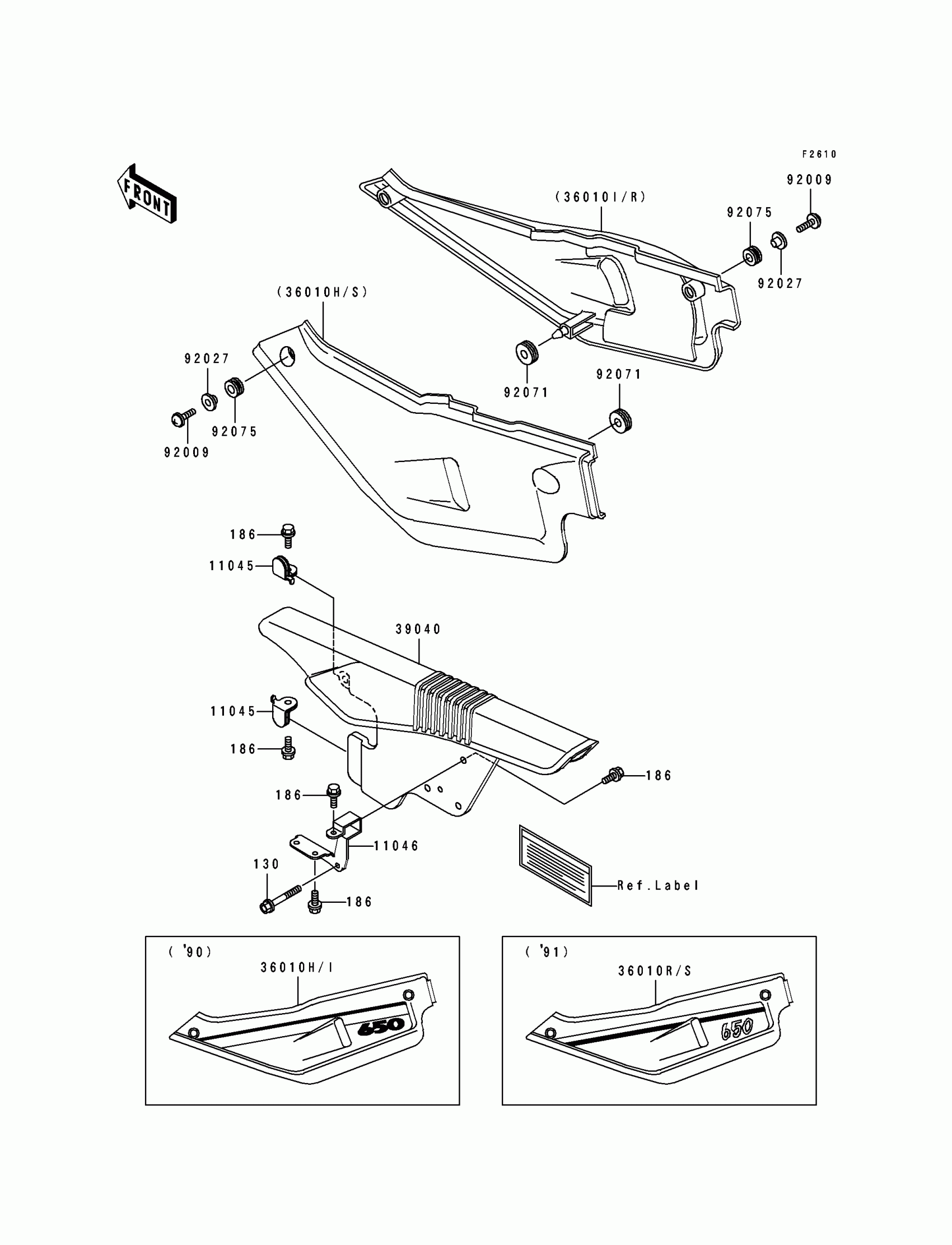

1991 Kawasaki Tengai Side Cover/chain Case Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11045

1

$9.92

In stock

11046

BRACKET,CHAIN CASE,RR

11046-1391

1
Out of stock

36010R

COVER-SIDE,RH,P.A.WHITE

36010-5429-R1

1
Out of stock

36010S

COVER-SIDE,LH,P.A.WHITE

36010-5430-R1

1
Out of stock

39040

1

$100.93

In stock

92009

SCREW,6X18

92009-1111

1
Out of stock

92027

COLLAR,L=9.1,WHITE

92027-1795

1

$4.87

In stock

92071

GROMMET

92071-056

1

$3.39

In stock

92075

DAMPER

92075-1634

1

$3.72

In stock

130

BOLT-FLANGED,6X40

130H0640

1
Out of stock

186

BOLT-UPSET-WP,6X12

186C0612

1
Out of stock
