1991 Kawasaki Tengai Change Drum/shift Fork Diagram

← All diagrams

Find the part on the Change Drum/shift Fork diagram for your 1991 Kawasaki Tengai, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

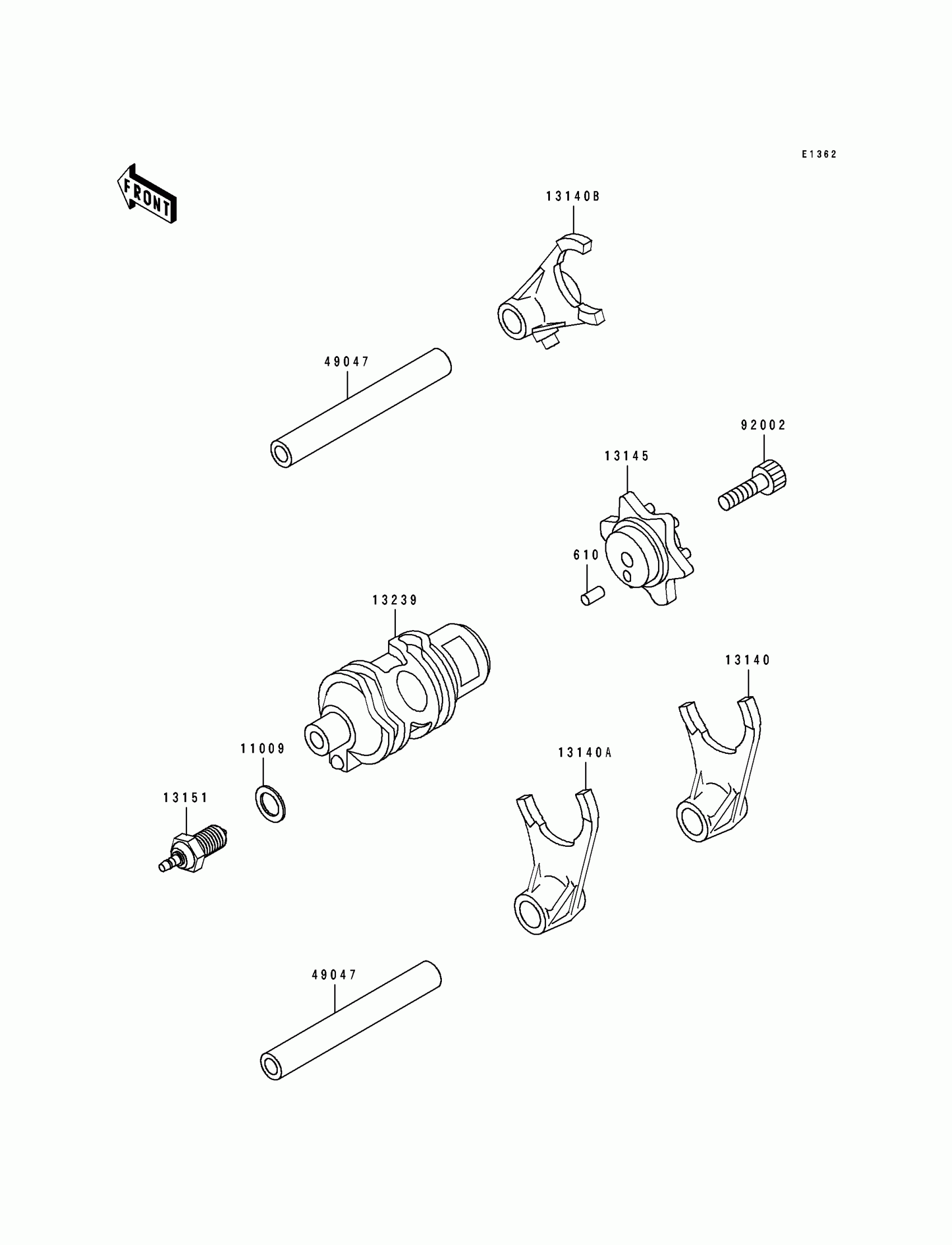

1991 Kawasaki Tengai Change Drum/shift Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

GASKET,10.5X16X1

92065-058

1

$3.16

In stock

13140

FORK-SHIFT,LOW

13140-1023

1

$99.73

In stock

13140A

FORK-SHIFT,2ND&3RD

13140-1024

1

$99.73

In stock

13140B

FORK-SHIFT,4TH&TOP

13140-1025

1
Out of stock

13145

CAM-CHANGE DRUM

13145-1051

1
Out of stock

13151

SWITCH-COMP,NEUTRAL

13151-1007

1
Out of stock

13239

DRUM-ASSY-CHANGE

13239-1103

1
Out of stock

49047

ROD-SHIFT,L=93.7

49047-1003

1
Out of stock

92002

BOLT,SOCKET,6X25

92002-1696

1
Out of stock

610

ROLLER,4X10

610A0410

1

$3.43

In stock
