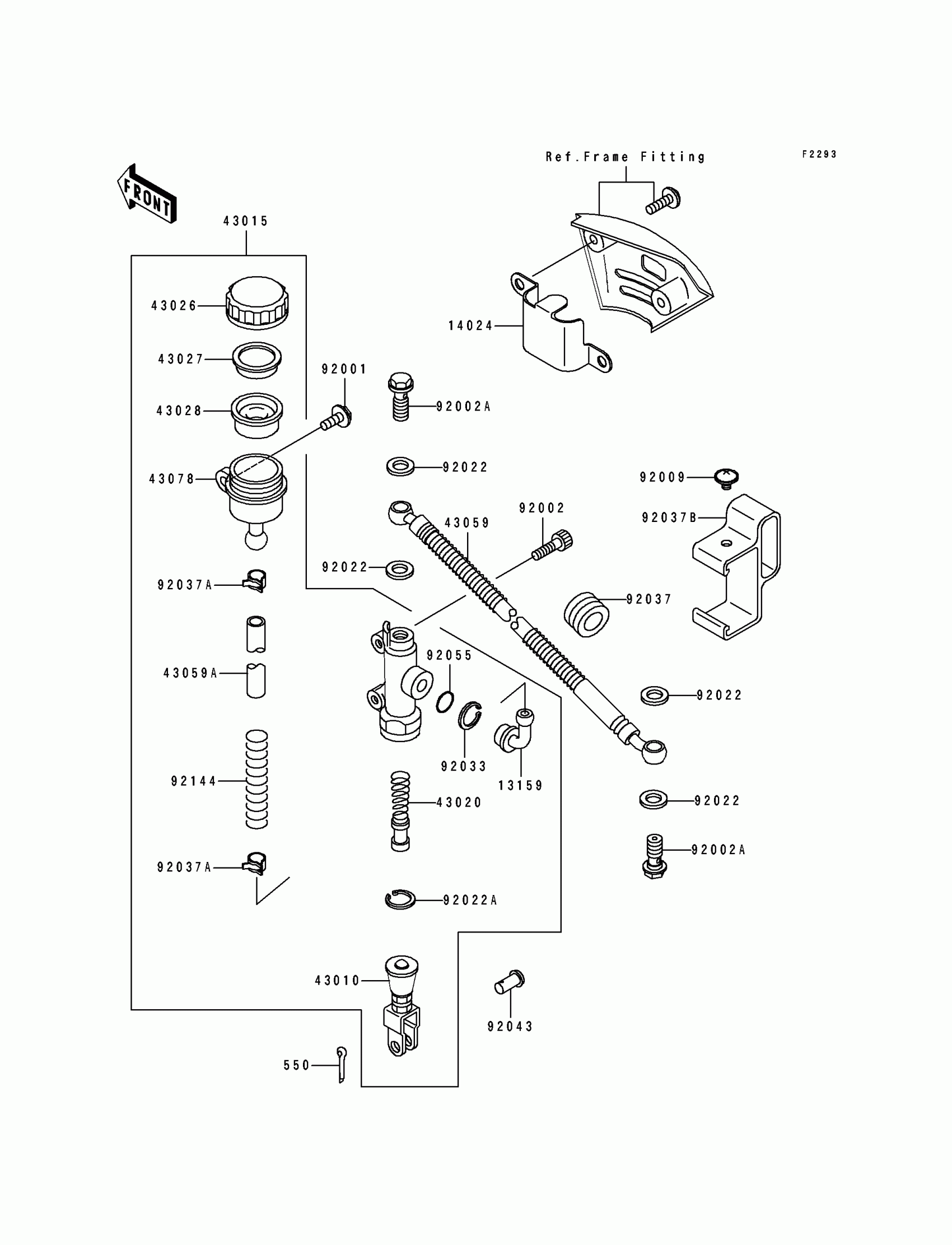

Kawasaki Tengai Rear Master Cylinder Diagram

#

Description
Price

13159

CONNECTOR

13159-1056

$14.10

14024

COVER,RESERVOIR TANK

14024-1531

$10.53

43010

ROD-ASSY-BRAKE

43010-1062

$51.24

43015

CYLINDER-ASSY-MASTER,RR

43015-1414

$404.70

43020

PISTON-COMP-BRAKE

43020-1063

$65.22

43026

CAP-BRAKE

43026-1064

$38.16

43027

PLATE-DIAPHRAGM

43027-1053

$5.67

43028

DIAPHRAGM

43028-1065

$19.09

43059

HOSE-BRAKE,RR

43059-1478

$46.31

43059A

HOSE-BRAKE

43059-1518

$23.08

43078

RESERVOIR

43078-1080

$28.25

92001

BOLT,W/P,6X16

92001-1860

$4.31

92002

BOLT,SOCKET,8X20

92002-1178

$5.05

92002A

BOLT,OIL,L=23

92002-1888

$5.48

92009

SCREW,6X10,WHITE

92009-1286

$4.31

92022

WASHER,10.5X15X1.5

43067-001

$2.15

92022A

WASHER,CIRCRIP

92022-1601

Unavailable

92033

RING-SNAP,20.5MM

92033-1186

$4.96

92037

GROMMET,HOSE CLAMP

43064-007

$5.52

92037A

CLAMP

92037-1710

$9.91

92037B

CLAMP,HOSE

92037-1895

$11.91

92043

PIN,8MM

92043-1303

$3.90

92055

RING-O,MASTER CYLINDER

92055-1251

Unavailable

92144

SPRING

92144-1434

Unavailable

550

PIN COTTER 2.0X15

550D2015

$1.04
