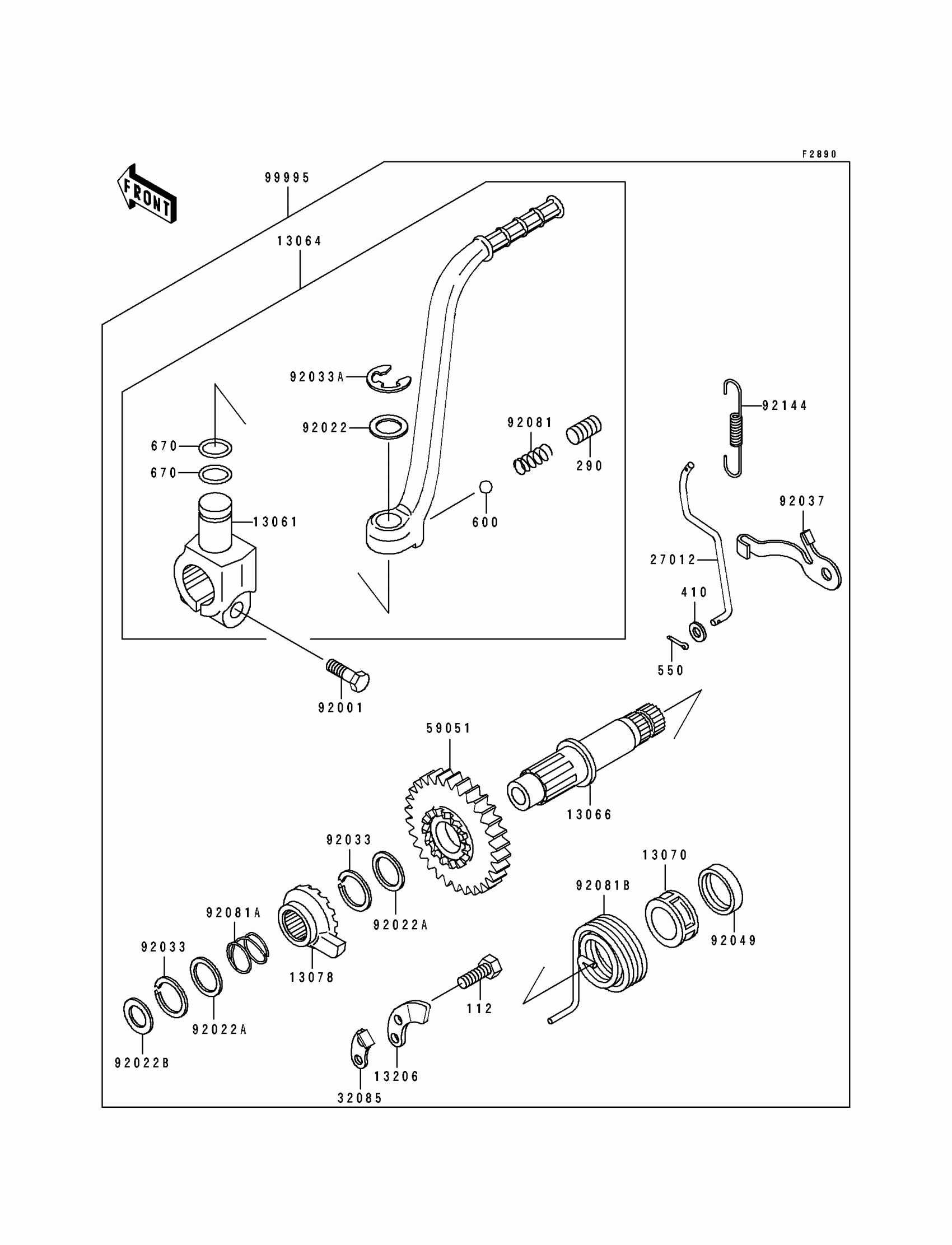

Kawasaki Tengai Optional Parts Diagram
#
Description
Price
13061
BOSS,KICK PEDAL
13061-1106
Unavailable
13064
LEVER-ASSY-KICK,PEDAL
13064-1133
Unavailable
13066
SHAFT-KICK
13066-1058
Unavailable
13070
GUIDE,KICK SPRING
13070-1106
Unavailable
13078
RATCHET
13078-1051
Unavailable
13206
GUIDE-KICK
13206-1051
Unavailable
27012
HOOK
27012-1383
Unavailable
32085
STOPPER,KICKSTARTER
13072-014
$11.60
59051
GEAR-SPUR,KICK
59051-1142
$138.06
92001
BOLT,8X28
92001-1042
$6.69
92022
WASHER,15.2X20X1
92022-1019
$5.23
92022A
WASHER,25.3X30X0.5
92022-159
$8.58
92022B
WASHER,20.5X25.5X0.5
92022-252
$6.22
92033
RING-SNAP,24MM
92033-026
$8.79
92033A
RING-SNAP,10MM
92033-1166
$3.89
92037
CLAMP
92037-1938
Unavailable
92049
SEAL-OIL,SC22325
92049-1048
$8.86
92081
SPRING,KICK PEDAL
92081-020
$4.26
92081A
SPRING
92081-097
$11.80
92081B
SPRING,KICKSTARTER
92082-003
$28.46
92144
SPRING,REAR BRAKE SWITCH
92144-1143
$8.96
99995
KIT.,KICKSTARTER
99995-1007
$203.89
112
BOLT-UPSET
112G0618
$1.01
290
SCREW-SET-SOCKET,8X8
290Q0808
$4.78
410
WASHER PLAIN 4MM
410B0400
$0.48
550
PIN COTTER 2.0X15
550D2015
$1.04
600
BALL-STEEL,1/4
600A0800
$0.62
670
O RING,15MM
670B2015
$1.42
